PMW 6440
40” Open Frame Widescreen LCD Monitor

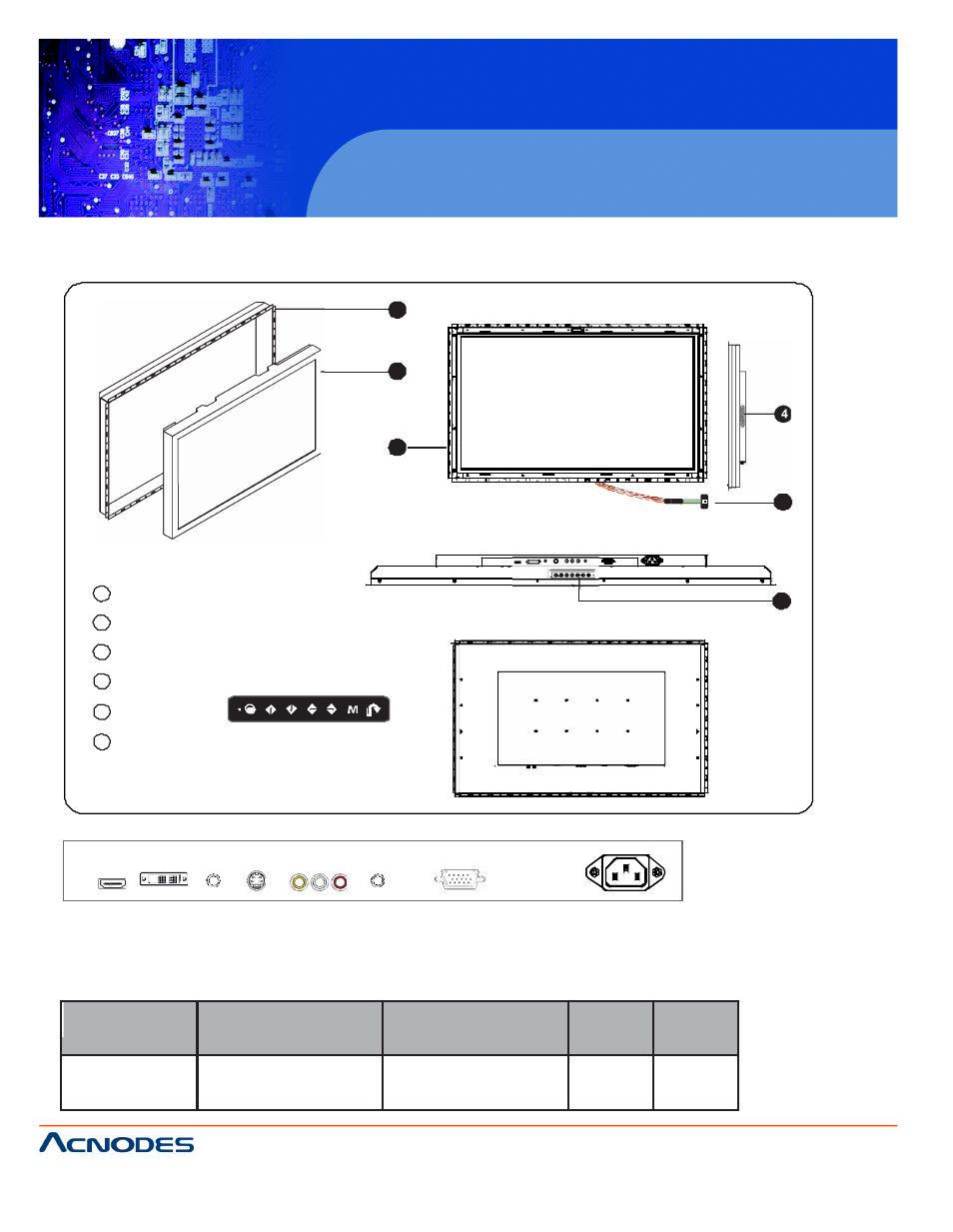

< 1.2 > Structure Diagram-PMW6440
1
Front view
2
OP-W40
4
3
6
Bottom view
1
Rear case
2
LCD panel
3
Universal open frame mounting
4
Audio speaker, pair
5
LCD membrane
6
Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
5
Rear view
HDMI
DVI-D
Audio S-Video
R C A
Audio
VGA
Power
in
out
Standard I/O
: HDMI, DVI-D, Audio, S-Video + RCA, VGA
Options I/O
: TV
SDI or MCS ( either one )
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
PMW6440
986 x 71 x 599 mm
38.8 x 2.8 x 23.6 inch
1150 x 273 x 735 mm
45.3 x 10.7 x 28.9 inch
45 kg
99 lbs
60 kg
132 lbs
