Acnodes KD 8172 - Manual (Page 5)

< Part 1 >
< 1.1 > Package Content
KD81 72/ KD8190 unit X 1
- 6f t Combo KVM cable X 1
- Power cord X 1
- M6 s crew, ca ge nu t & cup w asher X 8
The above package content is only f or the single console models.
It varies with options such as KVM, HDMI, DVI-D, AV, audio & DC power.

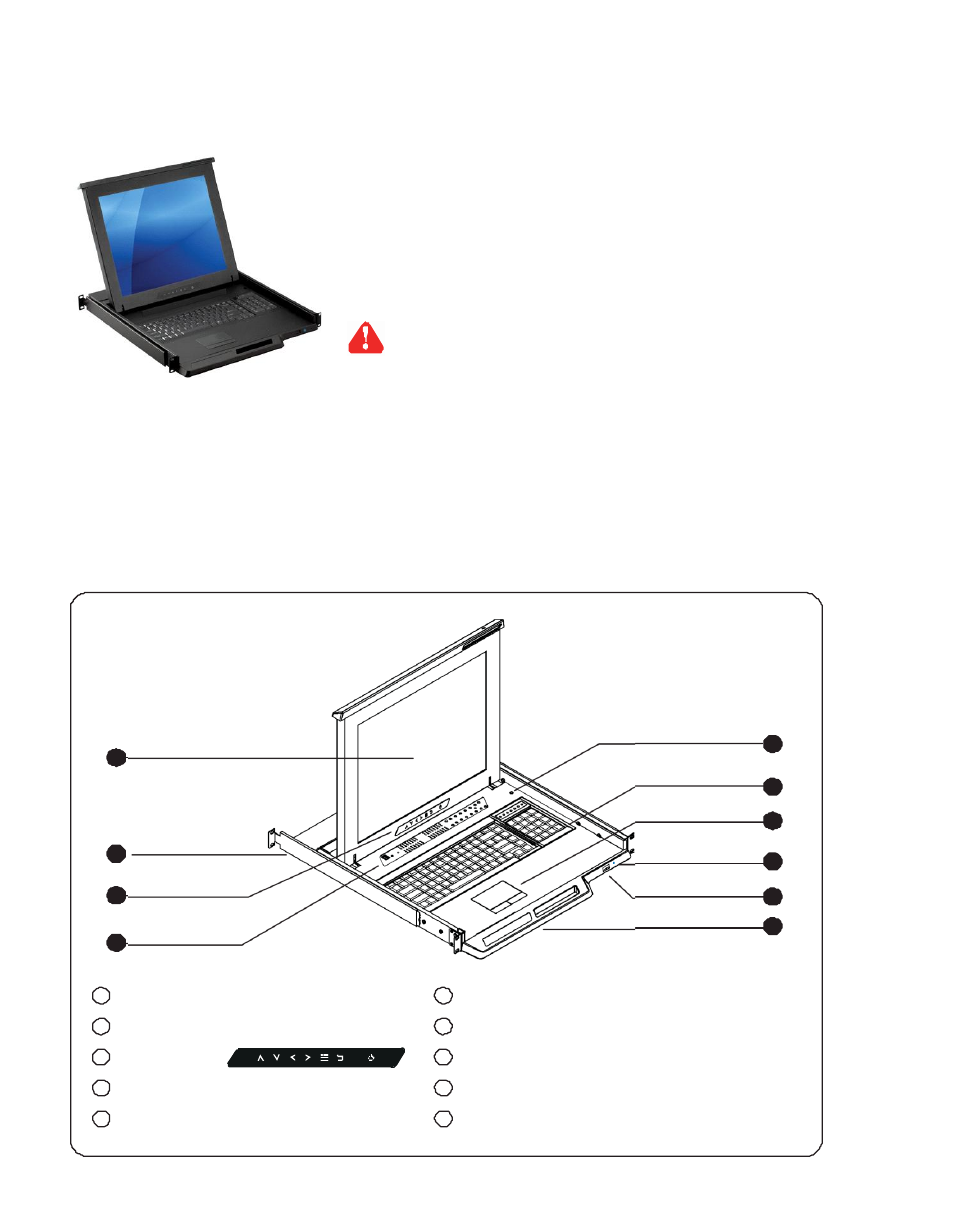

< 1.2 > Structure Diagram
5
1
6
7
2
8
3 9
4
1 LCD interchangeable module kit
2 Installation Slid es
3 LCD memb rane
4 Membra ne switch (KVM option)
5 Micro switch for screen auto power off
10
6 Keyb oard interchangeable mod ule kit
7 Mouse interchangeable module kit
8 Blue Power LED
9 Front USB port for device access ( USB Hub KVM only )
10 Molded front handle
