1.3

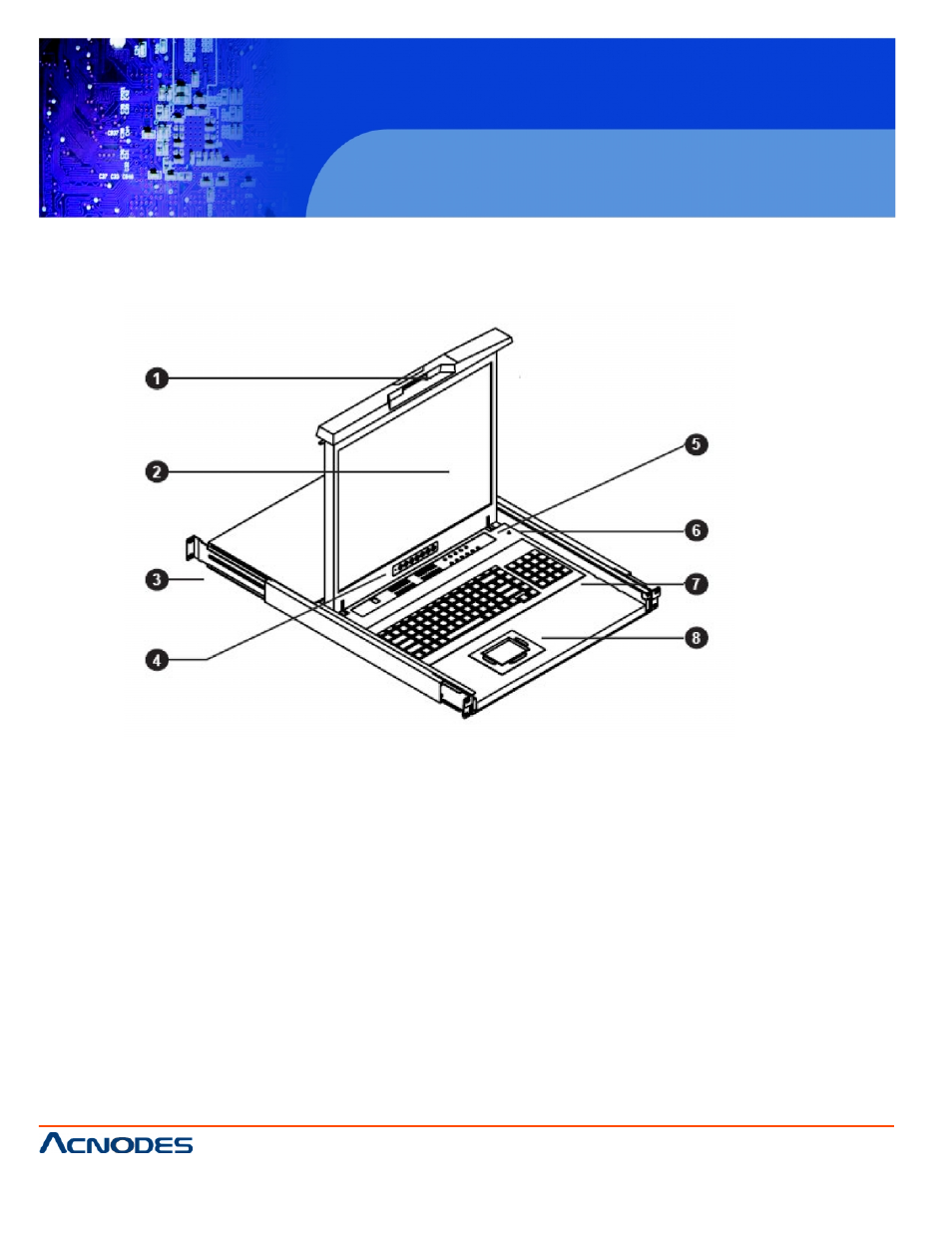

Diagram
1. Carry handle to release the 2-pt lock
2. LCD interchangeable module kit
3. “One Man” Installation Slides
4. LCD membrane
5. Membrane switch (KVM option)
6. Micro switch for screen auto power off
7. Keyboard interchangeable module kit
8. Mouse interchangeable module kit
1.4 Diagram
4
