APH 8190
19” Industrial Panel Mount Monitor
1000-nit High Brightness LCD

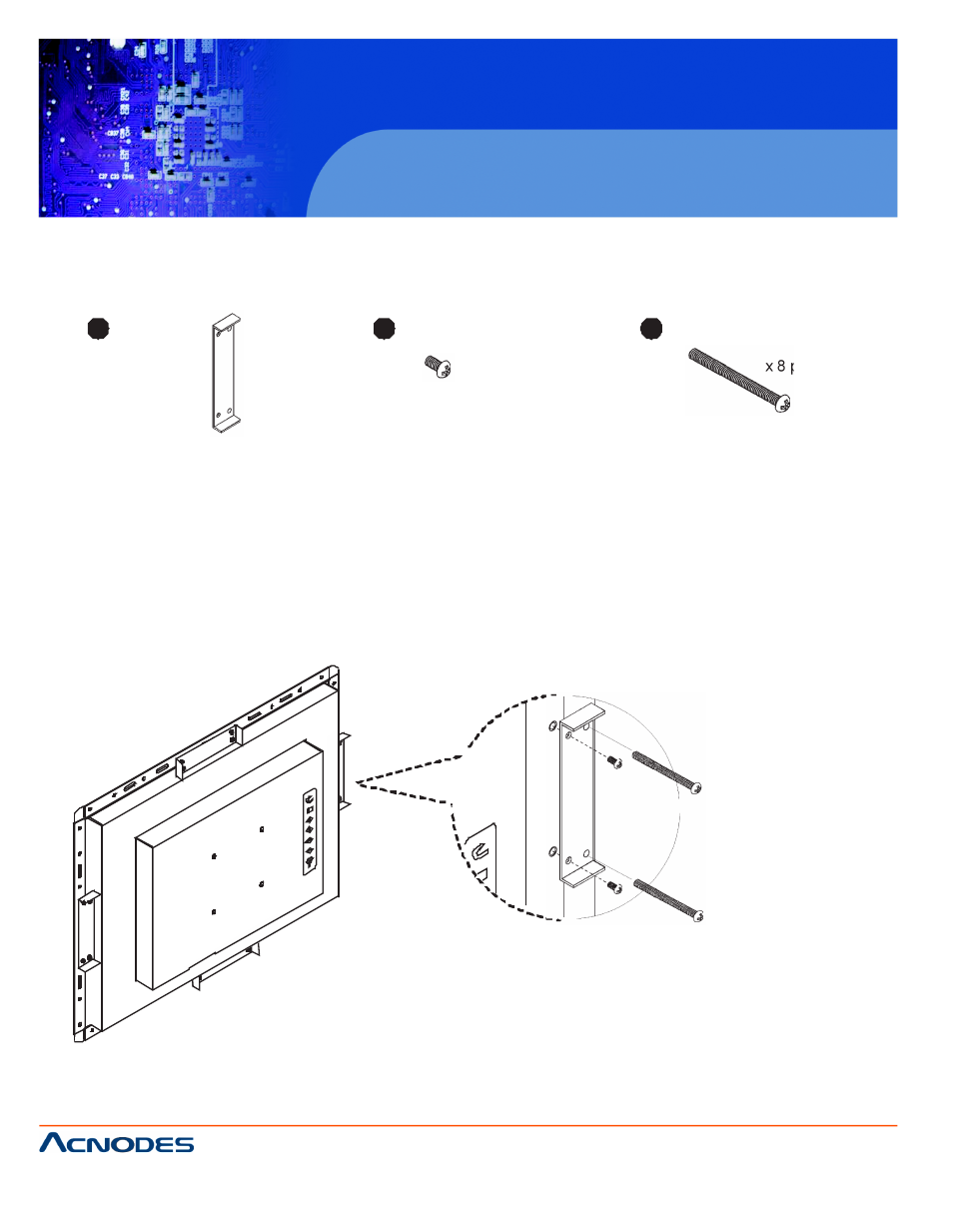

< 1.3 > Panel Mount Installation - APH8190
1
Mounting
bracket
x 4 pcs
2 M4*6mm screw
x 8 pcs
3 M4*50mm screw
x 8 pcs
Hardware set part no. UV-BK#2
Steps
¦
Install 4 mounting brackets with 8 x M4*6mm screws
¦
Adjust the LCD panel with 8 x M4*50mm screws and fix it on the surface.
