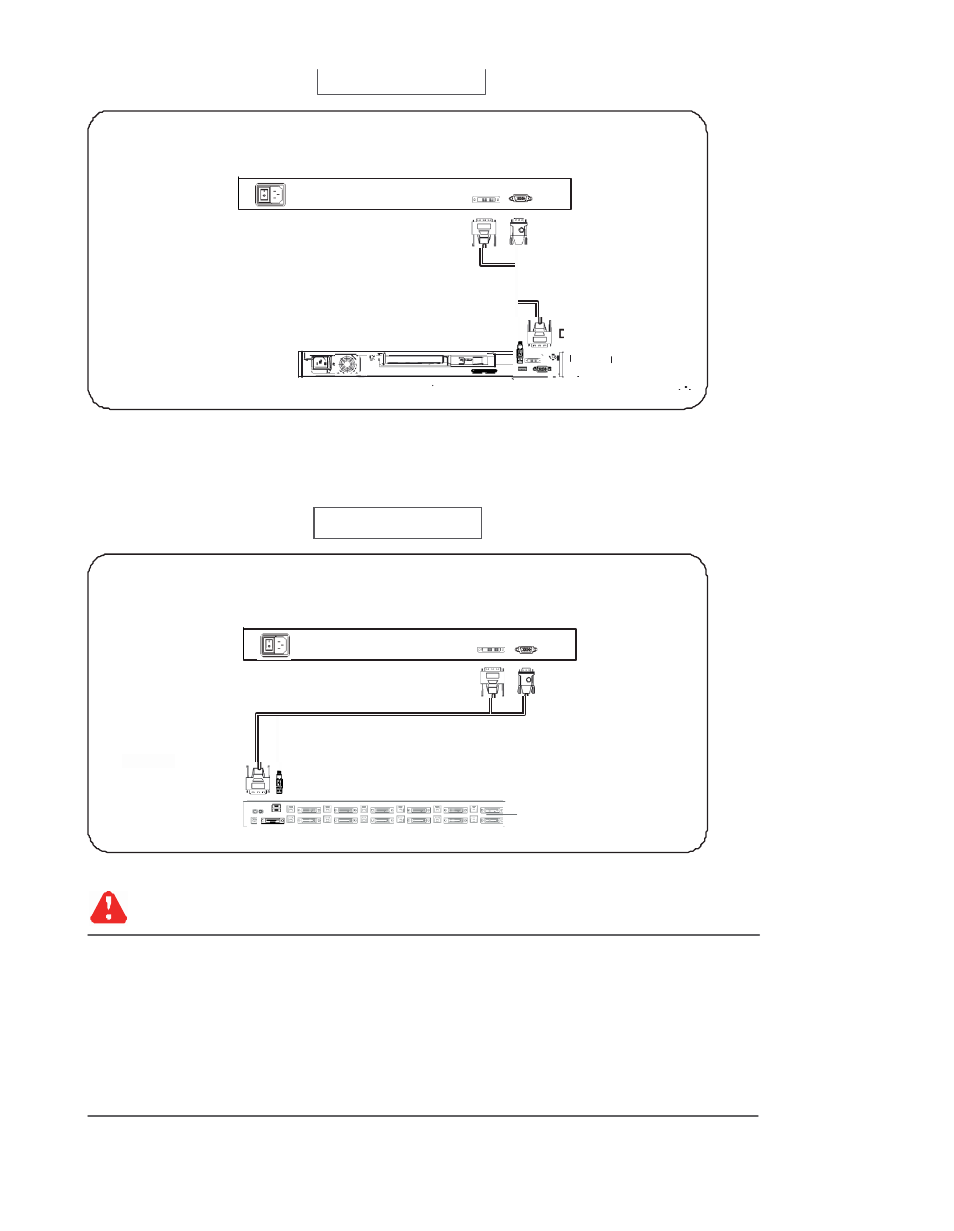

< 1.4 > Connection to USB Server via CX-6 cable
D
LCD Console Drawer
Power DVI-D KVM
CX-6 DVI-D
console cable
USB server
USB VI-D
< 1.4 > Connection to external KVM via CX-6 cable
LCD Console Drawer
Power DVI-D KVM
CX-6 DVI-D
console cable
DVI-D USB
DVI console KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible dam age to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
