1.11 How to Install "One Man" Installation Slides
Chapter 1

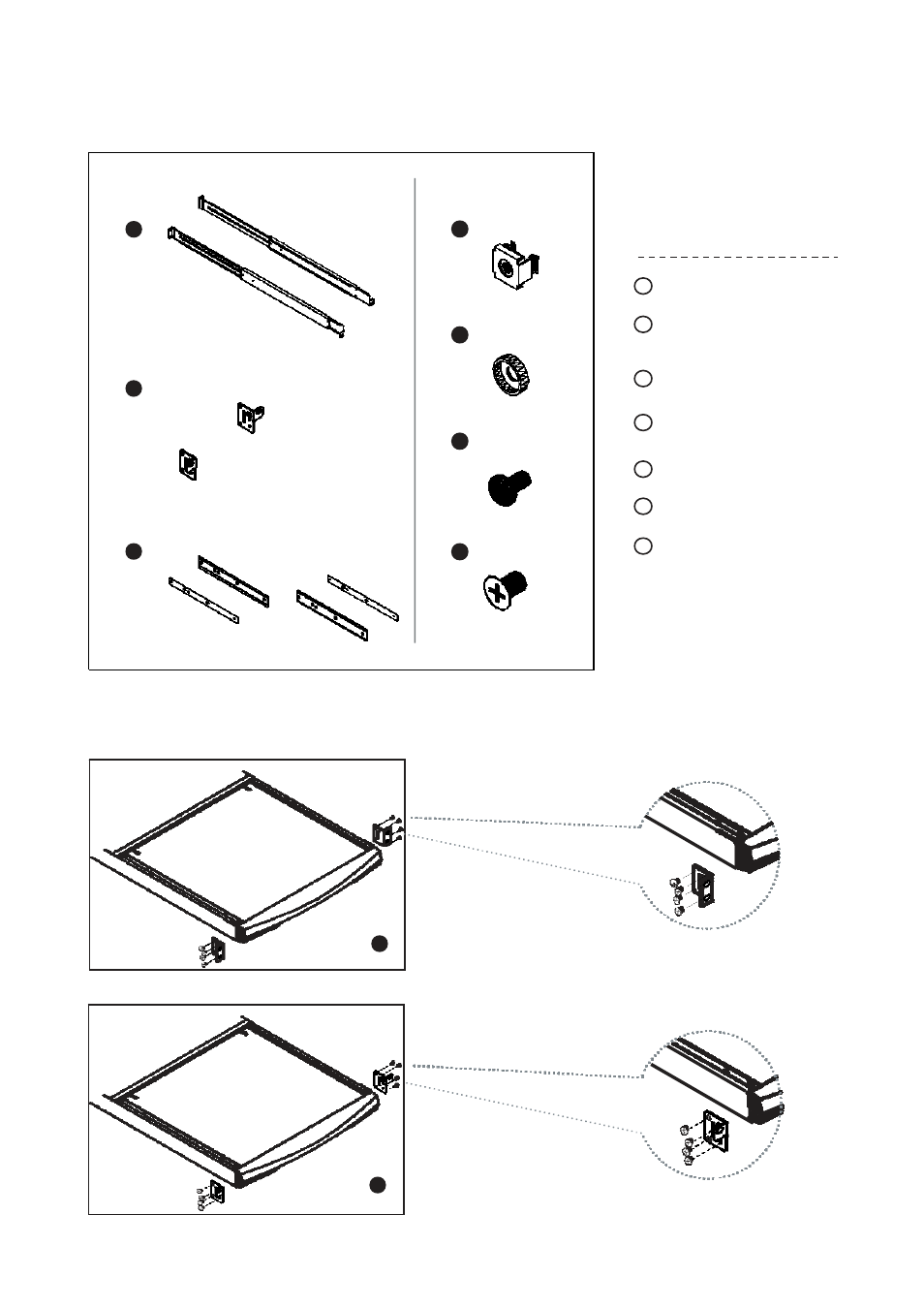

Package Contents
1 4
Model No : NBK-01
1 Mounting bracket x 2 pcs
2
5
2
3
4
6
5
6
3 7
7
Front mounting ear (left &
right) x 2 pcs
Support bracket x 4 pcs
M6 cage nut x 8 pcs
M6 washer x 8 pcs
M6*15mm screw x 8 pcs
M3.2*4.5mm screw x 14 pcs
Install the Front Mounting Ear x 2 pcs
1
■
Disassemble the standard front mounting ears carefully.
2
■
Install the optional front mounting ears with M3.2*4.5mm screw x 8 pcs.
