Pmw 6170, Op-x17, 17” open frame widescreen lcd monitor – Acnodes PMW 6170 User Manual
Page 6: Front view, Rear view
14628 Central Ave,
Chino, CA 91710
tel:909.597.7588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at .
PMW 6170
17” Open Frame Widescreen LCD Monitor
P.1
UM-UV-X17-Q312V5
www.austin-hughes.com

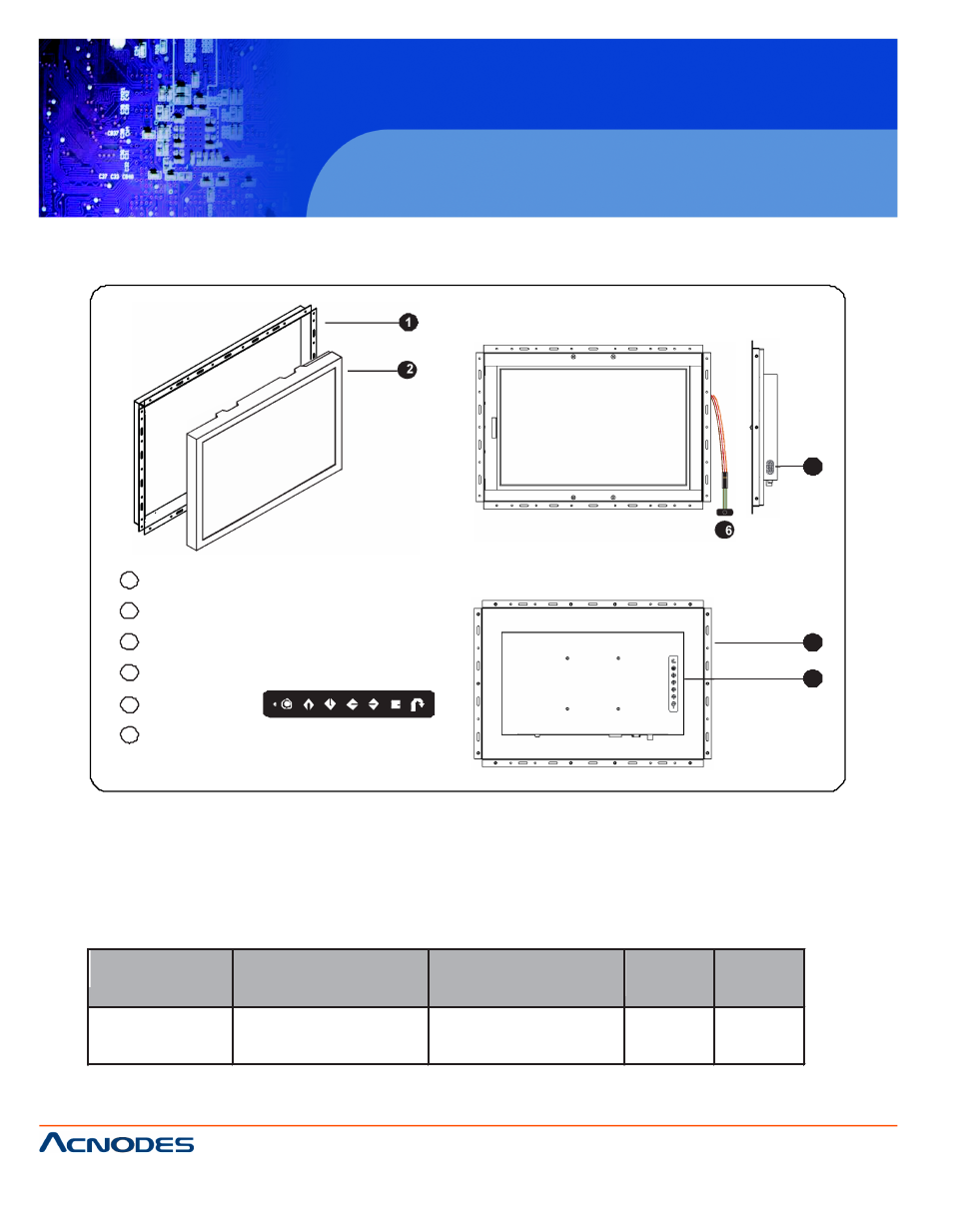

< 1.2 > Structure Diagram - PMW 6170
1
Front view
2
OP-X17
3
6
1
Rear case
2
LCD panel
3
Audio speaker, pair
4
Universal open frame mounting
5
LCD membrane
6
Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
Rear view
4
5
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
PMW6170
466 x 51 x 328 mm
18.3 x 2 x 12.9 inch
615 x 113 x 523 mm
24.2 x 4.4 x 20.6 inch
3.7 kg
8.1 lbs
6.2 kg
13.6 lbs
