< Part 1 >
< 1.1 > Package Content

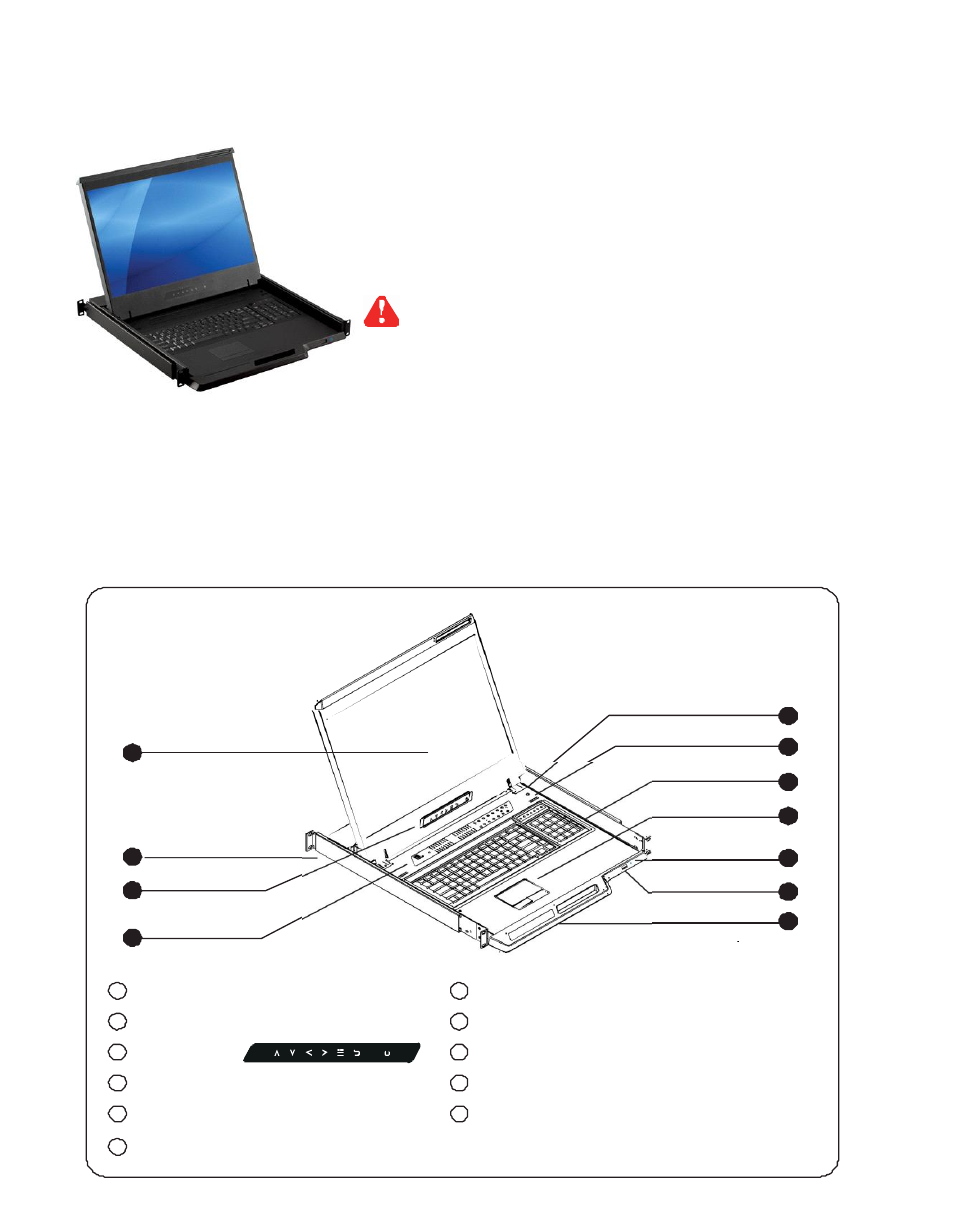

< 1.2 > Structure Diagram
KD W8190 unit X 1
- 6ft DVI-D cons ole cable X 1
( Alternative : 6ft VGA console cable )
- Power cord X 1
- M6 screw, cage nut & cup wash er X 8
The above package content is only for the single console models.
It varies with options such as KVM , SDI, HDMI, AV, audio & DC power.
5
1
6
7
8
2 9
3 10
4
1 LCD interchange able mo dule kit
2 Installation Slides
3 LCD membrane
4 Membrane switch (KVM option)
5 Micro switch for screen auto power off
6 Audio speaker ( for HDMI or Audio option )
11
7 Keyboard interchangeable module kit
8 Mouse interchangeable m odule kit
9 Blue Power LED
10 Front USB port for device access ( USB Hub KVM only )
11 Molded front handle
