FPC7919

Fanless 19-inch touch panel PC

Atom N270 1.6GHz all-in-one system

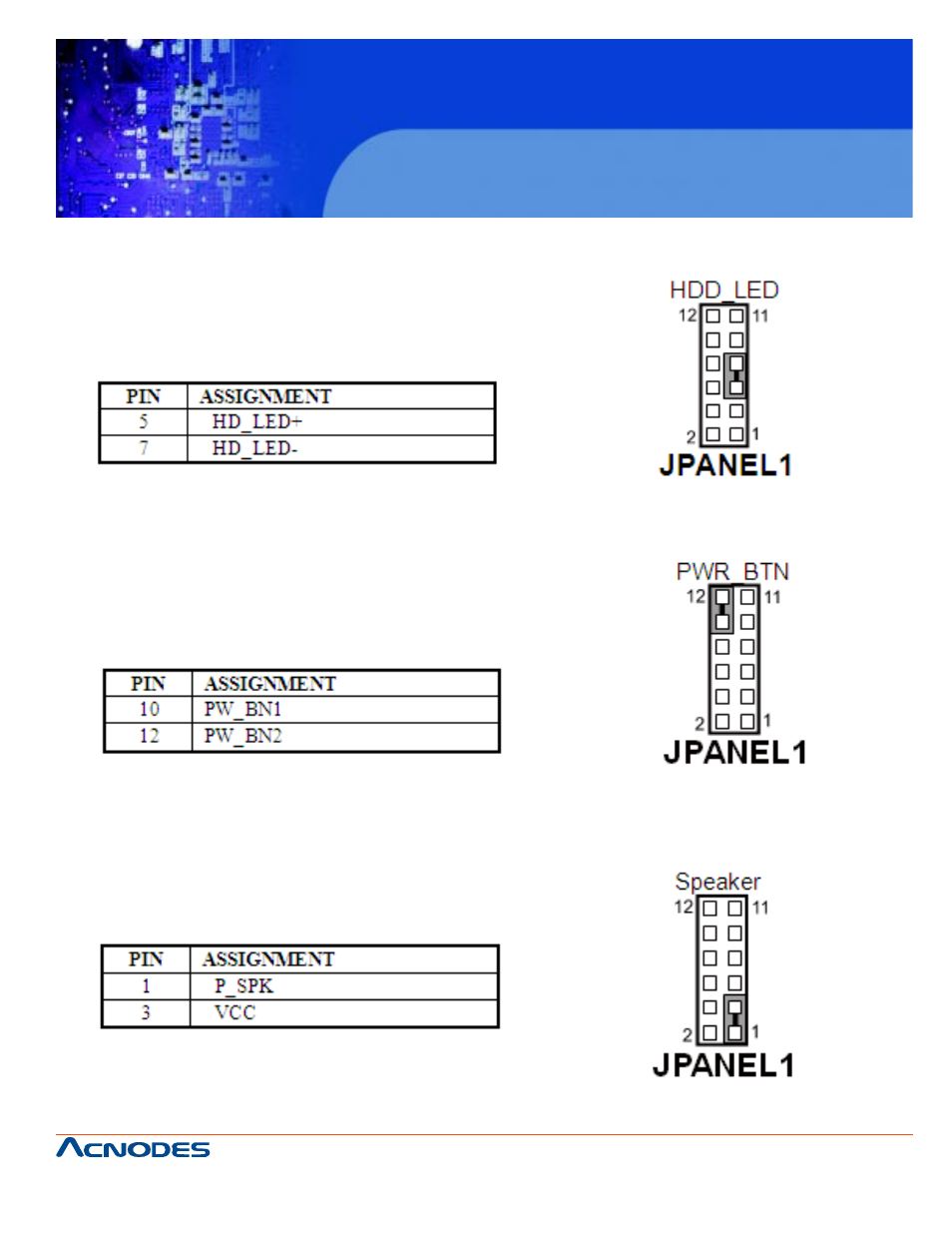

2-10. HARD DISK DRIVE LED CONNECTOR

JPANEL1 (5, 7): Hard Disk Drive LED Connector

The selections are as follows:

2-11. ATX POWER BUTTON

JPANEL1 (10, 12): ATX Power Button

The selections are as follows:

2-12. EXTERNAL SPEAKER CONNECTOR

JPANEL1 (1, 3): External Speaker Connector

The selections are as follows:
