APM 5150
15” Industrial Panel Mount LCD

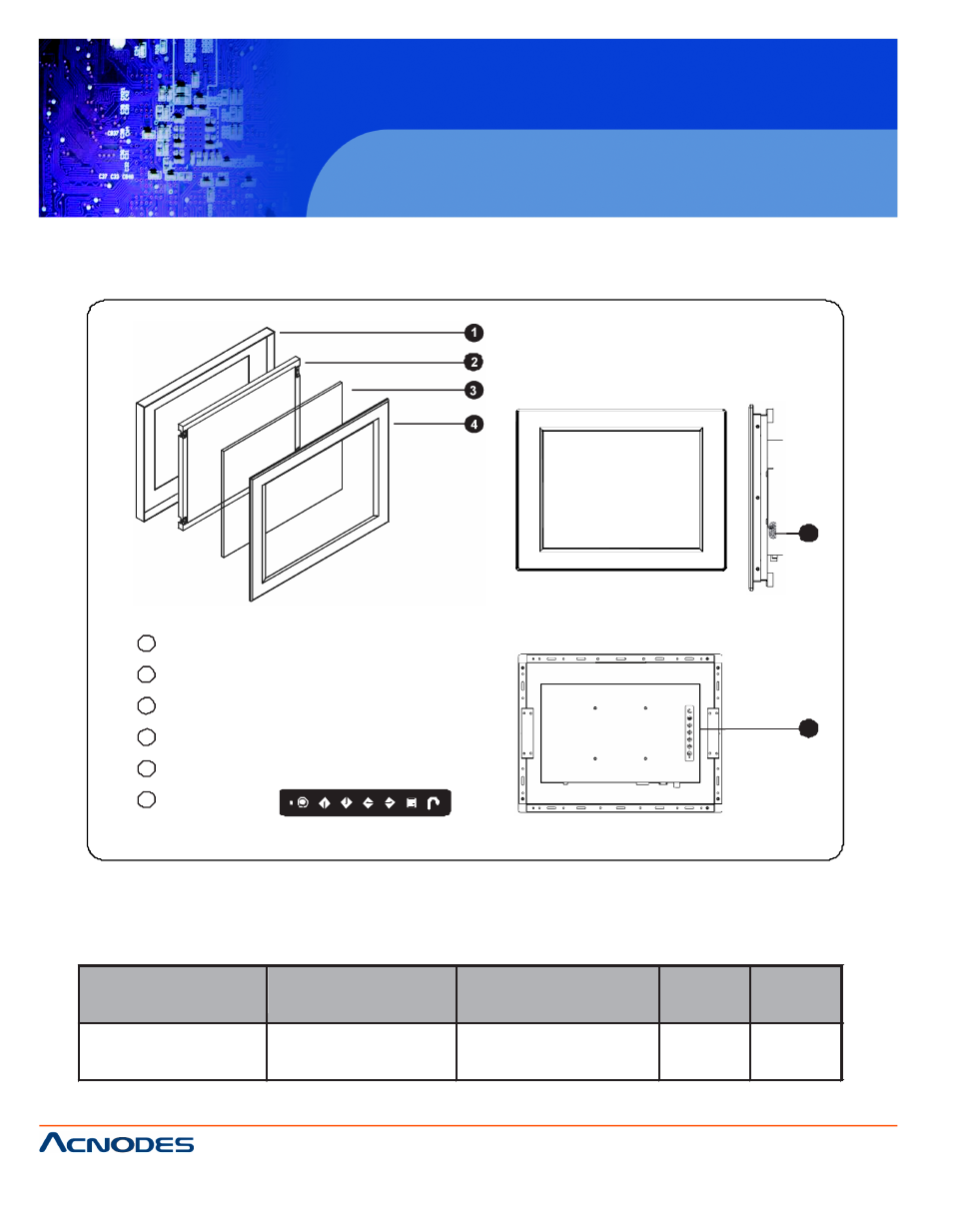

< 1.2 > Structure Diagram - APM 5150
1
2
3 Front view
4
AP-15
NAP-15
5
1 Rear case
2 LCD panel
3 Protective 3mm glass
4 6mm aluminum front bazel
5 Audio speaker ( for Audio or TV option )
6 LCD membrane
Rear view
6
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
APM5150 407 x 59 x 314 mm
16 x 2.3 x 12.3 inch
615 x 113 x 523 mm
25.6 x 4.9 x 23.5 inch
3.5 kg
7.7 lbs
5.5 kg
12.1 lbs
