APW 5240
24” Industrial Panel Mount Widescreen LCD

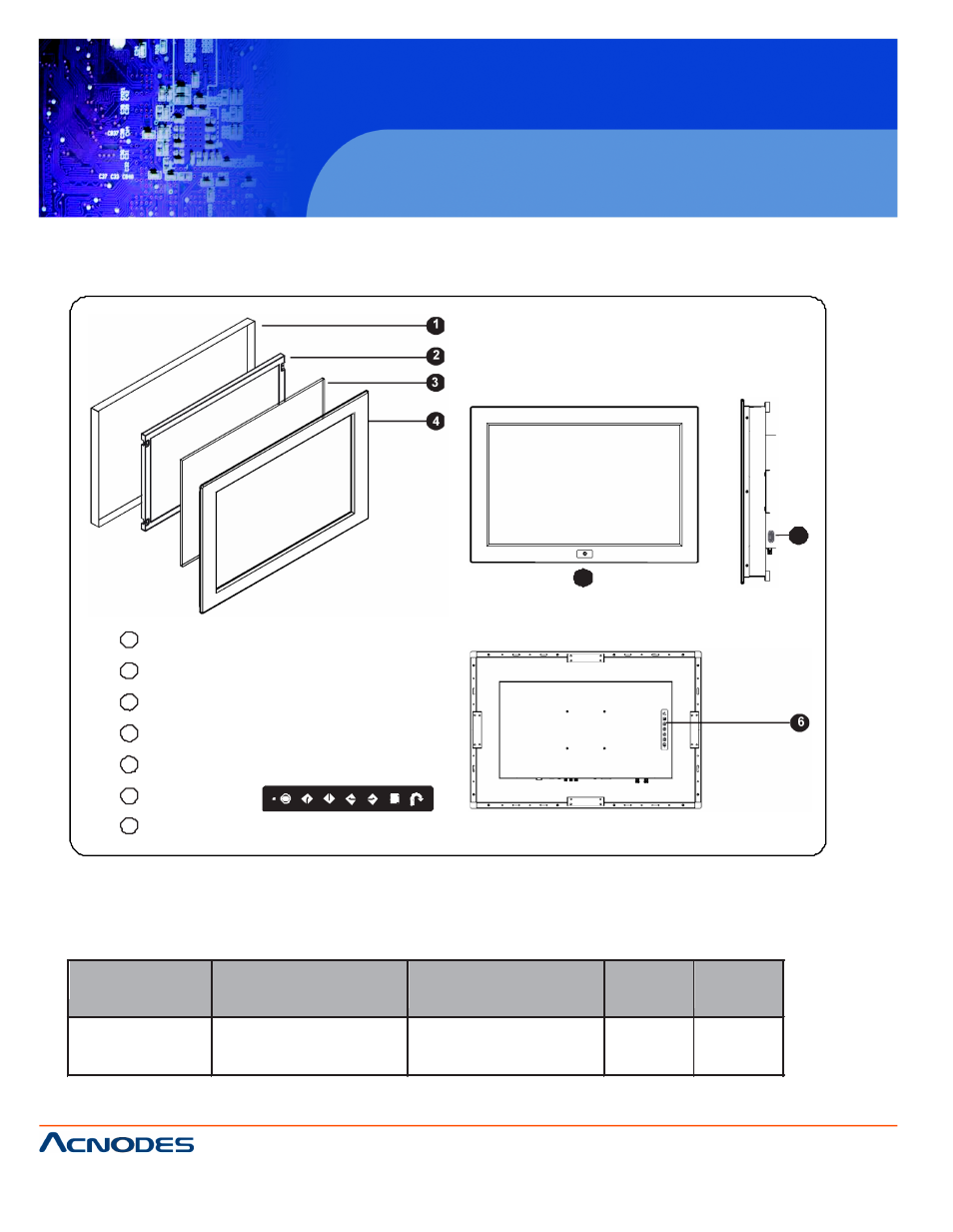

< 1.2 > Structure Diagram - APW 5240
1
2
3
Front view
4
AP-X24
NAP-X24
5
7
1 Rear case
2 LCD panel
3 Protective 3mm glass
4 6mm aluminum front bazel
5 Audio speaker, pair
6 LCD membrane
7 Remote sensor
Rear view
6
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
APW5240 620 x 87 x 426 mm
24.4 x 3.4 x 16.8 inch
701 x 138 x 685 mm
27.6 x 5.4 x 27 inch
10 kg
22 lbs
14 kg
31 lbs
