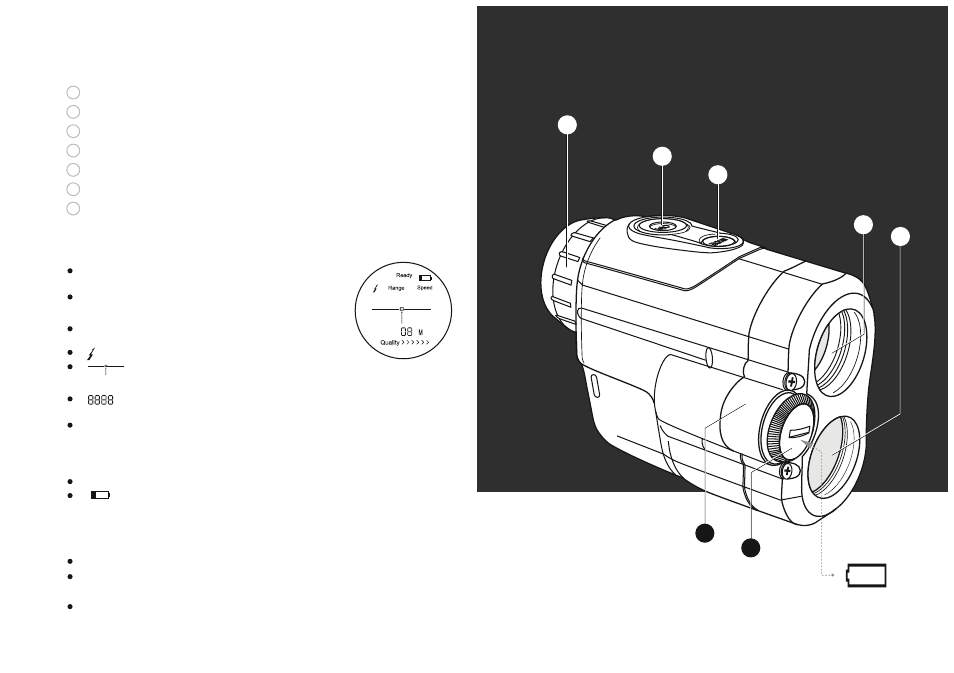

External appearance and controls

Lens/Emitter

Signal receiver

Eyepiece

“ON” Switch

“Mode” Switch

Battery compartment

Battery cap

Reading the LCD display

“Ready” – indicates that the unit is ready for
use.
“Range” – range measurement function is
activated.
“Speed” – speed measurement function is
activated.
“ ” – indicates laser signal transmission.
“ ” – target indicator. Aiming mark –
centre this over a target.
“ ” – distance is shown in four digits. In
case of error four dashes show up “----”.
“KM/h” – indicates speed (kilometers per
hour), “M/S” (meters per second). Indications
“M” (meter) and “Y” (yard) are used in range
measurement mode.
“Quality >>>>> ” – target quality indicator.
“ ” – low battery indicator.

Battery installation

Unscrew the battery cap counterclockwise (7).
Insert a CR2 battery observing polarity shown in the battery
compartment (see diagram on page 2).
Replace the battery cap, screwing it on clockwise. Do not
overtighten.

CR2/3V
