JUNCTION BOX 1 JUNCTION BOX 1
TO PANEL
1. DMX OUT +
2. DMX OUT -
3. DMX IN +
4; 5. GND
6. DMX IN -
7; 8. +12V
CAUTION
Before Opening
N'ouvrez Pas:
Warning:
Risk Of Electric Shock Disconnect Input Power
risque De Choc Electrique
This Apparatus Must Be Earthed
Made in P.R.C.
RoHS DMX OUT DMX IN
GND D- D+ GND D- D+
AC 230V~ 50Hz
IN
E N L
THRU
E N L

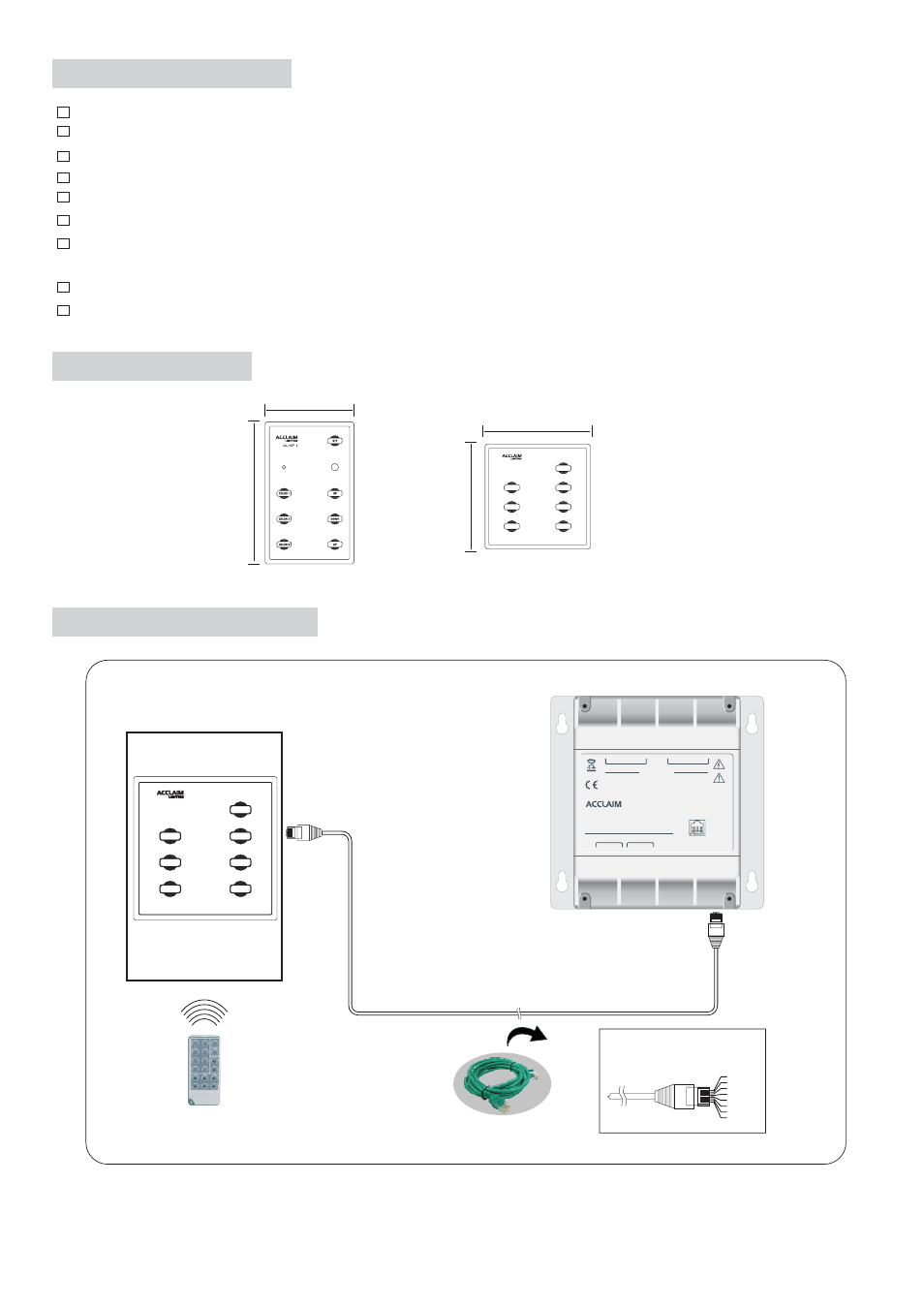

6.System Connection Diagram
4.Technical Specifications
Operation temperature
Power Requirement
Ingress Protection Rating
Control Protocol
Listing
Dimensions
Weights
-10 degC to +50 degC
Junction Box 1(black or white for option)
DMX-512 (1990)
CE certified
US:112(L) x 70(W) x 45(H)mm
EU: 86(L) x 86(W) x 45(H)mm
Approx. 700g(Full Packing)
Connection RJ45 interface
IP20
1
12mm
70mm
86mm
86mm
C-LAN cable
1. DMX OUT +
2. DMX OUT -
3. DMX IN +
4. GND
5. GND
6. DMX IN -
7. +12V
8. +12V
PIN-CONNECTION of RJ45 Interface
Remote Control
US version EU version
-Page 2-
NOTE:
Effective distance from the infrared sensor of AL-KP II to Infrared Remote shall be limited within the range of 10m.
Otherwise, it results out of control.
Red Cyan OFF
Magenta Green
AP
Yellow Blue
Amber White Fade Brightness
Green Red Blue
Red Cyan OFF
Magenta Green
AP
Yellow Blue
Amber White Fade Brightness
Color 1 Color 2 Color 3
AL-KP II Remote Controller
AL-KP II-E AL-KP II-E
COLOR 1 COLOR 1
COLOR 3 COLOR 3 OFF
UP
DOWN
AP COLOR 2 COLOR 2
AL-KP II-E
COLOR 1
COLOR 3 OFF
UP
DOWN
AP COLOR 2
5.Physical Dimensions
Packing 1 AL-KP II, 1 Junction Box 1,1 Remote Controller & 1 User Manual
