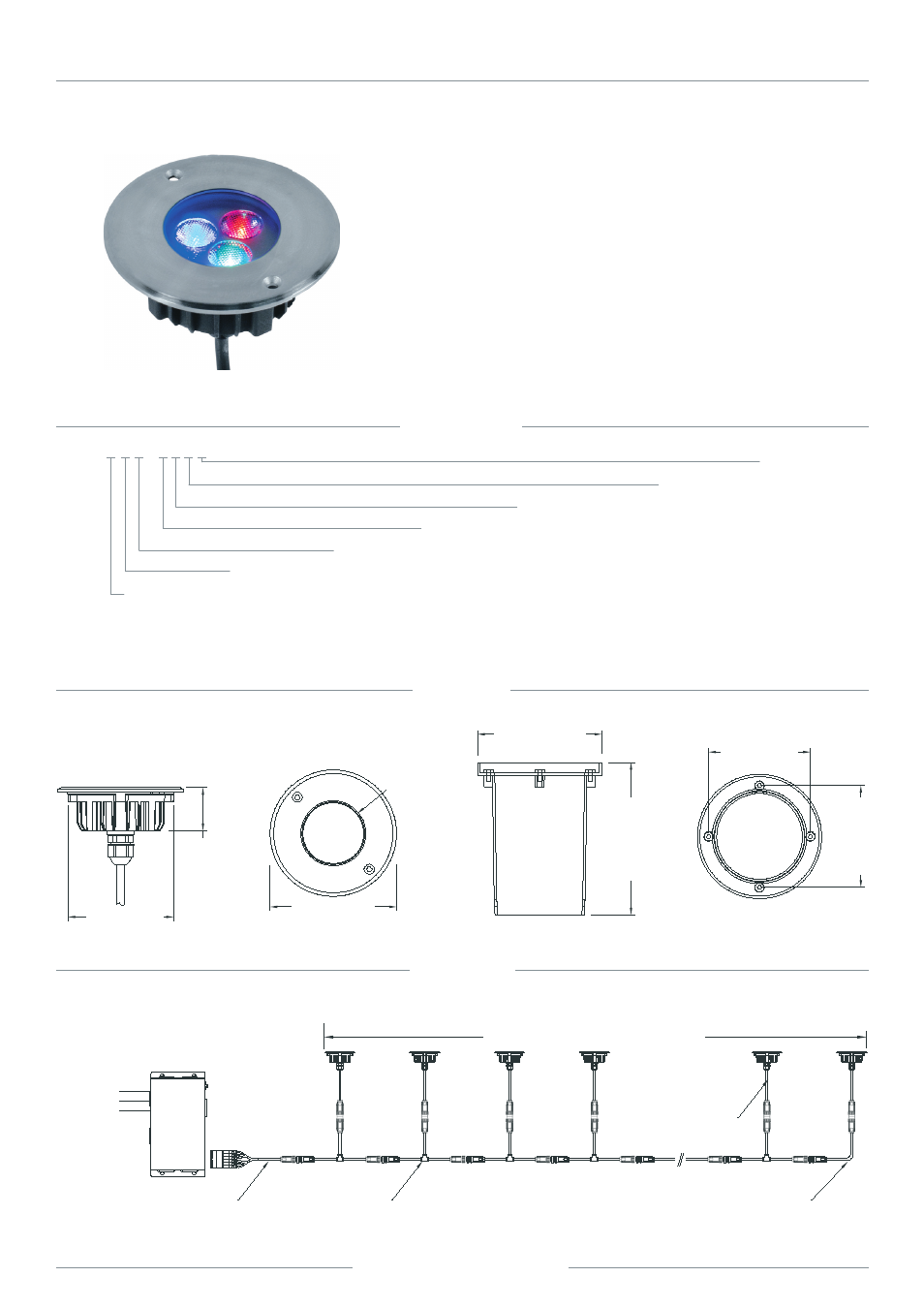

Acclaim Lighting Inground Lite CC, IP67 - Manual (Page 2)

Control:
1 = Not Applicable
Inground Light CC (IP67)
System
Max. in Chain
Cabling System
Control
DMX Channels
Addressing DMX
Power requirements
LED Current
Light Source
Power Consumption
Weight
Housing
Listing
Source Life
Operating Temp.
Storage Temp.
Including
Constant Current (6-Wire)
6 pcs
6-wire DC + 6-Pin IP67 Waterproof Conn.
X-Power HP Pro 350mA
Controled by 3 DMX Channels
-
-
700mA Max
3 x 3W Cree LED
9W
0,7 kg
Aluminum /stainless steel 316L bezel
CE Certified
50.000 hours at 70% lumen maintenance
-10 °C ~ +50 °C
-20 °C ~ +70 °C
Input cable with 6-Pin IP67 Waterproof
connector
- x x x - x x x x
Version:
N = Normal
Color:
A
C
E
G
H
N
P
Q
R = WW 2700k
= WW 3200k
= NW 4000k
= CW 6000k
= RGB
= Red
= Green
= Blue
= Amber
Beam angle:
C
D
F
H
LED Config:
A = 3 LEDs
Cover:
1 = Clear
Housing:
6 = Stainless steel
ILA
Ø103mm [4.1 in]
126mm [5.0 in]
84mm [3.3 in]
84mm [3.3 in]
Inground Sleeve
∅52mm [
∅2.0 in]
36mm [1.4 in]
105mm [4.1 in]
88mm [3.5 in]
Outdoor Fixtures
www.acclaimlighting.eu
Model number
Dimensions
** All rights reserved. Improvements changes to specifications, design, and all contents in this catalog may be made at any time without prior notice.
ACCLAIM
LIGHTING
= 10°
= 15°
= 25°
= 40°
max. 6pcs. Inground Light CC per output
X-Power HP pro
24V, 350 mA
6 outputs RGB
DMX 512 in
100 / 240V AC in
DMX 512 out
Inground Light CC
6 pin WP T-cable 6 pin WP link cable
6 pin WP leader cable
standard 200mm (0.65 ft)
6 pin WP First cable
Wiring diagram
