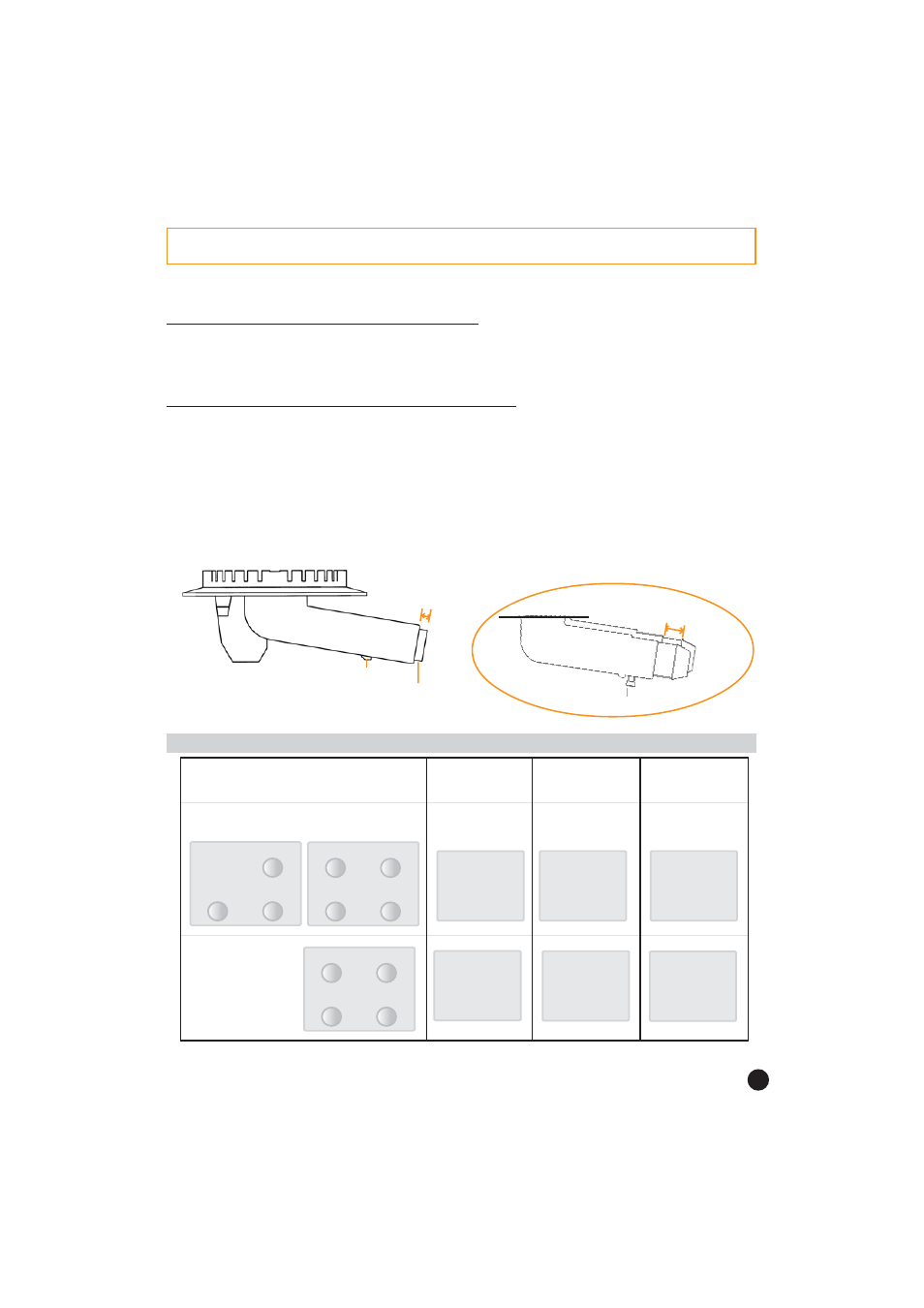

• SETTING THE APPEARANCE OF THE FLAME
1. Regulating the air ring on the hob burners : the setting is important as it ensures the
correct combustion and enables the burners to work at maximum efficiency. The table
refers to the value "X" in mm ; it may be necessary to regulate this by plus or minus 1 mm
to obtain a perfect flame.
2. To gain access to the air rings on the hob burners: remove the pan support, the burner
cap and body of the relevant burner. The air ring is located at the lengthening of the burner
unit which is fixed by a screw (see drawing).
If necessary :
. unscrew the screw that holds the air flow adjuster,
. set the correct distance according to the air adjuster protrudes,
. secure the screw when the operation is completed.
INSTALLATION: "GAS CONNECTION"
Quota
X
Air ring
A i r
ring
Semi-fast burner 1,45 kW
or Fast burner 2,5 kW
Fast burner 3,2 kW and
Fast double ring 3,2 kW
Quota
X
Quota "X" in mm of the air ring according to the gas setting
Screw
Screw
G20-20 mbar
G25-25 mbar
G30 28-30 mbar
G31 37 mbar
6
10
14
6
6
10
15
6
0
0
0
0
7
9
14
7
0
0
0
0
7
9
15
7
Fast
Semi-fast
Fast
Semi-fast
Double
ring
Semi-fast
Fast
Semi-fast
Fast
Fast
Semi-fast
PA - PSA 640/2
PLA - PLAS 640
PLA 631
PLDA 640
PLDAS 640
