Page 232
The trailer jumper harness is used to
install the controller for the electric
trailer brakes. For more information,
see
on page
.

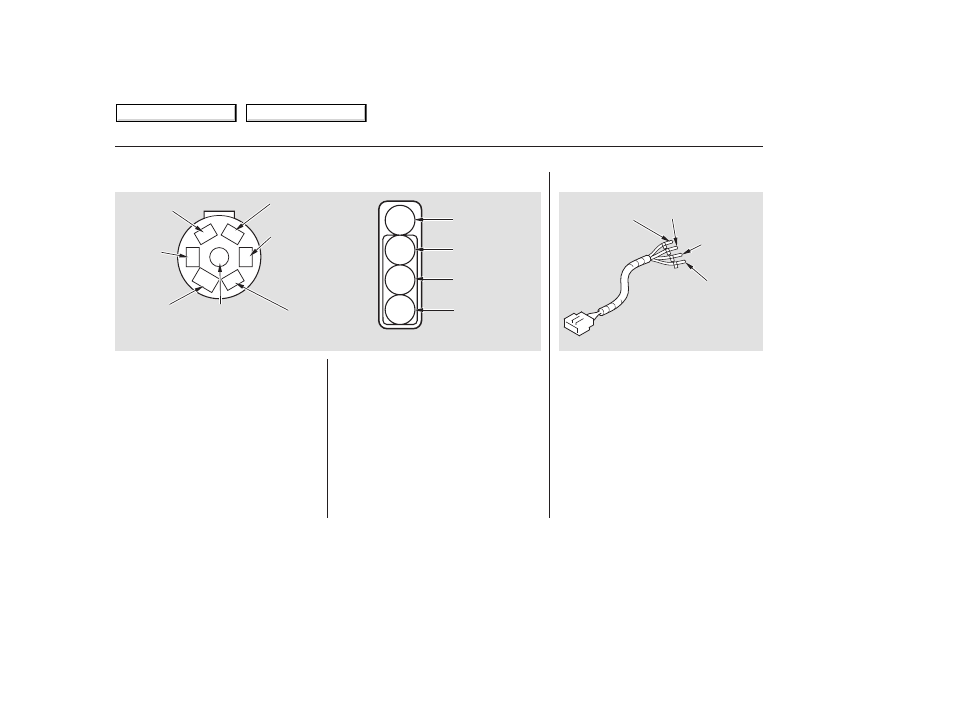

Refer to the above illustrations for
wiring information.
222
Trailer Connector Sockets
Trailer Brakes
Trailer Jumper Harness
Towing a Trailer
228
7-PIN TRAILER SOCKET
ELECTRIC
BRAKE
(BLUE)
SMALL
LIGHT
(GREEN)
B
CHARGE
(BLACK)
BACK LIGHT
(YELLOW)
GROUND
(WHITE)
GROUND
(WHITE)
GROUND
(BLACK)
ELECTRIC BRAKE
(BROWN/WHITE)
BRAKE
(20A)
(WHITE)
LEFT TURN/
STOP
(YELLOW)
RIGHT TURN/
STOP
(GREEN)
SMALL LIGHTS
(BROWN)
LEFT
TURN/
STOP
(RED)
4-PIN TRAILER SOCKET
BRAKE LIGHTS
(WHITE/BLACK)
RIGHT
TURN/
STOP
(BROWN)
2008 Ridgeline
