SERVICE INFORMATION SRM-2655SI
6
a
1.5
1.65
1.3
0.4
20 20
40 40
60 60
80 80
120 120
140 140
160 160
180 180
20 20
100 100
EC HO

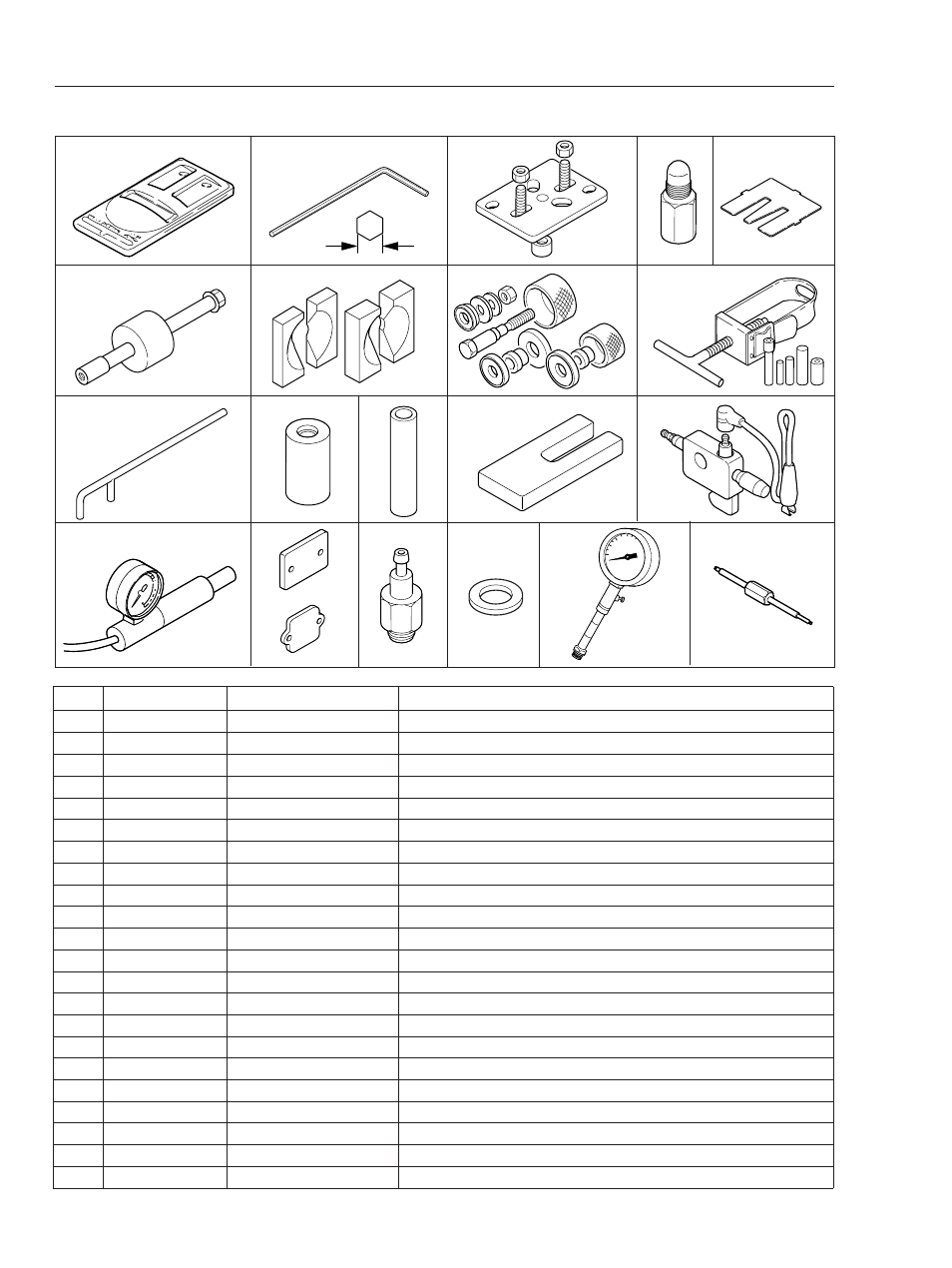

Key Part Number Description Used for:
1 897801-33330 Tachometer PET-1000 Measuring engine speed
2 895612-79920 L-hex wrench (3 mm) Removing and installing hex. socket bolts (M4)
3 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolts (M5)
4 897501-03938 Puller Removing flywheel
5 897537-12930 Piston stopper Locking crankshaft rotation
6 897563-19830 Metering lever gauge Measuring metering lever height on carburettor
7 897603-23030 PTO shaft puller Removing driven (PTO) shaft
8 897701-06030 Bearing wedge Removing ball bearings on crankshaft
9 897701-14732 Bearing tool Removing and installing crankcase ball bearings
10 897702-30131 Piston pin tool Removing and installing piston pin (Use 8 mm dia. adapter.)
11 897712-04630 2-pin wrench Removing and installing pawl carrier
12 897714-24330 Oil seal tool Installing crankcase oil seals
13 897726-09130 Oil seal tool Removing clutch drum and installing clutch drum ball bearing
14 897719-02830 Piston holder Making piston steady to remove and install piston and rings
15 897800-79931 Spark tester Checking ignition system
16 897803-30132 Pressure tester Checking carburettor and crankcase leakages
17 897826-16131 Pressure rubber plug Plugging intake port to test crankcase and cylinder leakages
18 897827-16131 Pressure plate Plugging intake port to test crankcase and cylinder leakages
19 897835-16131 Pressure connector Checking crankcase and cylinder leakages
20 900600-00012 Washer Installing drive gear
21 91007 Compression gauge Measuring cylinder compression
22 91020 2 way limiter cap tool Removing and installing plug
1-6 Special tools
1
7
16
8
17
a = 3mm
a = 4mm
9
19
11
6
10
13 14 12
21
2
3
5 4
15
18
20 22
