SERVICE INFORMATION
CS-2600ES
CS-2700ES
7
1.35
0.4
1.65
1.5
b
a
20
20
40
40
60
60
80
80
120
120
140
140
160
160
180
180
20
20
100
100
26
00
1
2
3
4

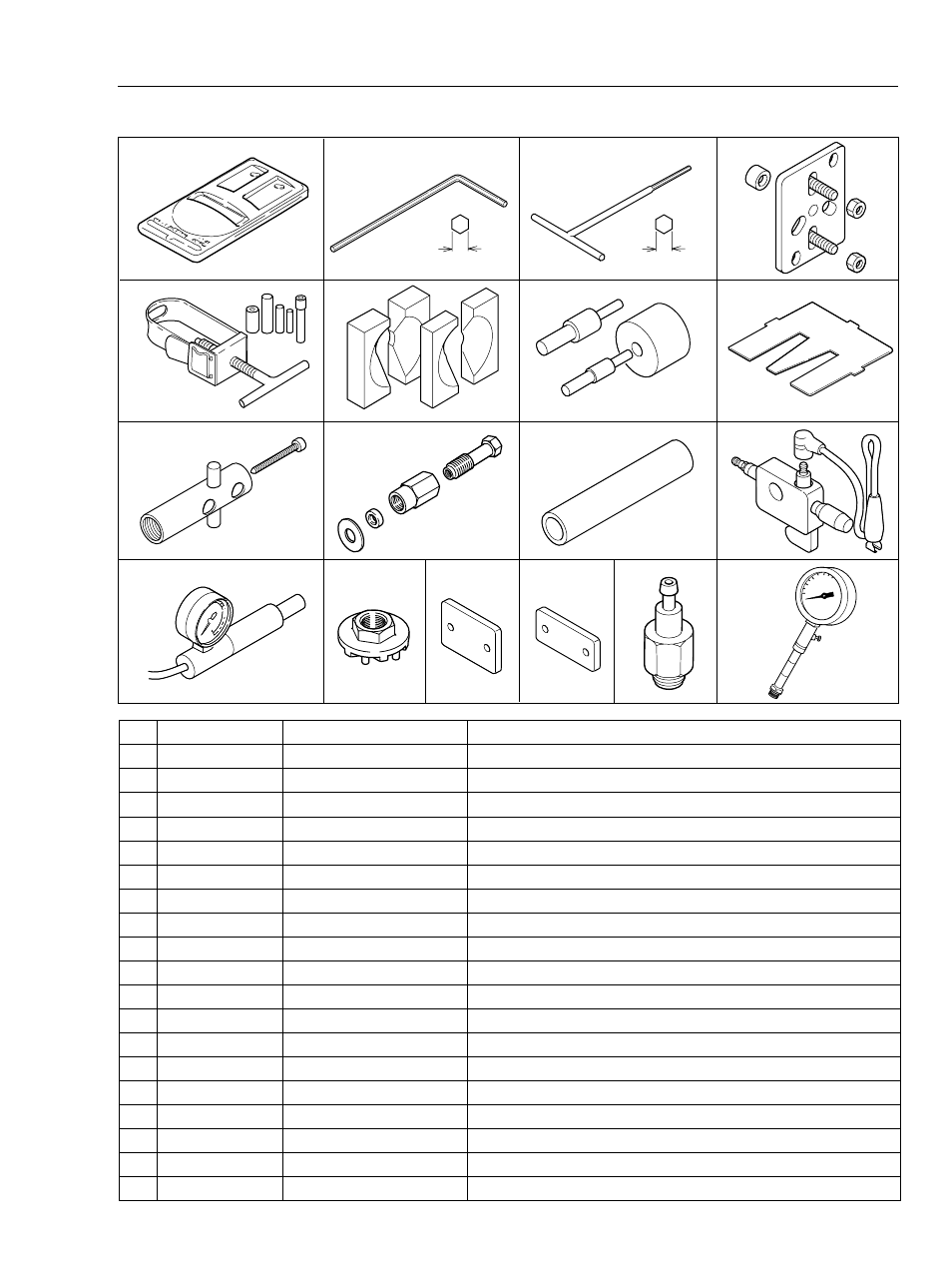

1-6 Special tools
1
4
5
2
6
9
10
11
14
12
15
16
18
19
3
8
Key Part Number
Description
Used for:
1
897801-33330
Tachometer PET-1000
Measuring engine speed to adjust carburettor
2
895612-79920
L-hex wrench (3 mm)
Removing and installing hex. socket bolt (M4)
3
895610-79920
L-hex wrench (4 mm)
Removing and installing hex. socket bolt (M5)
4
897559-02831
T-hex wrench (4 mm)
Removing and installing hex. socket bolt (M5)
5
897501-03938
Puller
Removing magneto rotor
6
897702-30131
Piston pin tool
Removing and installing piston pin
7
897701-06030
Bearing wedge
Removing and crankshaft ball bearings
8
897705-11520
Bearing tool
Replacing needle bearing on con-rod small end
9
897563-19830
Metering lever gauge
Measuring metering lever hight on carburettor
10
897708-19835
Worm puller
Removing auto-oiler worm
11
Y089-000010
Worm inserter
Installing auto-oiler worm
12
897726-09130
Oil seal tool
Installing oil seals
13
897800-79931
Spark tester
Checking ignition system
14
897803-30132
Pressure tester
Testing carburettor and crankcase leakage
15
X640-000011
Clutch tool
Removing and assembling clutch assembly
16
897826-16131
Pressure rubber plug
Plugging intake port to test crankcase / cylinder leakages
17
897828-12330
Pressure rubber plug
Plugging intake port to test crankcase / cylinder leakages
18
897835-16131
Pressure connector
Checking crankcase and cylinder leakages
19
91007
Compression gauge
Measuring cylinder compression
a = 3 mm
a = 4 mm
7
17
13
