Dear Customer!
Thank you for your good choice! You purchased a Timberk oil filled radiator.
We did everything for the unit to operate reliably for a long time.
Timberk electric oil filled radiator is designed to heat the air and create a
comfortable environment indoors during cold season (early spring, fall,
winter). The radiator is very easy-to-use, easy to install, and also has an
increased heat transfer and an efficient air flow distribution. Besides,
Timberk Professional oil filled radiators are additionally equipped with an
air ionizing function. The built-in air ionizer can operate independently of
the air heating mode.
You must install the oil filled radiator only vertically and only on a rigid
surface (for example, on the floor) in a place, where it is possible to connect
to ~220 V single-phase power supply wiring with an earth circuit.
Lines of Timberk electric oil filled radiators, described in this
operation manual:
TOR 31 EHX I (features a built-in fan heater)
TOR 31 RRX (features a built-in fan heater)
TOR 21 BTX I
TOR 21 HBX I
TOR 21 SLX I
Please, read this manual prior to assembly and use of the unit!

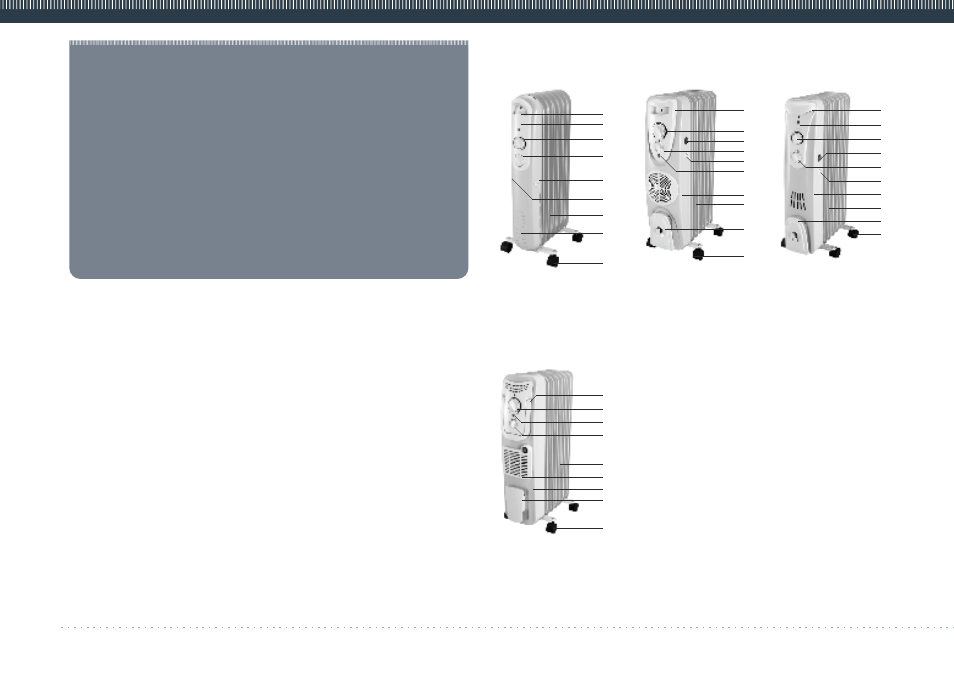

Appearance and components.
1-front control panel
2-unit's operating mode indicator
3-thermostat regulator (thermostat's turning
knob)
4-heating power regulator (a turning knob to
select unit's operating power)
5-roller wheels to move the radiator (included in
the supply set)
6-air ionizer on/off button (located on the right
side of the unit)
7-Ionizer cap
8-unit's case front panel
9-radiator's oil containing sections
10-fan heater
11-cable holder
2 www.timberk.com electric oil felled radiator
TOR 21... HBX I /
TOR 21... BTX I
1
4
2
3
7
8
5
1
TOR 21... EHX I
TOR 21... RRX
9
6
6
3
4
7
2
10
11
5
1
2
3
6
4
7
8
9
11
5
TOR 21... SLX I
1
3
2
4
9
10
8
11
5
9
