Edimax Technology HP-2003AV User Manual
Page 4
3

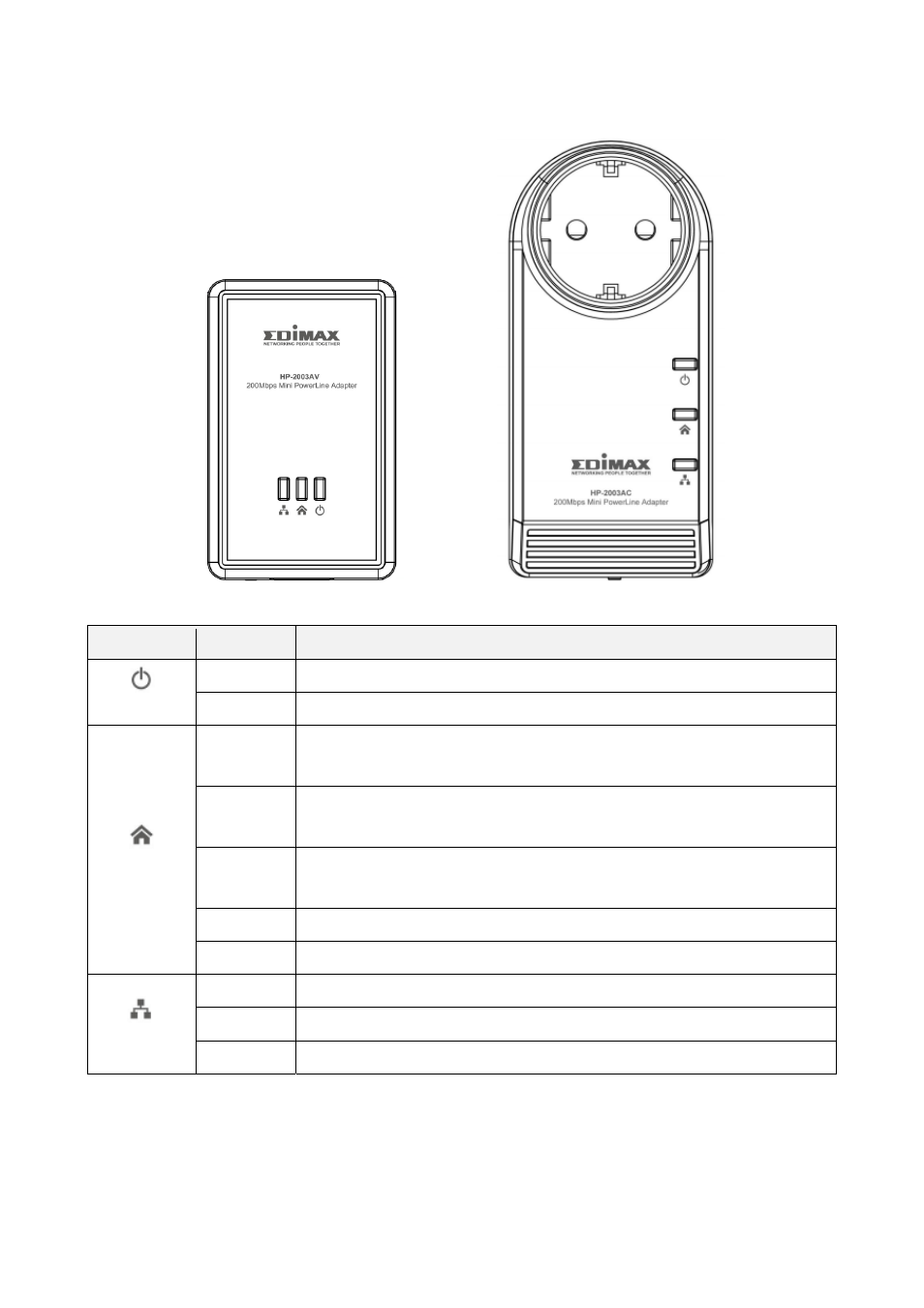

LED & Button Definitions
LED
Status
Description
PWR
Green
Powered on
Off
Powered off
PLC
Green
Excellent signal with optimal network speed
(100Mbps and above)
Orange
Normal signal with standard network speed (50 to
100Mbps)
Red
Weak signal with slower network speed (50Mbps
and below)
Blinking PLC activity (transferring data)
Off
No other PLC device detected
LAN
Green
LAN port connected
Blinking LAN activity (transferring data)
Off
LAN port not connected
