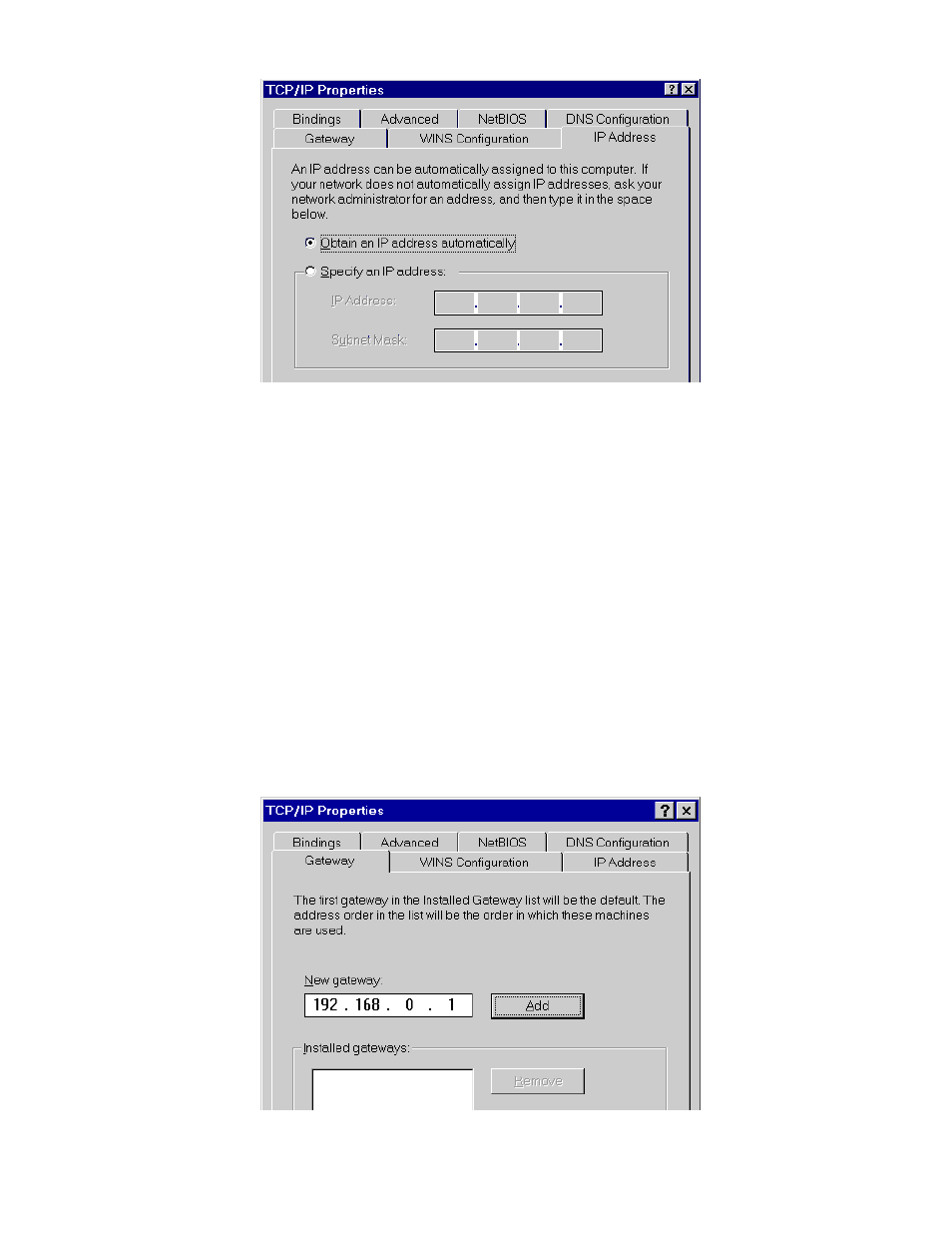

Figure B-2: IP Address (Win 95)

Ensure your TCP/IP settings are correct, as follows:

Using DHCP

To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows settings.

Restart your PC to ensure it obtains an IP Address from The Load Balancer.

Using "Specify an IP Address"

If your PC is already configured, check with your network administrator before making the following
changes:

• If

the

DNS Server fields are empty, select Use the following DNS server addresses, and enter the

DNS address or addresses provided by your ISP, then click OK.

• On

the

Gateway tab, enter The Load Balancer's IP address in the New Gateway field and click

Add, as shown below. (Your LAN administrator can advise you of the IP Address they assigned to
The Load Balancer.)

Figure B-3: Gateway Tab (Win 95/98)
