5

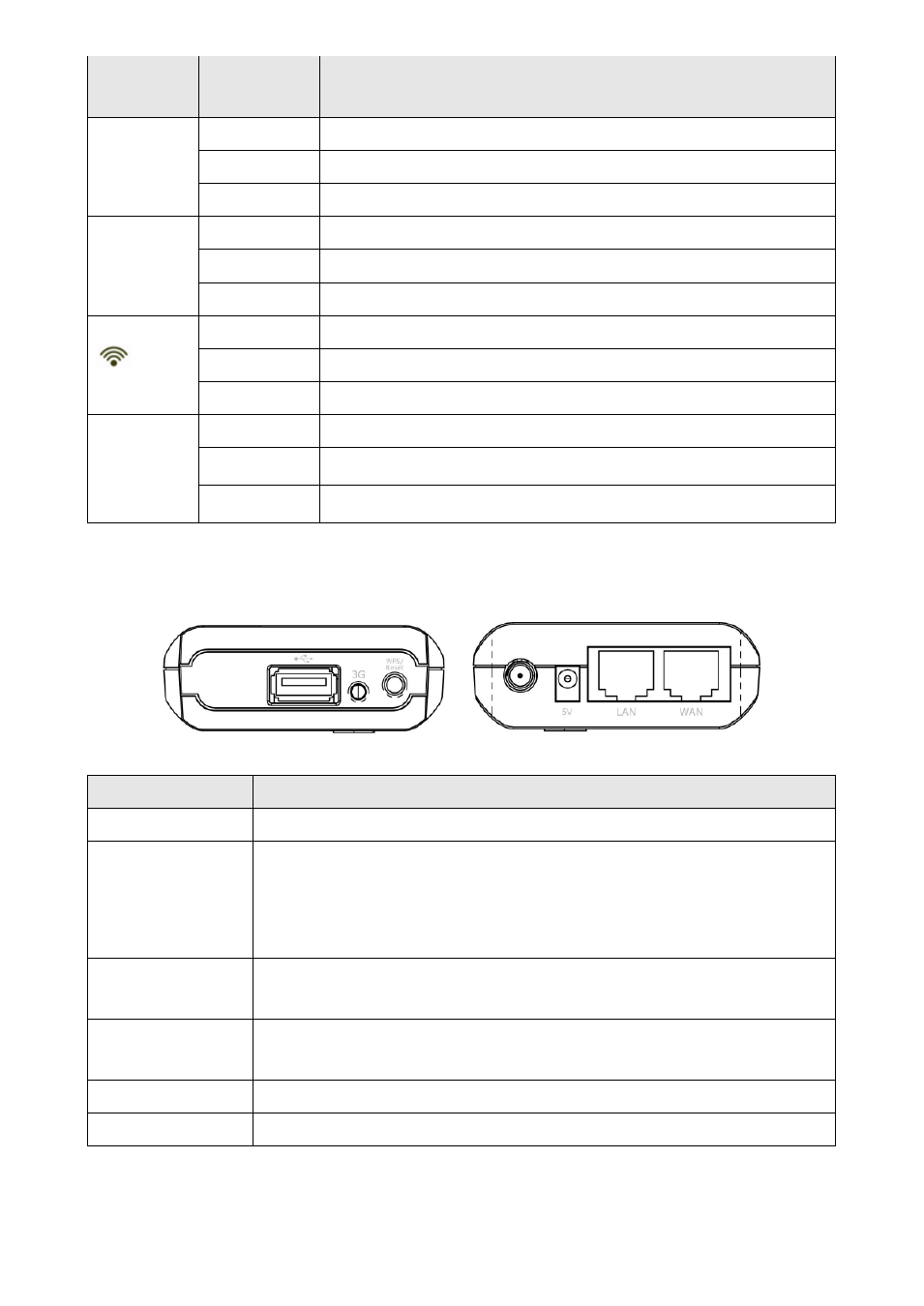

LED
Name Light
Status Description
WAN On Connected to the Internet
Off Not connected to the Internet
Flashing Internet activity (transferring data)
LAN On LAN port connected
Off LAN port not connected
Flashing LAN activity (transferring data)
Wi-Fi On Wi-Fi activated (or WPS mode activated)
Off Wi-Fi not activated
Flashing Wi-Fi activity (transferring data)
3G On Connected to the 3G network
Off Not connected to the 3G network
Flashing 3G activity (transferring data)
Interfaces
Item Name Description
USB Port Connects to 3G/3.75G USB modem cards
WPS/Reset
Button Resets the router to factory default settings or activates
the WPS function (press this button and hold for 20
seconds to clear all settings or press this button for 2-5
seconds to activate the WPS function)
Antenna
Connector Connects to the supplied antenna
Power
Connector Connects to the supplied power adapter
LAN Port Connects to computers or other network devices
WAN Port Connects to cable/xDSL modems
