5
3) Power Jack
Please plug the power adapter attached with the ADSL Router to the power
jack. The power adapter is 12VDC, 1A.
4) Local Area Network (LAN)
The router’s 4 LAN ports are where you connect your LAN’s PCs, printer
servers, hubs and switches etc.
5) ADSL
Connect the supplied RJ-11 telephone line to this port and your
ADSL/telephone network.

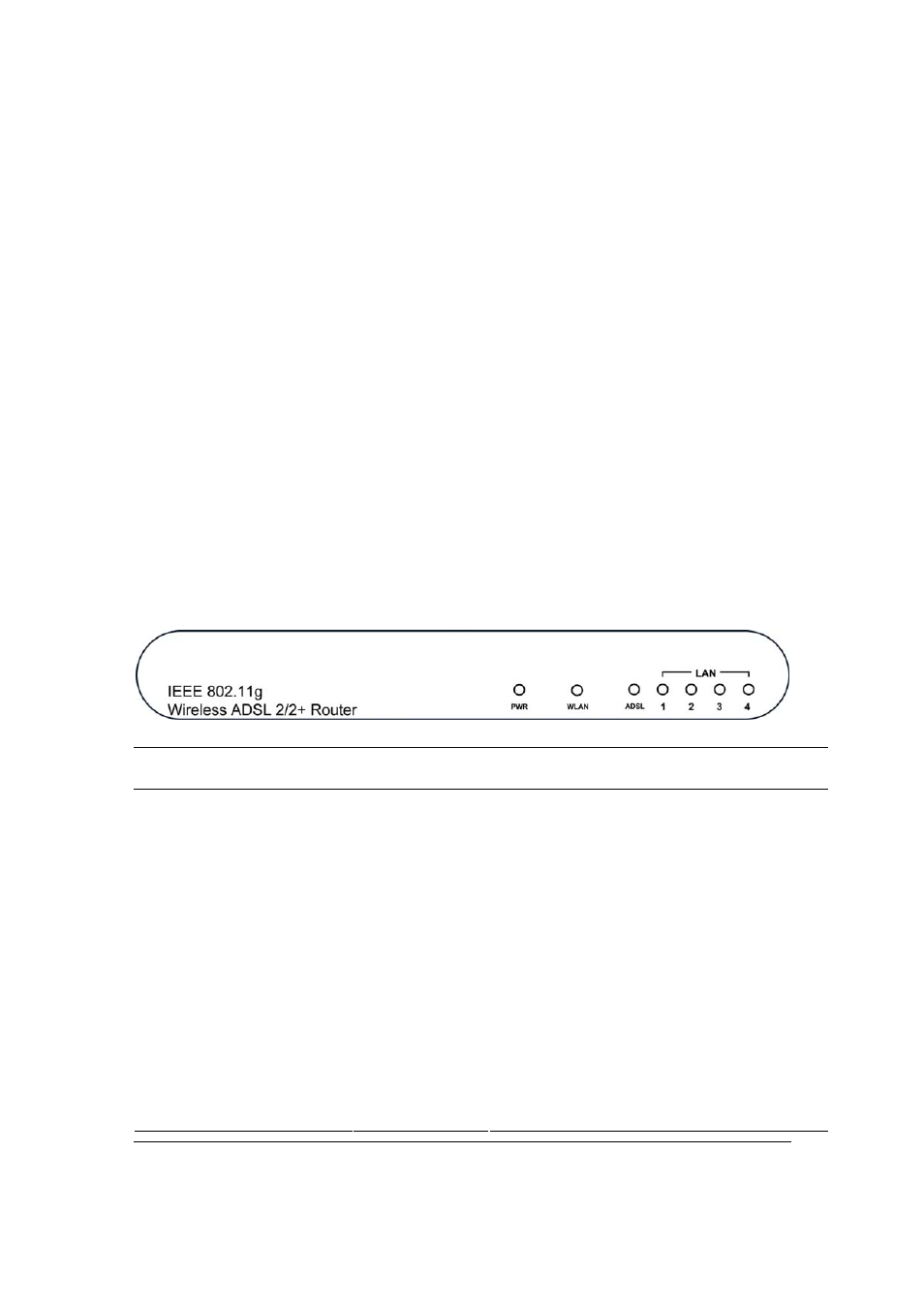

1.4.2. Front LEDs
On the router’s front panel there are LED lights that inform you of the router’s
current status. Below is an explanation of each LED and its description.
LED Light Status Description
On The router is ready PWR (Green)
Off Wireless LAN is disabled
Blinking Wireless traffic is transmitting or receiving
WLAN (Yellow)
(For AR-7084gA /
AR-7084gB )
On Connected to an ADSL DSLAN
successfully
ADSL (Green)
Blinking No connection
On
The LAN cable is connected to the router
Off
No network connection.
LAN LNK/ACT (Port 1-4)
Blinking
Network traffic transferring or receiving
through the LAN port
