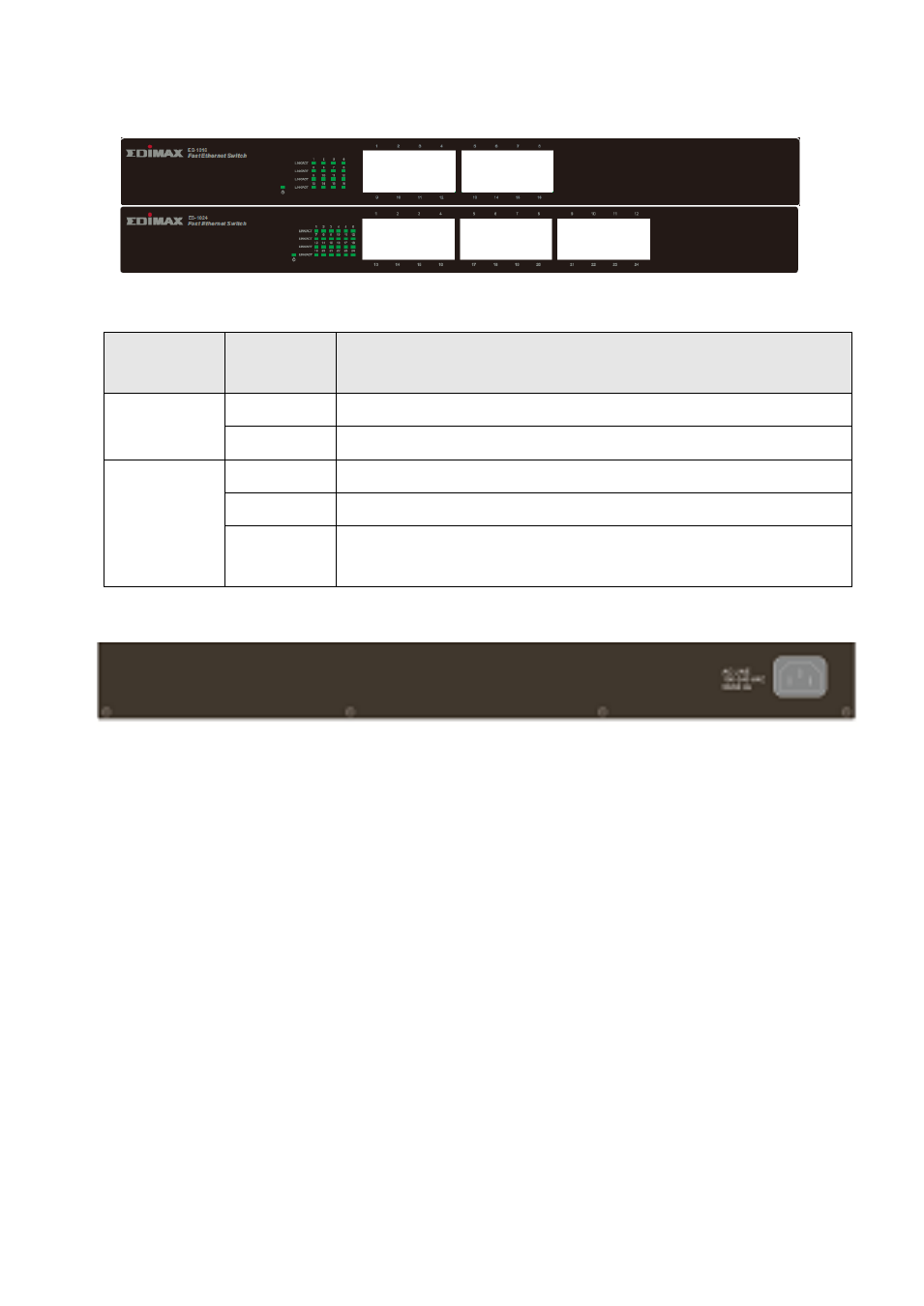

Front Panel
Please refer to the following description for the front panel:
LED Definition:
LED Name Light
Status
Description
PWR On Switch on and correctly powered
Off Switch not powered or not correctly powered
LNK/ACT On The port connected
Off The port not connected
Flashing The port is activating and transferring /receiving
data.
Back Panel
AC IN : This connects to AC power source. Supported input voltages range from
100 ~ 240V AC at 50 ~ 60Hz.
Power Connector
Plug in the female connector of the provided power cord into this connector, and
the male into a power outlet. Supported input voltages range from 100-240V AC,
and 50-60 Hz.
