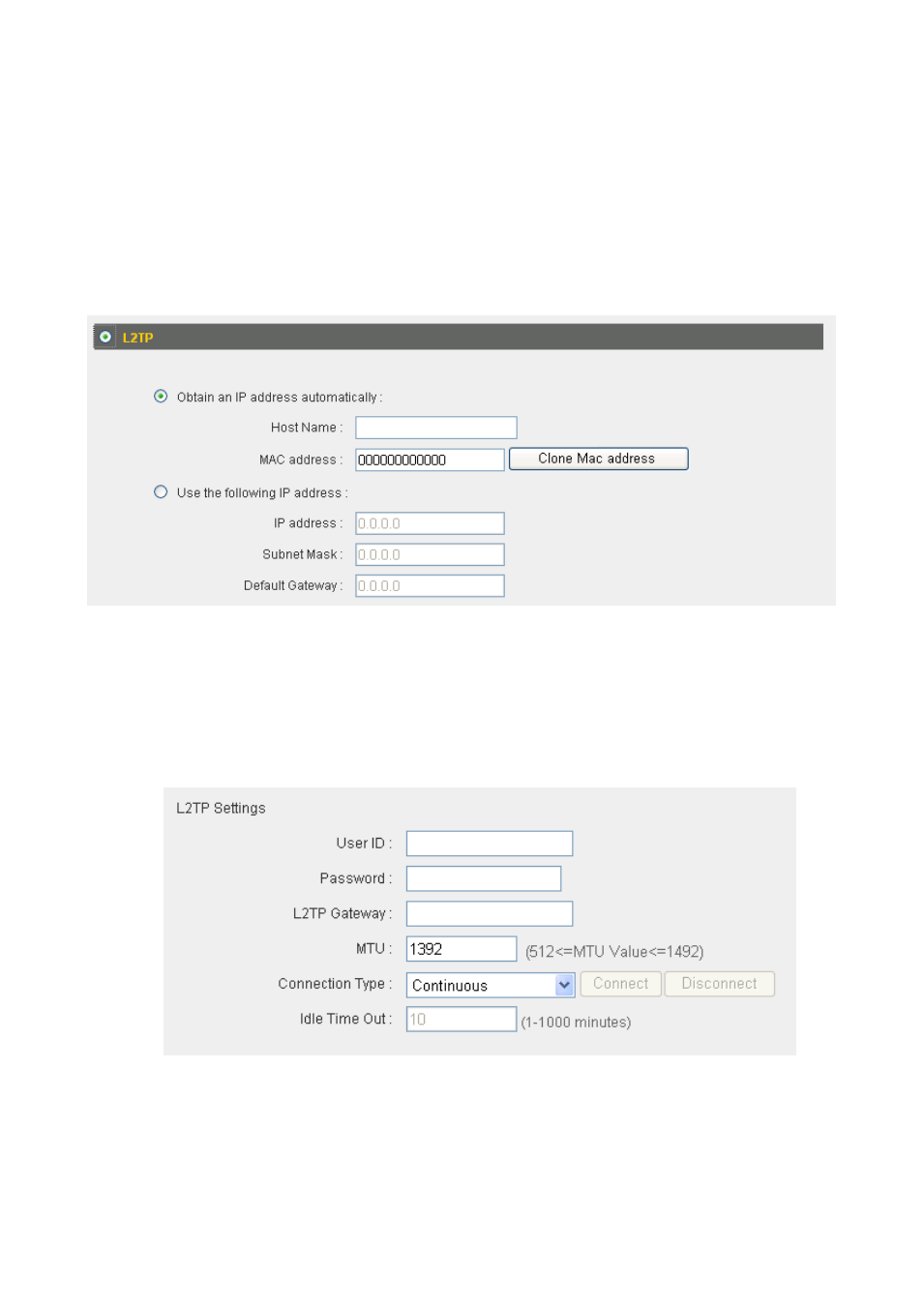

2-4-6 Using “L2TP” as broadband connection type

1. Select “L2TP” if your ISP is providing you Internet access via L2TP (Layer-2

Tunneling Protocol).

2. If your ISP is providing you dynamic IP addresses, select “Obtain an IP address

automatically” (refer to 2-4-1 for setup details). If your ISP is providing you a static
IP address, select “Use the following IP address” (refer to 2-4-2 for setup details).

NOTE: These settings must be configured according to your Internet service. Please
contact your Internet service provider if you are not sure what to select.

3. Configure the “L2TP Settings” section.
