- 15 -

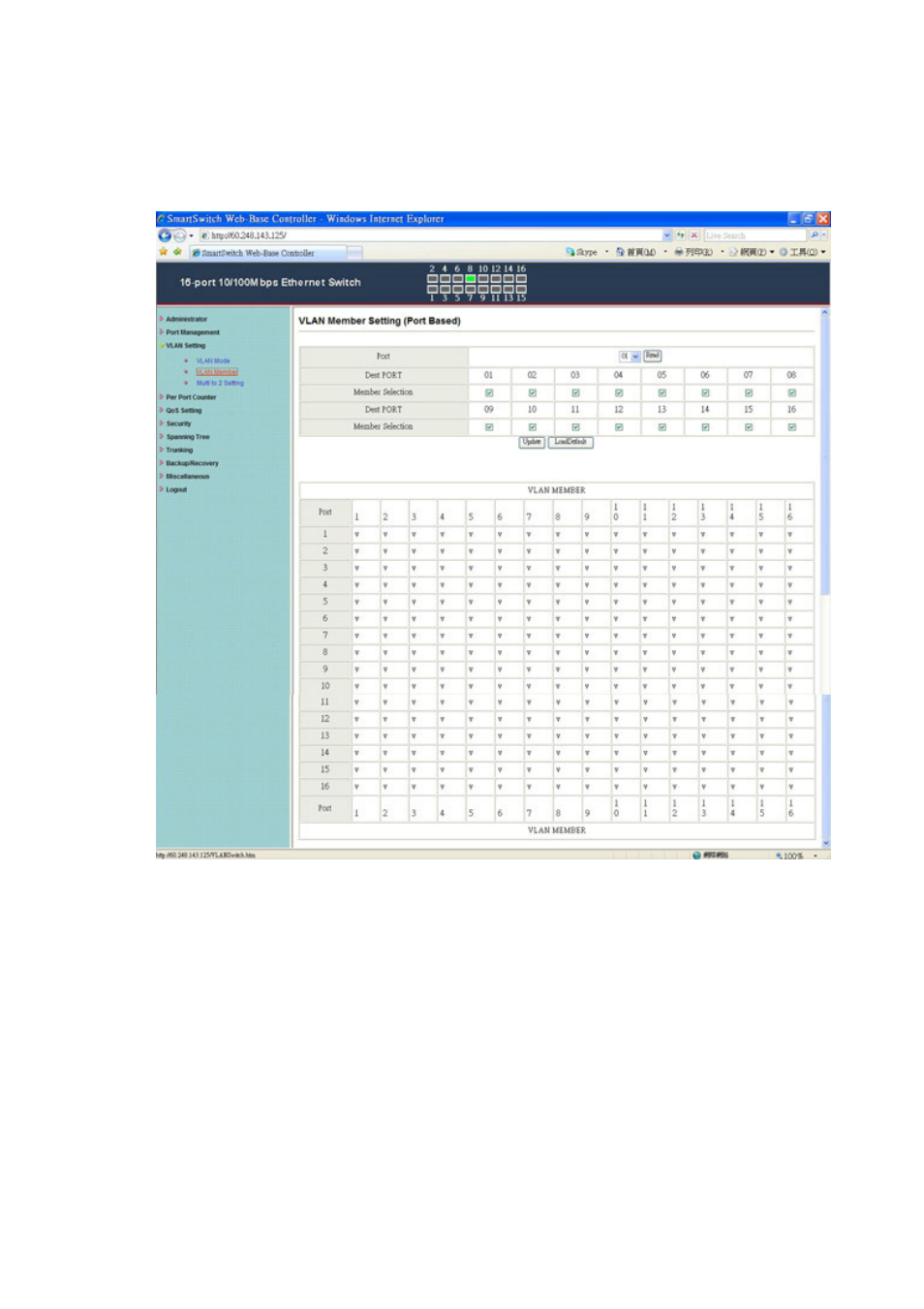

VLAN Setting: VLAN Member Setting (Port Based)

You can select a port group.

1. Click the port numbers: which you want to put them into the

selected VLAN group.


2. Click “Update” to confirm and finish the setting.

3. Click “LoadDefualt” to back to the original factory setting.

Now, the setting of “VLAN Mode” is finished.
