3M™ MicroTouch™ Controller SX112 Reference Guide

29

3M Touch Systems, Inc. Proprietary Information

APPENDIX A

SX112 Controller Specifications

This section provides controller specifications such as power requirements,
environmental requirements, and cable connectors.

The controller measures 1.35 x 4.8 inches with a total height profile of 0.35 inches from
the thru hole pins on the trace side of the board to the top of the highest component on the
opposite side. The SX112 has a touch sensor connector, a pen connector and a serial
cable connector.

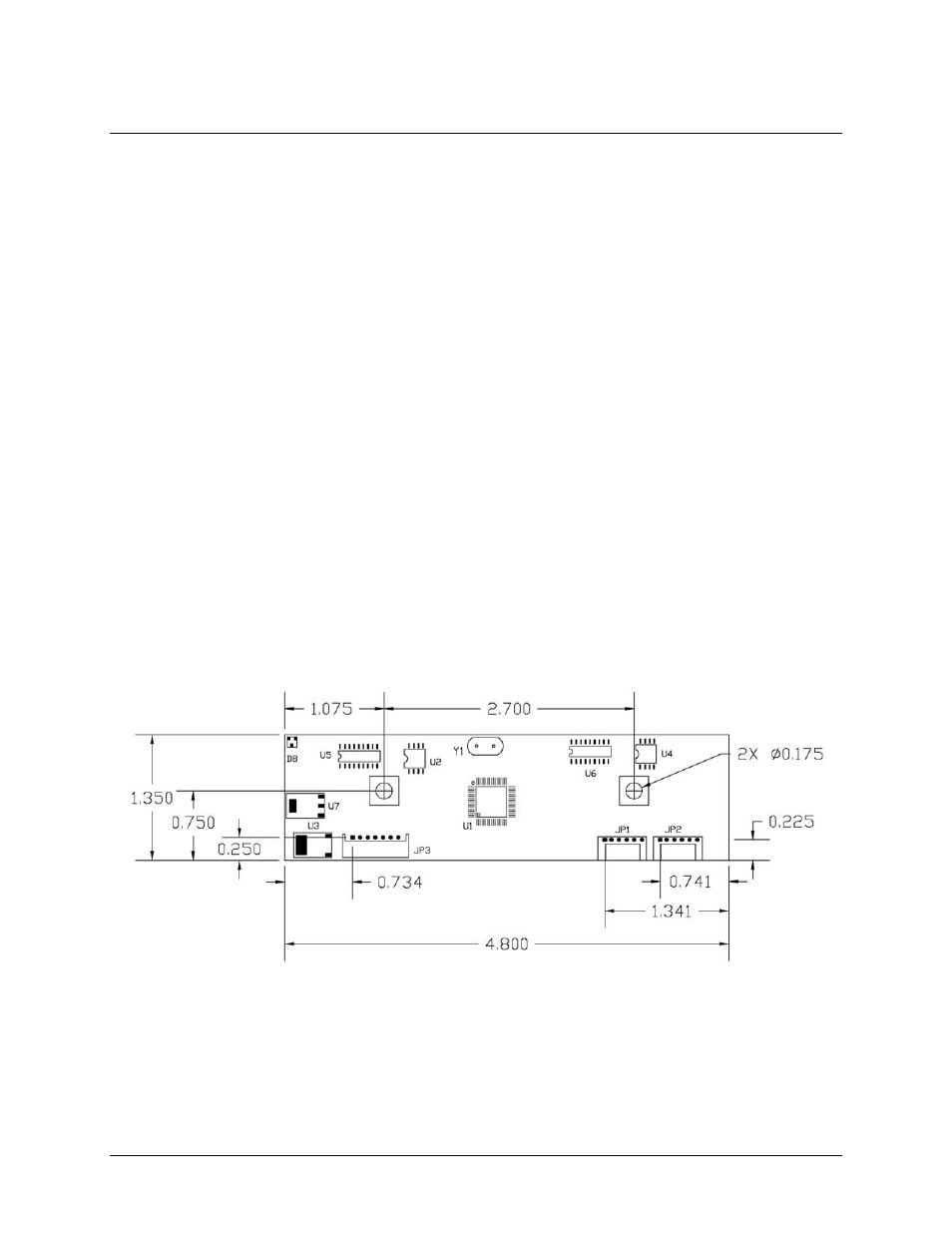

Figure 2 SX112 Overall Dimensions
