P.13
B.

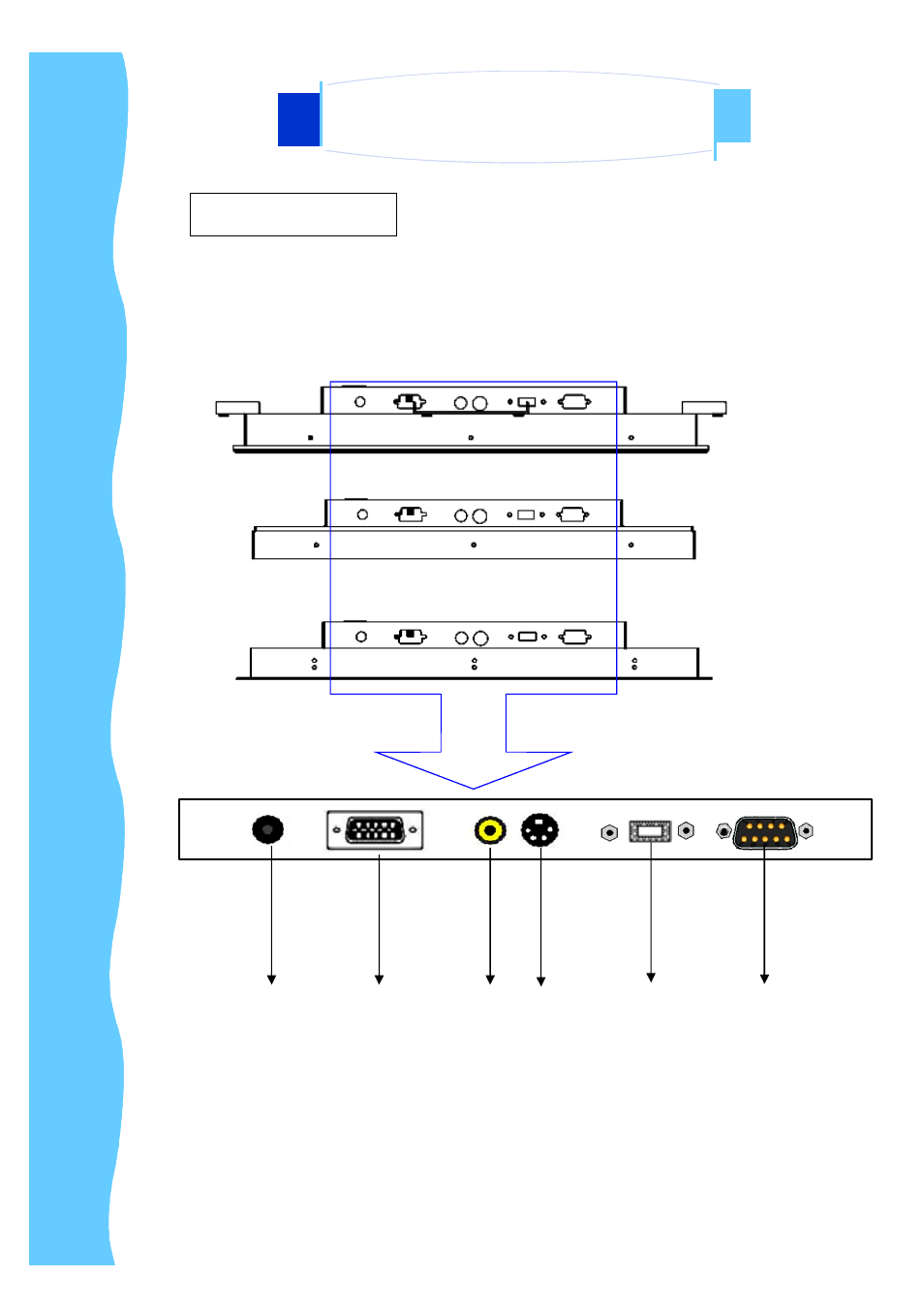

I/O Outlet
AP-10AV / DP-10AV / DP-10AV Series
User Manual
4. Using the System
AP Series
DP Series
OP Series
1. DC IN
： Connect to DC power cable.
2. PC IN
： Connect to D-Sub 15 pin signal connector.
3. RCA IN
： Connect to the composite cable connector. (for AV series only)
4. S-Video IN ： Connect to the S-Video cable connector. (for AV series only)
5. USB IN
： Connect to the USB connector. (for Touchscreen series only)
6. SERIAL IN ： Connect to the Serial connector. (for Touchscreen series only)
(1)
(2)
(3)
(4)
(5)
(6)
