Performance Series
Programming the System
15
Keypad Function
Definitions (for Text
entry) (Programming
State)
Key functions are defined below.
Key
Function
HOLD (Shift)
Shifts between upper and lower case for text data.
UP ARROW
Increments data by 1. Fields wrap around.
DOWN ARROW
Decrements data by 1. Fields wrap around.
1
Enters the digit 1 for numeric entry.
Enters the following for text entry:
2
Enters the digit 2 for numeric entry.
Enters the following for text entry:
3
Enters the digit 3 for numeric entry.
Enters the following for text entry:
4
Enters the digit 4 for numeric entry.
Enters the following for text entry:
5
Enters the digit 5 for numeric entry.
Enters the following for text entry:
1
2
3
4
5
6
7
8
9
0
MENU
T
A
L
K
SP-389C

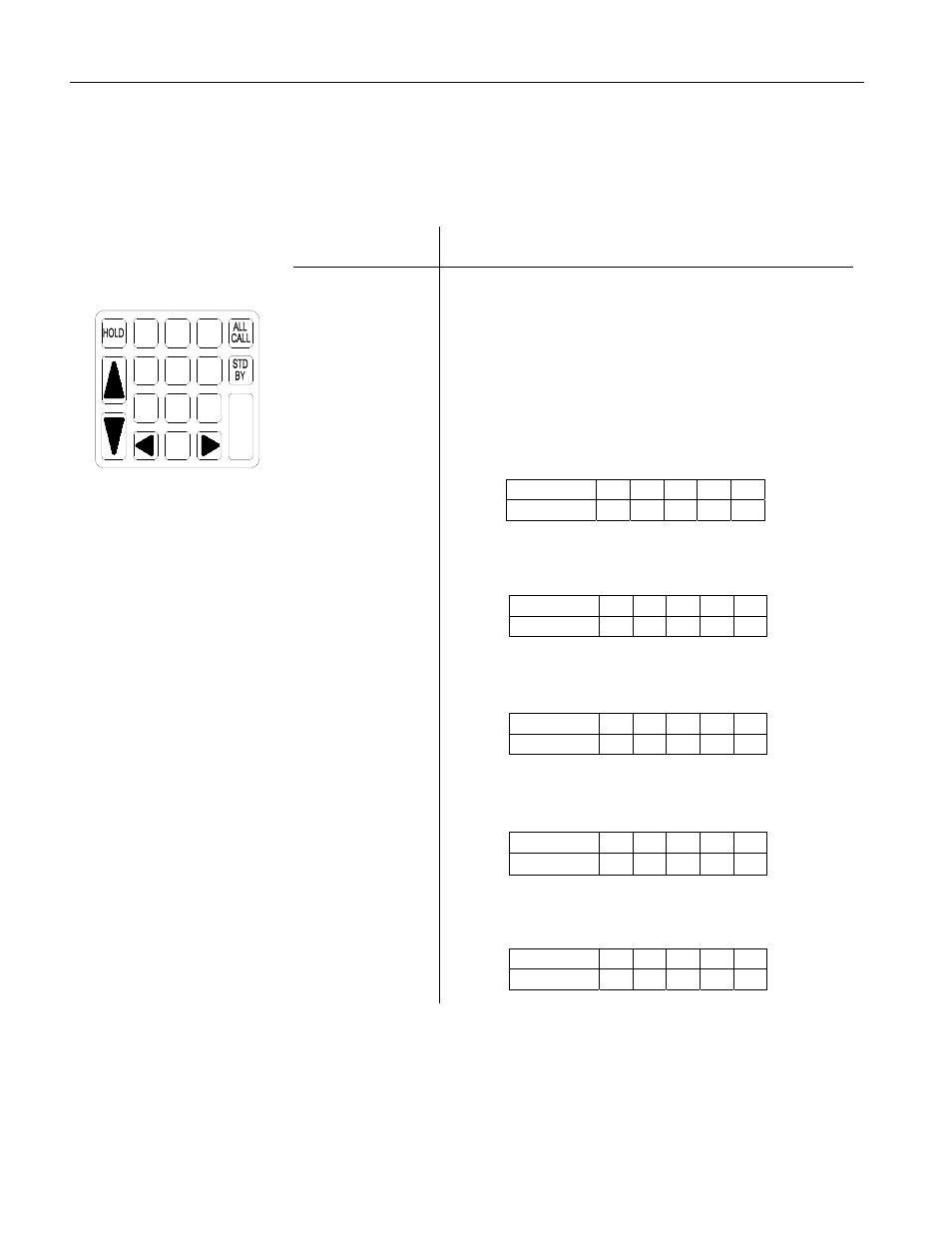

Figure 12. D-2400 Key-
pad
Unshifted A B C 1 (
Shifted
a b c 1 )
Unshifted
D E F 2 [
Shifted d e f 2 ]
Unshifted G H I 3 {
Shifted g
h
i
3
}
Unshifted J K L 4
←
Shifted
j k l 4
→
Unshifted M N O 5 :
Shifted m n o 5 ;
