Pressure washer parts list and assembly diagram – Harbor 1650 PSI User Manual
Page 18
Page 18
For technical questions, please call 1-800-444-3353.
SKU 69488
Sa
FE
ty
Op
ER
ati
O
n
m
aint
Enanc
E
SE
tup
part
Description
Qty
1a
Power Switch Cover
1
2a
Power Switch
1
3a
Front Panel
1
4a
Upper Housing
1
5a
Waterproof Cover
1
6a
Right Motor Cover
1
7a
Cord Protector
1
8a
Cord Clamp
1
9a
Handle Extension
1
10a Bottom Housing
1
11a Wheel Cover
2
12a Axle
1
part
Description
Qty
13a Wheel
1
14a Heat Guard
1
15a Fan Cover
1
16a Pump Asm.
1
17a Left Motor Cover
1
18a Cushion
1
19a Gun/Extension Nozzle Holder
1
20a Upper Heat Guard
1
21a Gun
1
22a Extension Nozzle
1
23a High Pressure Hose (not shown)
1
24a Detergent Bottle
1

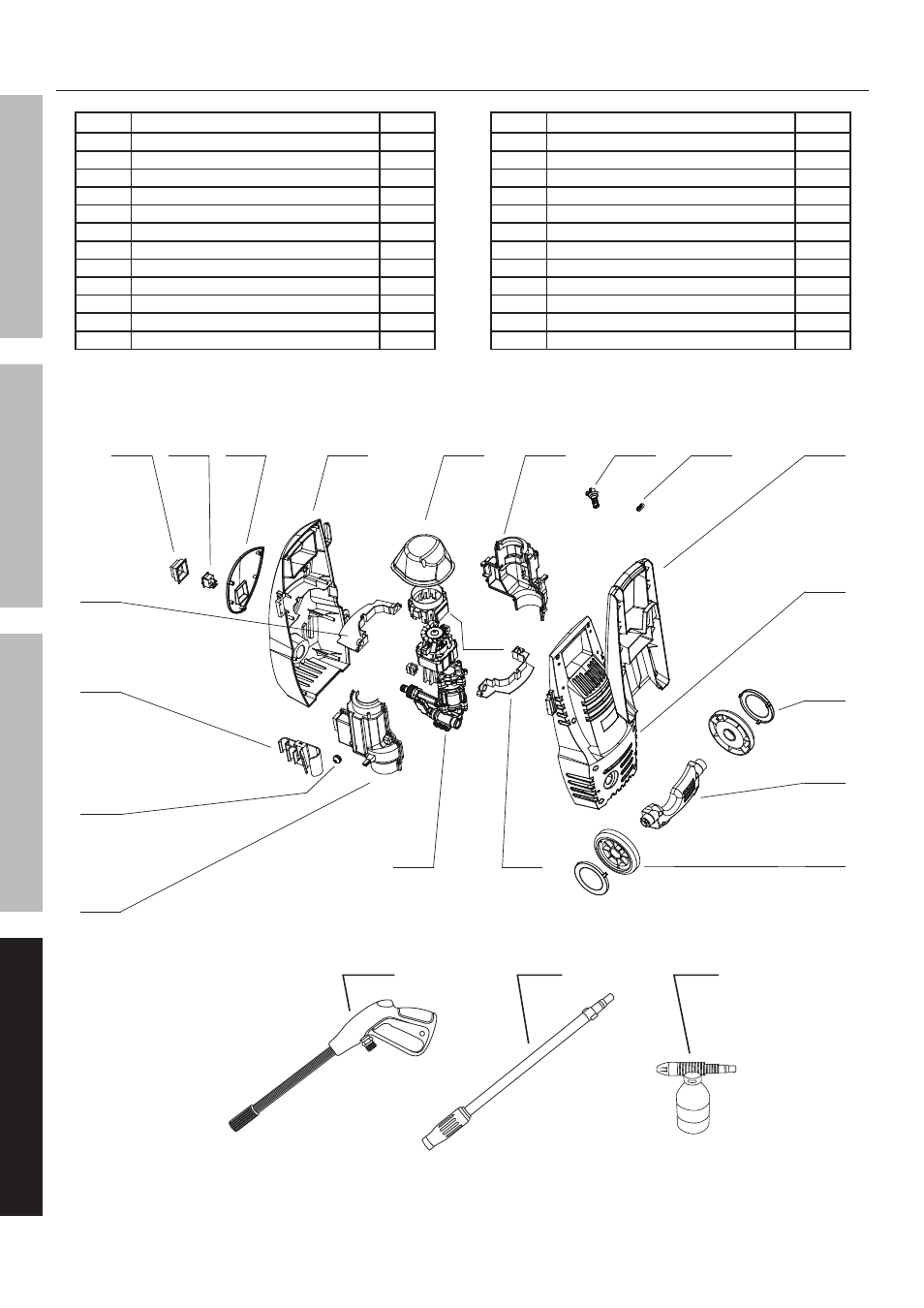

pressure Washer parts list and assembly Diagram
1a
2a
3a
4a
5a
6a
7a
8a
9a
10a
11a
12a
13a
14a
15a
16a
20a
19a
18a
17a
21a
22a
24a
