Electrical Connection
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should these safety measures not be
observed.
Before switching on, make sure the electricity
supply voltage is the same as that indicated on the
appliance rating plate. The rating plate is located at
the back of the appliance.The appliance is supplied
with a 13amp plug supplied, a 13amp ASTA
approved (BS1362) fuse must be used.
Should the plug need to be replaced for any reason.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow : Earth
Blue : Neutral
Brown : Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter
"E" or by the earth symbol or coloured green and
yellow.
The wire coloured blue must be connected to the
terminal "N" or coloured black.
The wire coloured brown must be connected to the
terminal marked "L" or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must
be secure over the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp
socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed
of safety.
Permanent connection
In the case of a permanent connection it is
necessary that you install a double pole switch
between the appliance and the electricity supply
(mains), with a minimum gap of 3mm between the
switch contacts and of a type suitable for the
required load in compliance with the current
electrical regulations. The switch must not break
the yellow and green earth cable at any point.

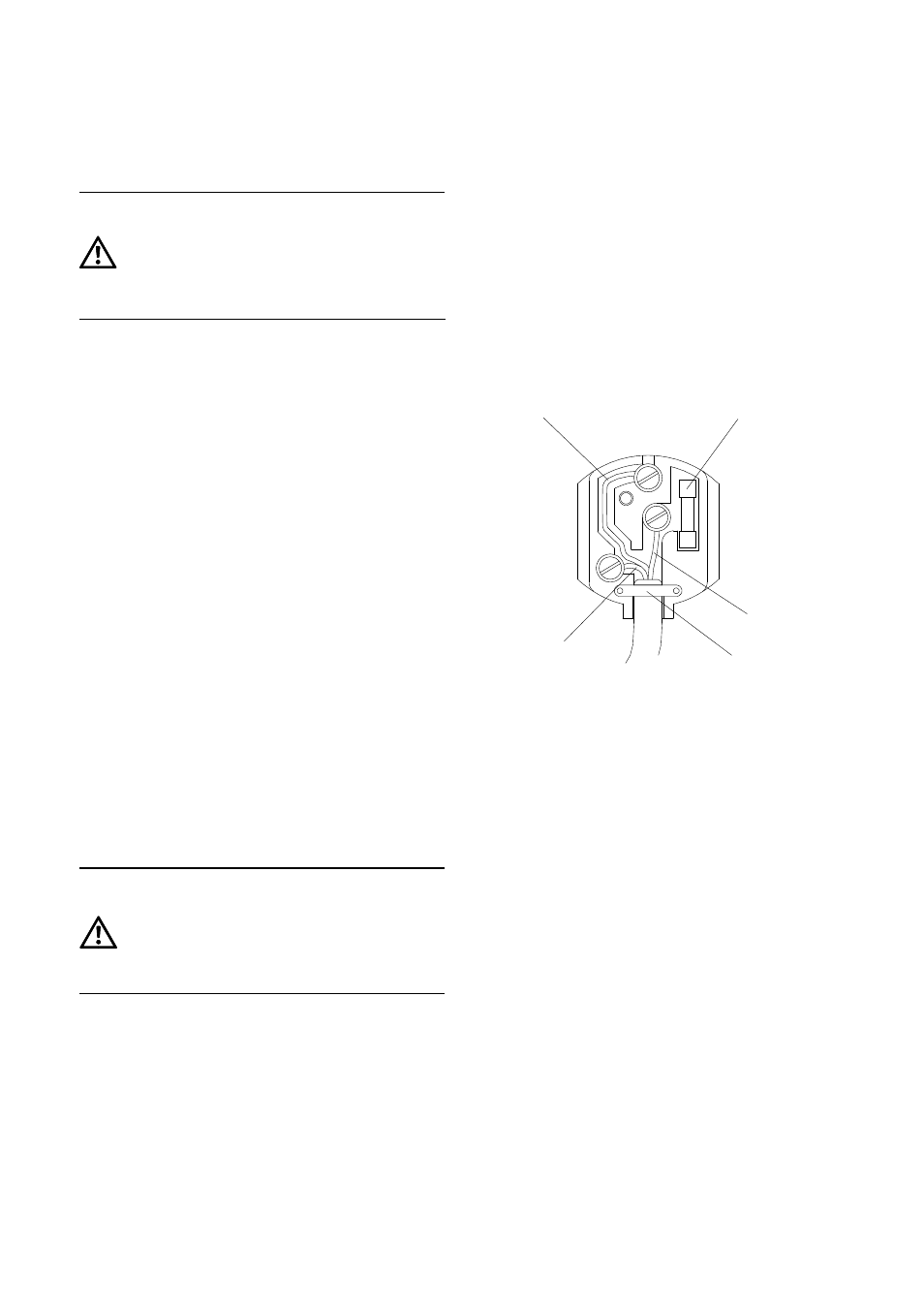

Green and yellow
E
Cord clamp
Brown
13A
Blue
N
