Maintenance – Zenoah PSZ2600 User Manual

Page 13

GB-13

PSZ2600

SPARK PLUG
• Starting failure and misfiring are often caused by a fouled

spark plug. Clean the spark plug and check that the plug
gap is in the correct range. For a replacement plug, use the
correct type specified by ZENOAH.

• REPLACEMENT PLUG IS A NGK CMR7A.

IMPORTANT

• Note that using any spark plug other than those designated may

result in the engine failing to operate properly or in the engine
becoming overheated and damaged.

• To install the spark plug, first turn the plug until it is finger tight, then

tighten it a quarter turn more with a socket wrench.

MUFFLER

WARNING

• Inspect periodically, the muffler for loose fasteners, any damage

or corrosion. If any sign of exhaust leakage is found, stop using
the machine and have it repaired immediately.

•

Note that failing to do so may result in the engine catch-
ing on fire.

WARNING

• Make sure that the engine has stopped and is cool before per-

forming any service to the machine. Contact with moving cut-
ting head or hot muffler may result in a personal injury.

AIR FILTER
• The air filter, if clogged, will reduce the engine performance.

Check and clean the filter element in warm, soapy water as
required. Dry completely before installing. If the element is
broken or shrunk, replace with a new one.

(1)

(1) Air filter

FUEL FILTER
• When the engine runs short of fuel supply, check the fuel

cap and the fuel filter for blockage.

(1)

(1) Fuel filter

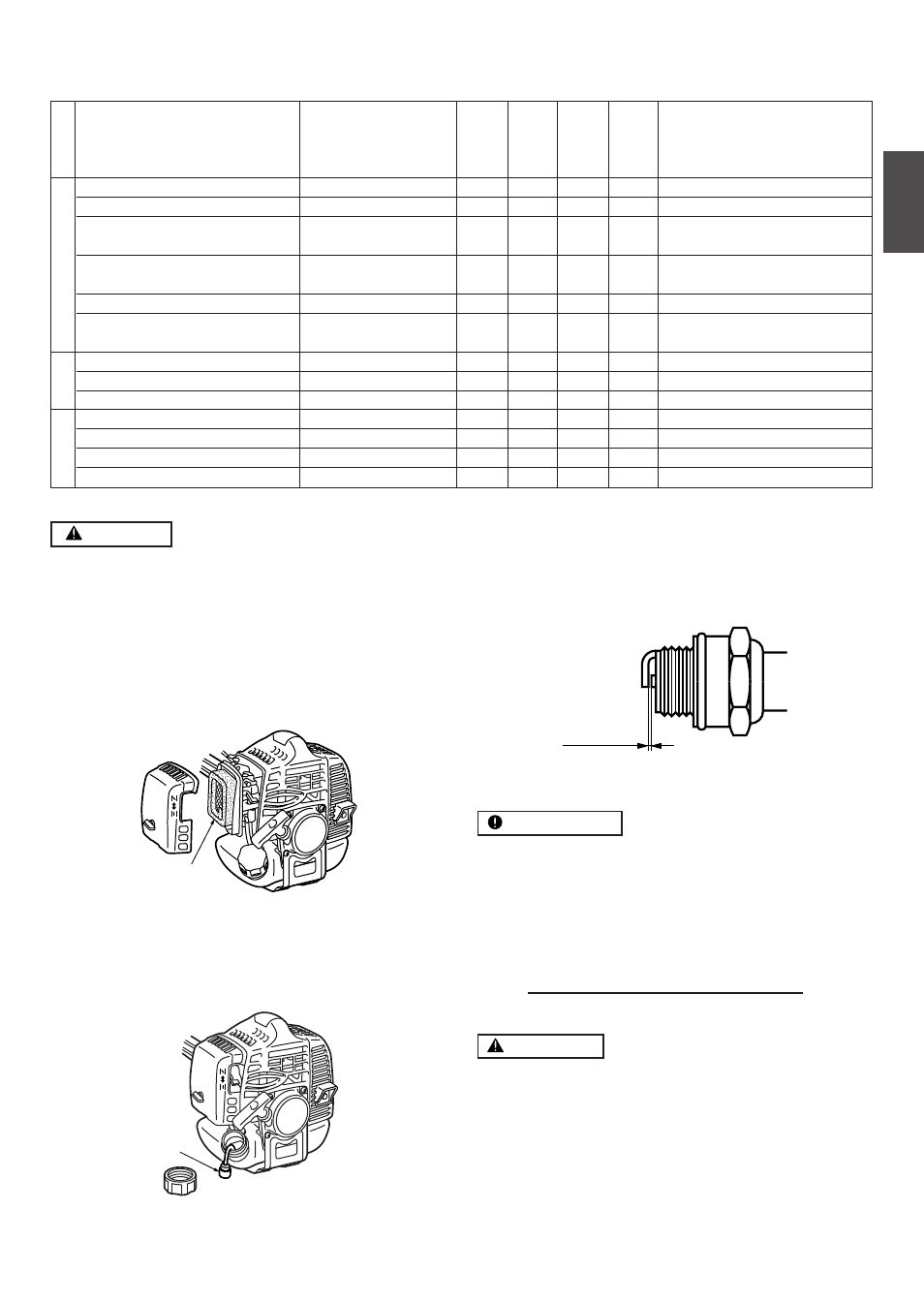

9. Maintenance

Every Every Every

100

System/components

Procedure

Before

hours hours hours Note

use

after

fuel leaks, fuel spillage

wipe out

✔

fuel tank, air filter, fuel filter

inspect/clean

✔

replace, if necessary

see

■ adjusting

replace carburetor

idle adjusting screw

idling speed (p. 11)

✔

if necessary

clean and readjust

GAP: .025 in (0.6 ~ 0.7 mm)

spark plug

plug gap

✔

replace, if necessary

cylinder fins, intake air cooling vent

clean

✔

muffler, spark arrester,

clean,

cylinder exhaust port

remove piled up carbon

✔

throttle lever, ignition switch

check operation

✔

gear case

grease

✔

screws/nuts/bolts

tighten/replace

✔

not adjusting screws

oiling port

clean

✔

guide bar

clean

✔

sprocket

inspect/replace

✔

saw chain

inspect/sharp

✔

ENGINE

SHAFT

CUTTING UNIT

0.6 ~ 0.7 mm

TIGHTENING TORQUE:

87 ~ 104 in-lbs
(9.8 ~ 11.8 N.m.)
