Model series 030 – Yard Machines 30 User Manual
Page 13
13

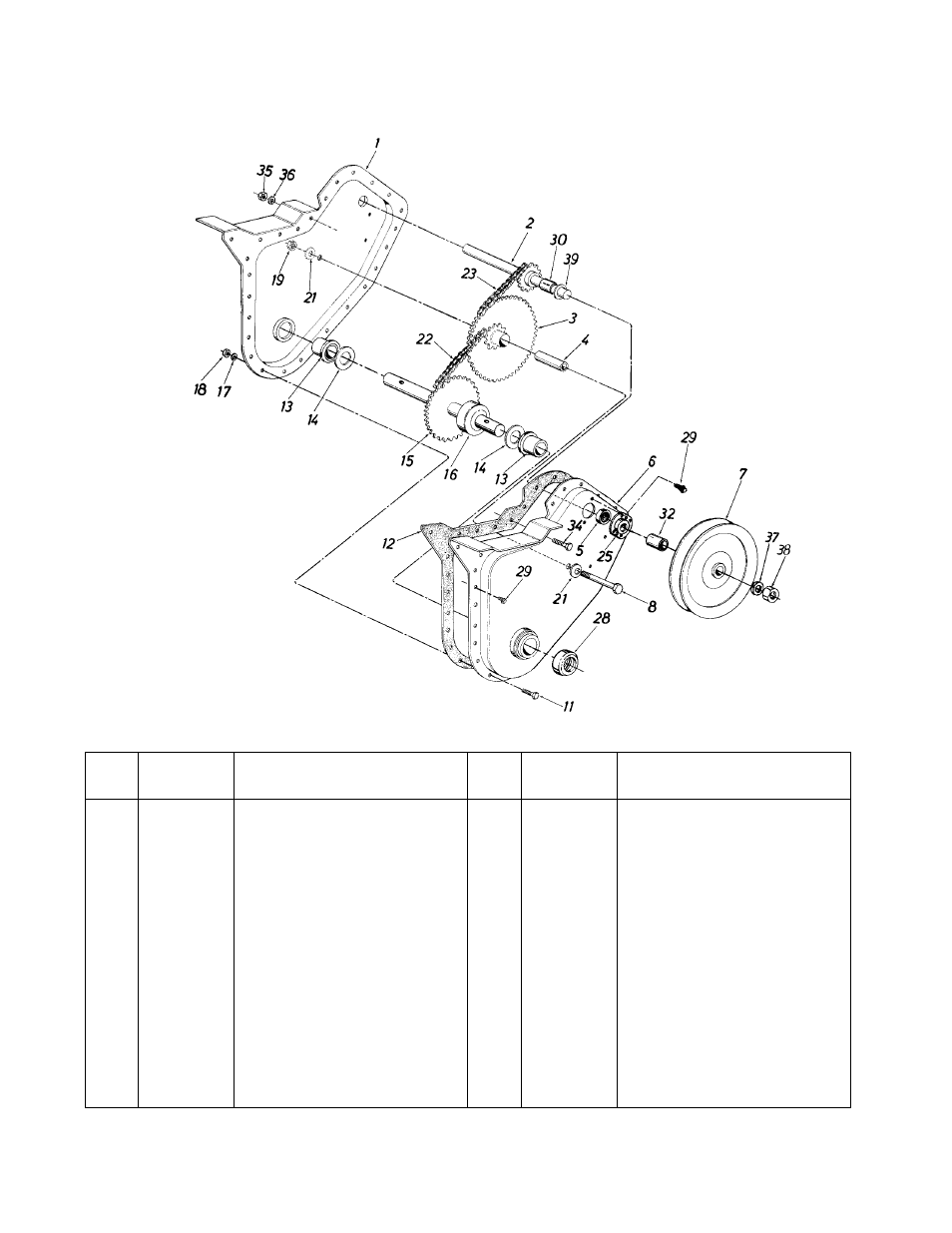

Model Series 030
Ref.
No.
Part No.
Part Description
1
686-0085
Chain Case Ass’y.—R.H.
2
611-0057
Input Shaft Ass’y.
3
04757A
Hub and Sprocket Ass’y.
4
750-0351
Bearing Inner Race
5
741-0155
Ball Bearing
6
686-0087
Chain Case Ass’y.—L.H.
7
756-0996
Pulley—Chain Case
8
710-0369
Hex Bolt 3/8-24 x 2.5"*
11
710-0195
Hex Bolt 1/4-28 x .625"*
12
721-0156A
Gasket
13
741-0227
Flange Brg. .879" I.D.
14
736-0265
Fl-Wash. .88" I.D. x 1.5"
15
04920
Tine Shaft Ass’y.
16
750-0354A
Spacer 7/8" I.D.
17
736-0329
L-Wash. 1/4" I.D.*
18
712-0138
Hex Nut 1/4-28 Thd.*
19
712-0116
Hex Ins. L-Nut 3/8-24 Thd.
21
736-0219
Bell-Wash. .406" I.D.
22
713-0215
Chain #420 1/2" Pitch 38 Links
713-0154
#420 Master Link
23
713-0216
Chain #35 .375" Pitch 50 Links
713-0139
#35 Master Link
25
05034A
Bearing Housing
28
721-0392
Shaft Seal
29
710-0599
Hex Wash. Hd. Self-Tap Scr.
30
750-0471
Spacer .63" I.D. x .77" O.D. x .38"
32
750-0999
Spacer .647 x .77"
34
710-3008
Hex Bolt 5/16-18 x .75" Lg.*
35
712-0267
Hex Nut 5/16-18 Thd.*
36
736-0119
L-Wash. 5/16" I.D.*
37
736-0105
Bell-Wash. .38" I.D. x .88" O.D.
38
712-0379
Hex Flange L-Nut 3/8-24 Thd.
39
736-0302
Washer .652 I.D.
—
686-0093A
Chain Case Ass’y. Comp.
Ref.
No.
Part No.
Part Description
