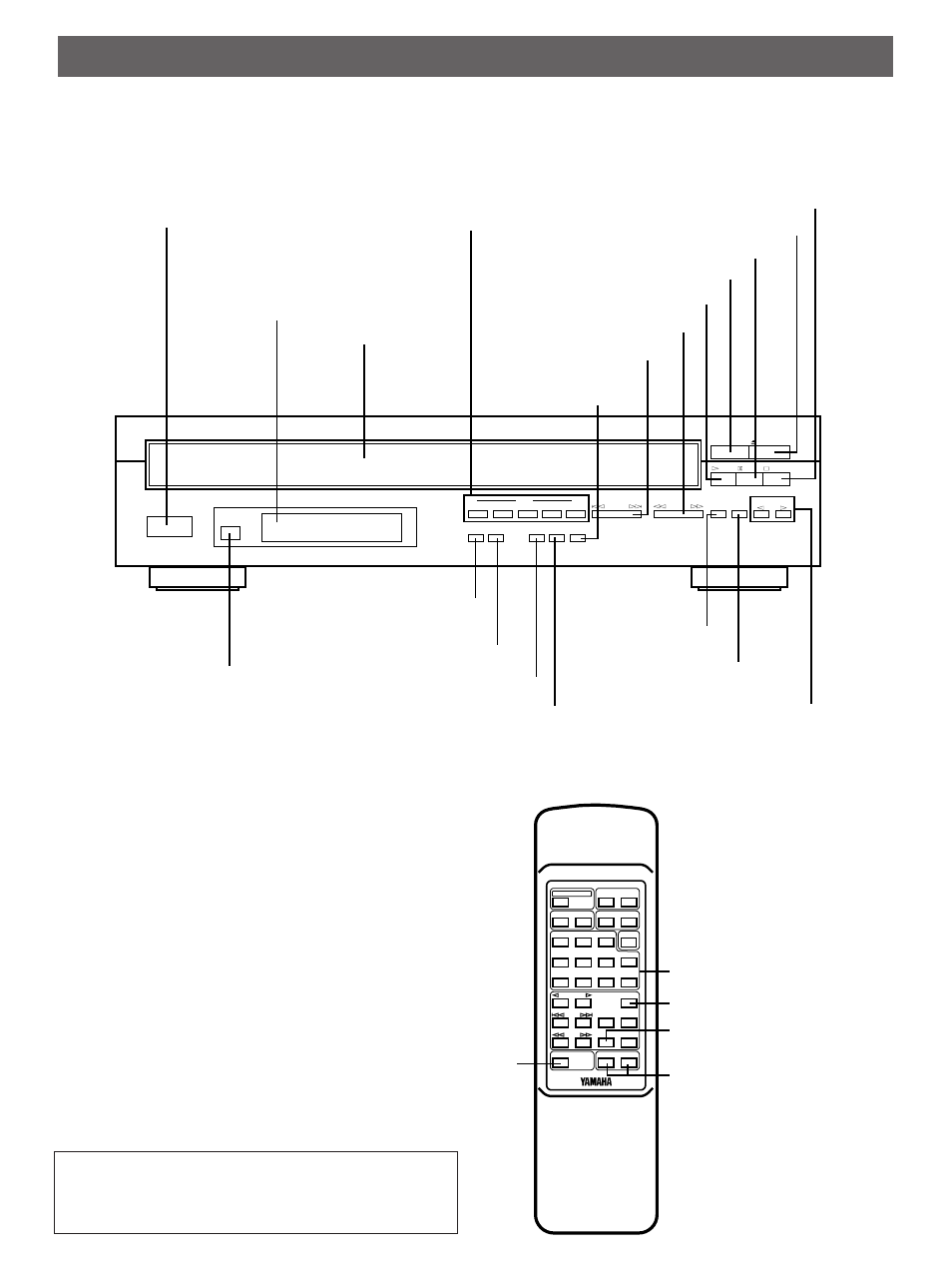

IDENTIFICATION OF COMPONENTS
FRONT PANEL
REMOTE CONTROL TRANSMITTER
The control functions on the main unit and on the remote
control transmitter are virtually identical, with the exceptions
described below.
POWER
Display panel
Remote control sensor
POWER switch (p. 6)
Disc tray (p. 6)
buttons (p. 6) DISC SKIP
RANDOM button (p. 10)
REPEAT
button (p. 13)
PROG button (p. 11)
DIMMER button (p. 8)
button (p. 12) CLEAR
OPEN/CLOSE button (p. 6)
STOP button (p. 7)
button (p. 6) PLAYXCHANGE
button (p. 6) PLAY
button (p. 7) PAUSE
SEARCH button (p. 8)
SKIP button (p. 7)
select button (p. 6)
MODE
DISC -select buttons (p. 6)
TIME
1 2 3 4 5 SKIP SEARCH
PROG
PLAYXCHANGE OPEN/CLOSE
PLAY STOP
DISC SKIP
CLEAR
REPEAT RANDOM
DISC
MODE DIMMER
PAUSE
Disc play
TIME display mode
select button (p. 9)
10
DIMMER TIME OPEN/CLOSE
PROG CLEAR
MODE 1 2 3
4 5 6
7 8 9 0
+
PLAY PAUSE
SEARCH STOP INDEX
OUTPUT LEVEL + –
RANDOM
SKIP
SYNCHRO
REPEAT
DISC SKIP
DISC
SCAN
Numeric buttons (p. 7)
INDEX button (p. 13)
SYNCHRO button (p. 14)
OUTPUT LEVEL buttons (p. 9)
(“+” is identical with “UP”
and “–” with “DOWN” of the
OUTPUT LEVEL control
on the main unit.)
DISC SCAN button (p. 8)
* ( ) indicates the page number on which the control part is best described.
This manual mainly describes how to operate this unit by
using the front panel buttons. To operate this unit on the
remote control transmitter, use buttons with the same name
as those on the front panel.
(p. 15)
