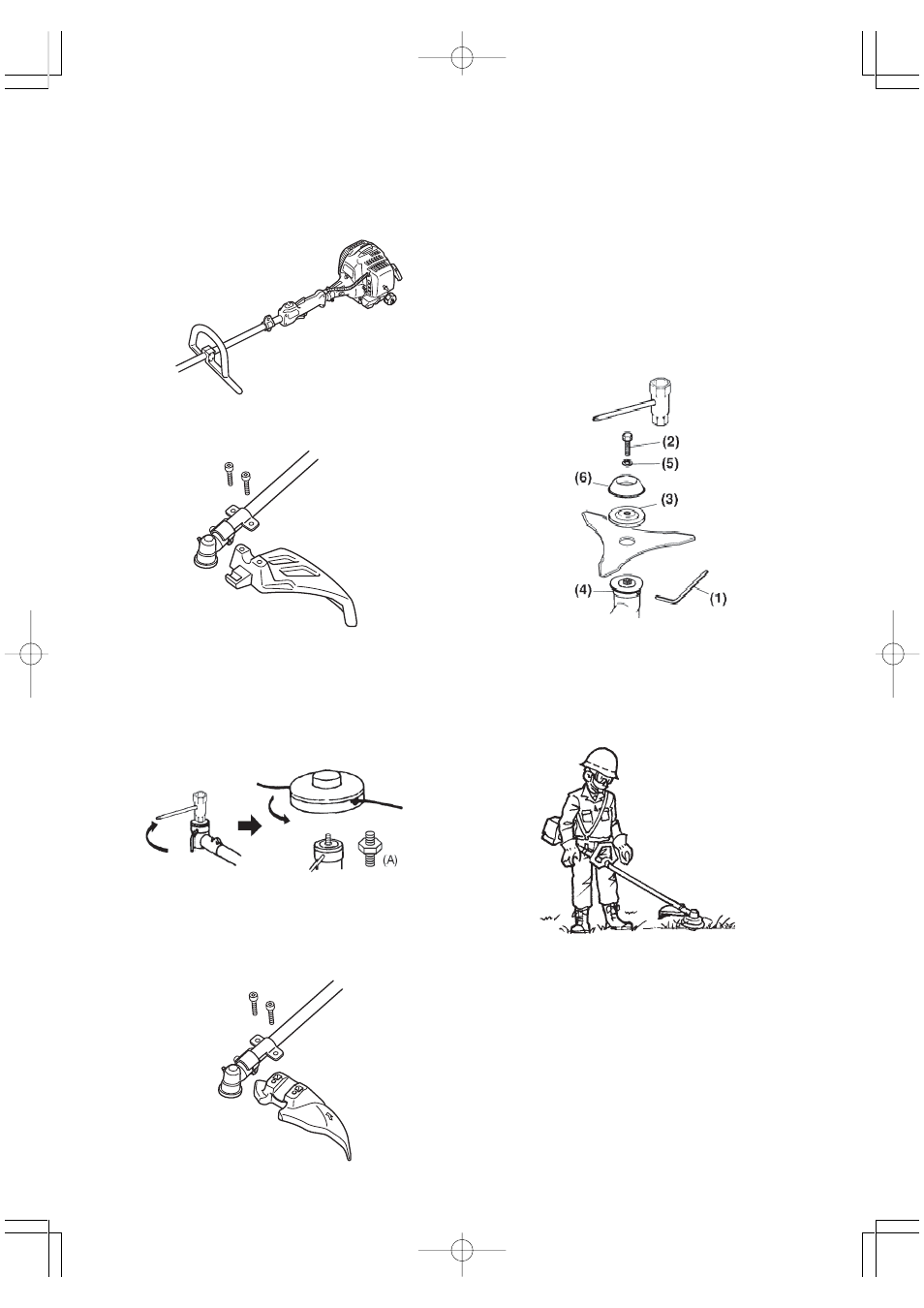

BLADE
1. Put the angled bar into the side holes of the inner
holder and the gearcase.
2. Remove the blade bolt (Lefthanded) and the outer
holder from the gearshaft.
3. Put the blade onto the inner holder. Make the marked
side face the holder.
4. Put the outer holder onto the gearshaft making the
recessed side face the blade.
5. Fasten the blade by the blade bolt with the spring
washer and the bolt cover.
BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Slide clamp up or down until unit balances with head
aparting from the ground when using it.
INSTALLING HANDLE
• Mount the handle to the shaft tube and clamp it at a
location that is comfortable to you.
INSTALLING DEBRIS GUARD FOR LINE HEAD
Attach the debris guard (RED) with the bolts provided.
INSTALLING LINE HEAD
1. While locking the gear shaft by inserting the supplied
tool into the upper holder on the gear box, loosen
and remove the bolt (left-handed).
2. Fit the line head assembly to the gear shaft by using
bolt (A). Hand tighten it securely.
INSTALLING DEBRIS GUARD FOR METAL BLADE
Attach the debris guard (BLACK) with the bolts pro-
vided.
