Page 35
31
XM SATELLITE RADIO TUNING
BA
S
IC
OPE
R
A
T
IO
N
This section describes the functions of each control used
for the XM Satellite Radio tuning.
The following controls on the front panel and the remote controls
are only available when
XM
is selected as the input source and
the XM Connect-and-Play digital antenna accessory is connected
to the
XM
jack on the rear panel of this unit (see “XM Satellite

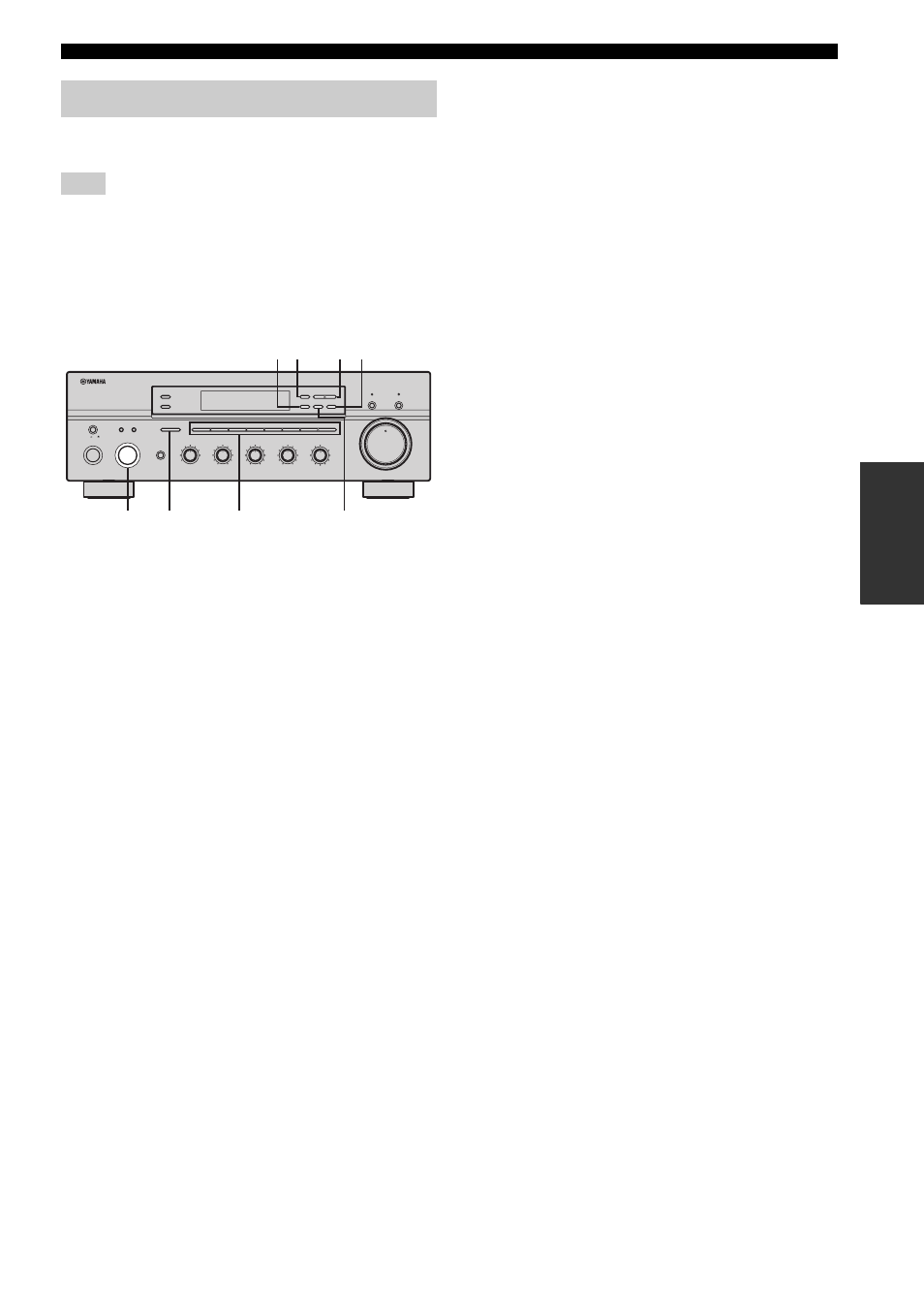

■ Controls on the front panel
1 SEARCH MODE
Switches between the All Channel Search, Category
Search, and Preset Search modes (see page 35).
2 XM ANT (ANTENNA)
Shows the reception level of the XM Connect-and-Play
digital antenna (sold separately).
3 TUNING/CH l / h
All Channel Search mode
Searches for a radio channel within all channels.
Press and hold for quick search.
Category Search mode
Searches for a radio channel within the selected
category. Press and hold for quick search.
Preset Search mode
Selects the preset channel number (1 to 8).
4 DISP (DISPLAY)
Switches the XM Satellite Radio information shown in the
front panel display between channel number/name,
category and artist name/song title (see page 34).
5 INPUT selector
Selects XM as the input source.
6 CATEGORY
All Channel Search mode
Switches between channel categories while staying in
the All Channel Search mode.
Category Search mode
Switches between channel categories.
Preset Search mode
Selects the preset channel group (A to E).
7 Preset channel number buttons
Selects the preset channel number (1 to 8) directly.
Pressing these buttons switches the search mode to the
Preset Search mode.
8 MEMORY
Stores a radio channel in the system memory.
XM Satellite Radio functions
Note
ON/OFF
INPUT
MAIN ZONE
PHONES
BASS
MASTER
SPEAKERS
ON
OFF
CD DIRECT AMP
PURE DIRECT
5
5
1
0
1
4
4
2
2
3
3
+
–
VOLUME
l TUNING/CH h
ZONE 2 ON/OFF
ZONE CONTROL
FM/AM
EDIT
SEARCH MODE
A/B/C/D/E
1
2
3
4
5
6
7
8
CATEGORY
MEMORY
MAN'L/AUTO FM
TUN MODE/DISP
AUTO/MAN'L
B
A
TREBLE
5
5
1
0
1
4
4
2
2
3
3
+
–
BALANCE
5
5
1
0
1
4
4
2
2
3
3
R
L
LOUDNESS
5
7
1
FLAT
6
4
8
2
10
–30dB
3
9
REC OUT
MD/TAPE
CD
XM
DVD
VCR
TUNER
DTV/CBL
PHONO
XM/ANT
6
7
5
1
3 4
2
8
0
12
12
2
8
4
∞
20
20
60
60
26
26
40
40
16
16
-dB
-dB
