YM1500 PARTS LIST

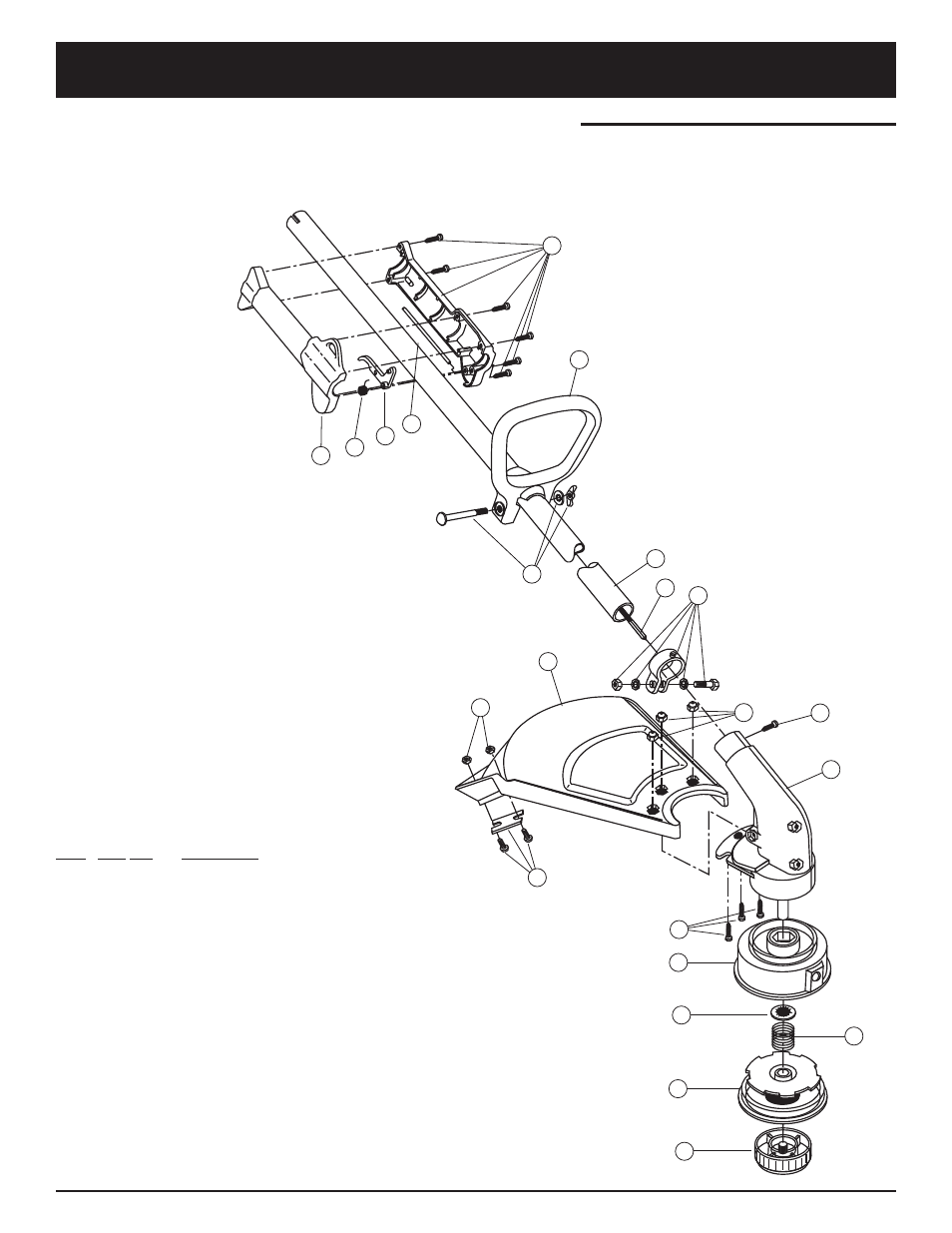

BOOM AND TRIMMER PARTS - MODEL YM1500
2-CYCLE GAS TRIMMER
Item Part No. Description
1 791-182069 Throttle Housing Assembly (includes 2 & 3)
2 791-610314 Throttle Trigger Spring
3 791-181556 Throttle Trigger
4 753-04901 Throttle Cable
5 791-153064 D-Handle (includes 6)
6 791-153317 D-Handle Hardware
7 753-04828 Drive Shaft Housing
8 753-04251 Flexible Drive Shaft
9 791-153597 Lower Clamp Assembly (includes 13)
10 791-180547 Guard Mounting Screw Assembly
11 791-180548 Guard Assembly (includes 12)
12 791-180553 Blade Assembly
13 791-145569 Anti-Rotation Screw
14 791-180549 Gearbox Assembly (includes 15)
15 791-153619 Outer Spool Assembly (includes 16)
16 791-610660 Retainer
17 791-610317B Spring
18 753-1155 Inner Reel
19 791-153066B Bump Head Knob Assembly
1
1
2
3
4
5
6
7
8
9
12
11
10 13
14
12
10
15
16
17
18
19
