■ BCZ2601S/BCZ2601SU/BCZ2601SW/BCZ2601S-CA/BCZ2601SU-CA/BCZ2601SW-CA
Overall size(LxWxH)
BCZ2601S/BCZ2601SU/BCZ2601S-CA/BCZ2601SU-CA ······················· 72.4(1840)x9.1(230)x12.8(325) in(mm)
BCZ2601SW/BCZ2601SW-CA ······························································· 72.4(1840)x24.8(630)x19.1(485) in(mm)
Dry weight
BCZ2601S/BCZ2601SU/BCZ2601S-CA/BCZ2601SU-CA··································· 11.4 lbs (5.2kg)/11.0 lbs (5.0kg)
BCZ2601SW/BCZ2601SW-CA ······································································································ 12.7 lbs (5.8kg)
Engine Type···························································································································· Air-cooled 2-stroke gasoline
Model······················································································································································· GZ25N25
Displacement ····························································································································· 1.6cu-in (25.4cm
3 )
Max. output ········································································································· 1.2Hp (0.9kW)at 7500/min -1 (rpm)
Idle speed ·······························································································································3000±200/min -1 (rpm)
Fuel ····························································································································· Mixture(Gasoline 50 : Oil 1)
(when using RedMax/ZENOAH genuine oil)
Carburetor ························································································································· Walbro Diaphragm type
Spark plug ··········································································································································NGK CMR7H
Fuel tank capacity ······································································································································22.0 fl.oz (0.65 )
Transmission··················································································································· Centrifugal clutch, Rigid driveshaft
Reduction ratio ····························································································································································· 1.357
Cutting head rotating direction ························································································ Counter-clockwise(Operator view)
Durability period··························································································································································300hrs.
Standard Accessories
4 in. 2-line Head ·············································································································································· 1 pc.
Shoulder Strap ················································································································································ 1 pc.
Goggle····························································································································································· 1 pc.
Tool Kit ···························································································································································· 1 pc.
Specifications are subject to change without notice.
4

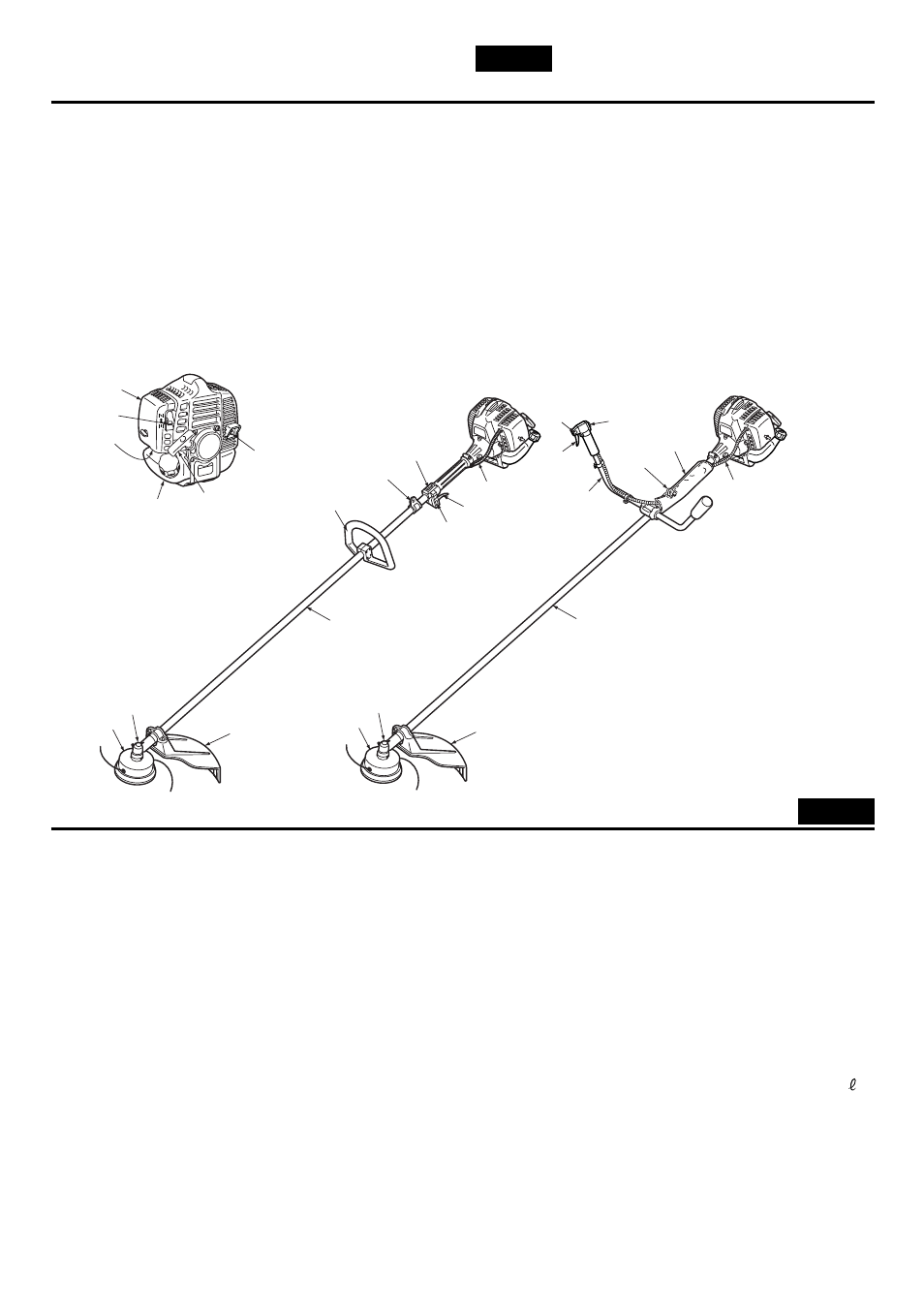

1. Parts location
English
English
BCZ2601S
BCZ2601SU
BCZ2601S-CA
BCZ2601SU-CA
BCZ2601SW
BCZ2601SW-CA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
7
4
2
5
3
6
18
8
9
10
1. Loop handle
2. Shoulder strap hanger
3. Ignition switch
4. Throttle cable
5. Throttle lever
6. Throttle set button
7. Drive shaft housing
8. Debris guard
9. Cutting line head
10. Gear case
11. Spark arrester
12. Starter knob
13. Fuel tank
14. Primer pump
15. Choke lever
16. Air cleaner cover
17. Handle
18. Protector
