Features
Front Panel Details

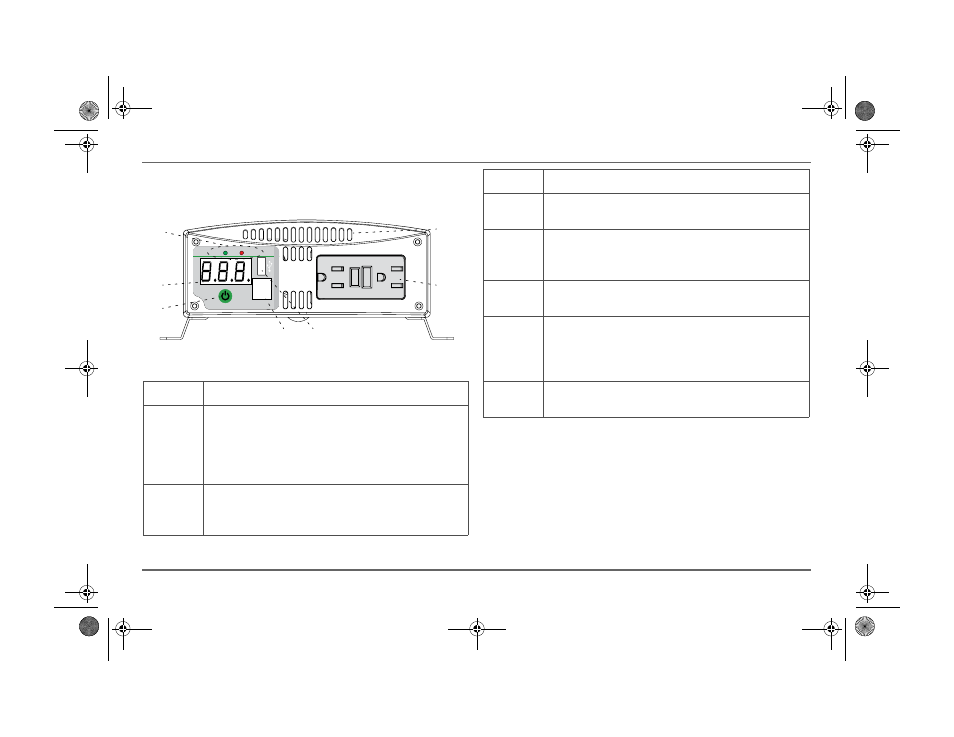

Figure 2 PROwatt SW Inverter Front Panel (PROwatt SW 600 shown)
Feature Description
1 Indicator LEDs
Green LED indicates that the unit is on and receiving
power. When a shutdown occurs due to an error
condition the Green LED remains on.
Red LED indicates an error or alarm condition.
2 Digital Display
Shows input voltage (in volts), output power (in
kilowatts), and error code information.
REMOTE
FAULT POWER
1
2
7
6
3
5 4
3 Power Switch Button
Turns the inverter ON or OFF.
4 Remote Switch Port
Use to connect the optional PROwatt Remote Panel
via a communications cable.
5 USB Port
Powers and charges USB-enabled devices.
6 GFCI-protected AC Outlets
Equipped with two AC outlets that are protected by a
standard Ground Fault Circuit Interruptor (GFCI)
device with reset and test buttons.
7 Ventilation Holes
Allows internal heat to escape.
Feature Description
