Fig.5 clutch, oil pump, starter, G3400 – Zenoah G3400 User Manual
Page 6

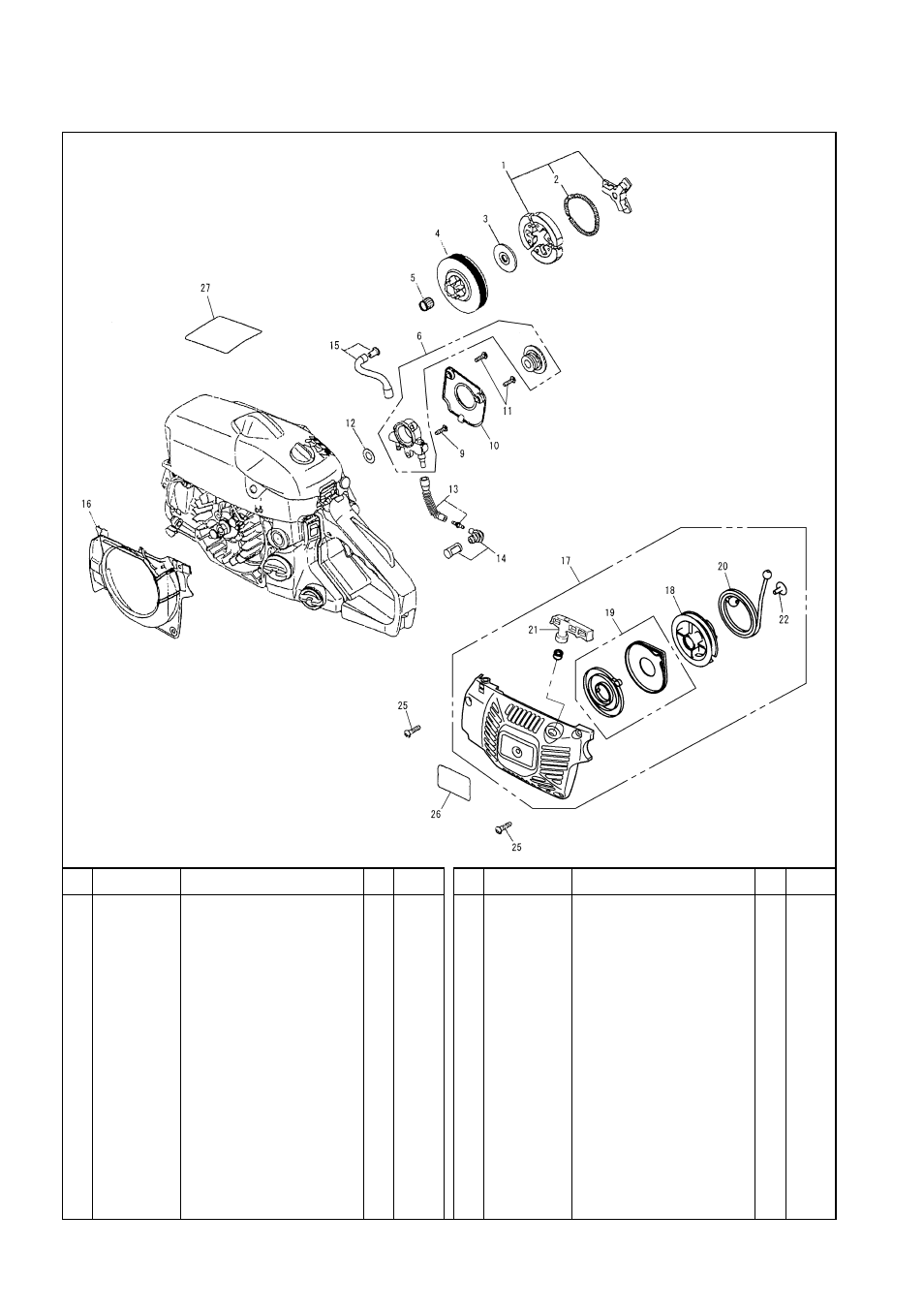

Fig.5 CLUTCH, OIL PUMP, STARTER
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
19
2850-75301 • Spring
1
20
3317-75410 • Rope
1
21
3330-75421 • Knob
1
22
1850-75151 • Screw
1
25
8488251911 Screw
3
26 848C4R90C0 Label 1
27
848C4R90F0 Label 1
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
1
848C405121 Clutch ass'y
1
2
2870-51230 • Spring
1
3
2850-51211 Plate
1
4
2860-51111 Drum
1
5
3310-51310 Bearing
1
6
848CA06700 Oil pump ass'y
1
• Oil pump
1
• Worm
1
9
2670-55410 Screw
2
10
T2100-55610 Cover, pump
1
11
2670-55410 Screw
2
12
2850-55211 Washer
1
13
848C306732 Pipe in comp.
1
14
T2100-23200 Filter comp.
1
15
T2100-21400 Pipe out comp.
1
16
T2100-75610 Fan cover
1
17
T2100-75000 Starter ass’y
1
18
T2100-75210 • Reel
1
G3400
