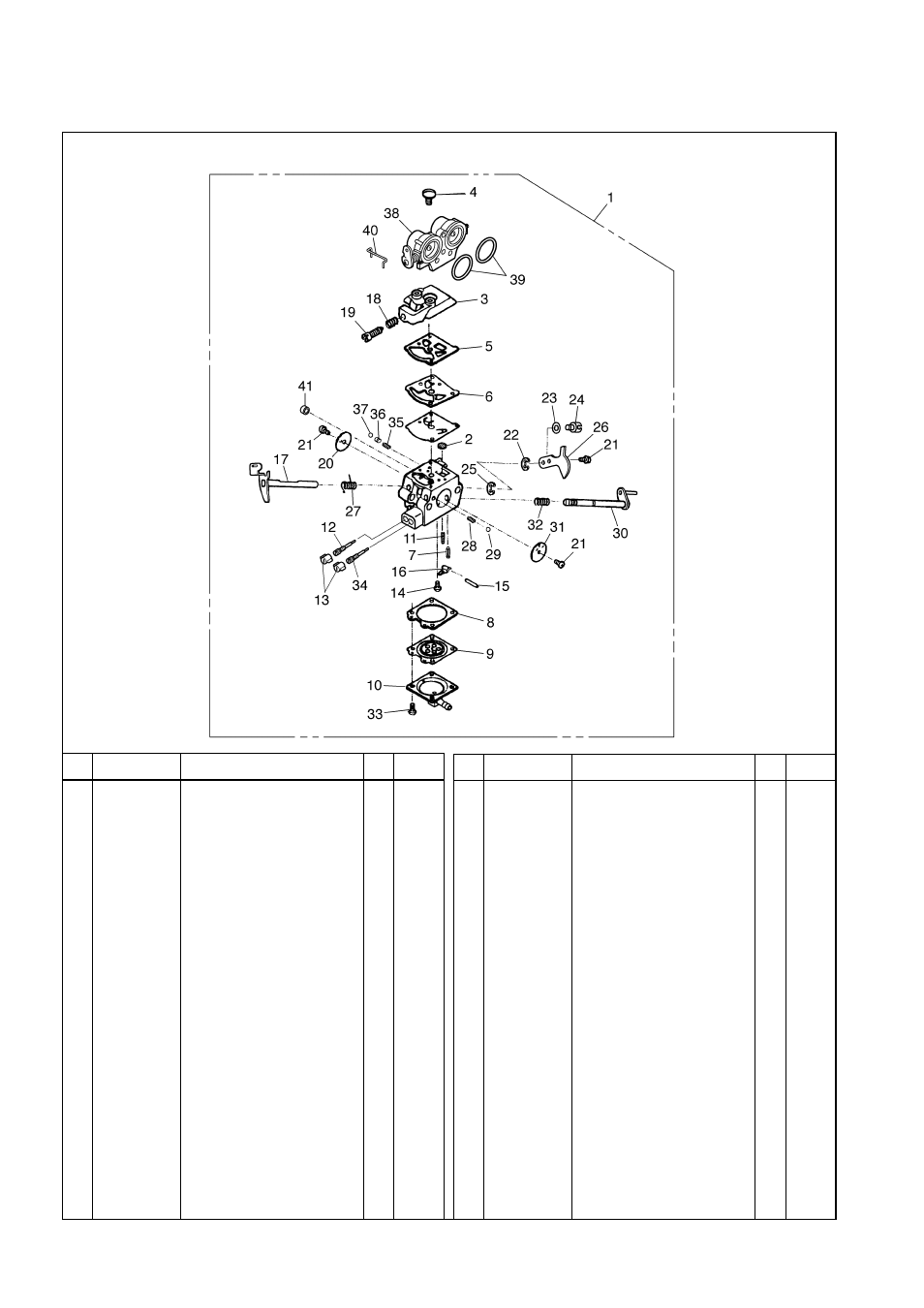

Fig.4 carburetor – Zenoah BCZ5010DW User Manual
Page 8
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
1
848H708104 CARBURETOR ASSY
1
2
3306-81380 • SCREEN
1
3
848H7081H0 • COVER
1
4
848H7081P0 • SCREW
1
5
3304-81140 • GASKET
1
6
1172-81150 • DIAPHRAGM
1
7
3356-81310 • VALVE
1
8
2850-81290 • GASKET
1
9
848HE081K0 • DIAPHRAGM
1
10
848H7081G0 • COVER
1
11
1488-81370 • SPRING
1
12
848H7383G0 • NEEDLE
1
13
3415-81490 • CAP
2
14
3310-81240 • SCREW
1
15
3310-81250 • PIN
1
16
3310-81230 • LEVER
1
17
848H7081T1 • SHAFT
1
18
1282-81460 • SPRING
1
19
1145-81540 • SCREW
1
20
848H7081U1 • VALVE
1
21
2880-81470 • SCREW
3
22
1751-81130 • RING
1
23
1751-81190 • WASHER
1
Q'TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
24
1751-81141 • SWIVEL
1
25
1148-81390 • RING
1
26
848H7181Z1 • LEVER, throttle
1
27
2670-81410 • SPRING
1
28
3350-81350 • SPRING
1
29
3350-81220 • BALL
1
30
848H7181E0 • SHAFT ASSY, choke
1
31
848H7480C0 • VALVE
1
32
3350-81391 • SPRING
1
33
3310-81351 • SCREW
4
34
2812-81330 • NEEDLE
1
35
2810-81530 • SPRING
1
36
2812-81510 • PISTON
1
37
2812-81520 • BALL
1
38
848H708200 • BODY ASSY, air valve
1
39
848H7082C0 • RING, packing
2
40
848H7082B0 • LINK ROD
1
41
848GG080D0 • PLUG, cup
1
Fig.4 CARBURETOR
BCZ4505DW/BCZ4505CL
