GB-8
BCZ3000DL / BCZ3000DW

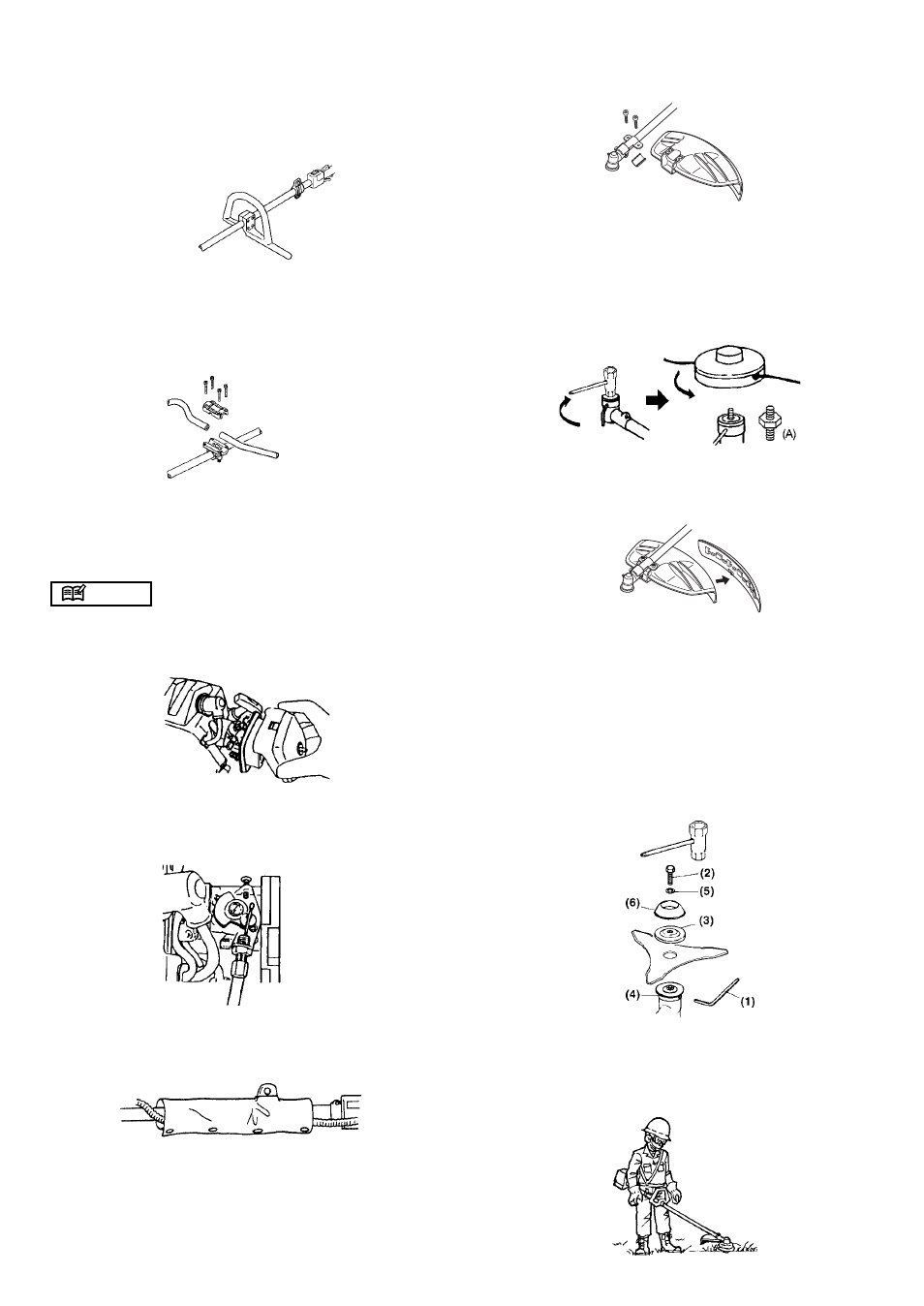

INSTALLING HANDLE (BC3000DL)
• Mount the handle to the shaft tube and clamp it at a
location that is comfortable to you.
INSTALLING HANDLE (BC3000DW)
1. Loosen the 4bolts on the upper cap and insert the
handles equally. Retighten the bolts.
2. Put the handle assembly into the bracket and put the
upper cap over it. Tighten the cap securely.
CONNECTING THROTTLE WIRE (BC3000DW)
1. Remove the air cleaner cover.
2. Connect the end of the throttle wire to the joint on the
top of the carburetor.
NOTE
• When installing the cleaner cover, make sure to put
the high-tension wire in it.
CONNECTING SWITCH WIRES (BC3000DW)
• Connect the switch wires between the engine and the
main unit. Pair the wires of the same color.
PROTECTOR (BC3000DW)
• Wrap the protector around the outer pipe as shown in
the figure, and fasten the hooks.
INSTALLING DEBRIS GUARD FOR LINE HEAD
• Attach the debris guard with the bolts provided while
inserting the spacer (A) between the guard and the
pipe.
6. Set up
INSTALLING LINE HEAD
1. While locking the gear shaft by inserting the supplied
tool into the upper holder on the gear box, loosen
and remove the bolt (left-handed).
2. Fit the line head assembly to the gear shaft by using
bolt (A). Hand tighten it securely.
INSTALLING DEBRIS GUARD FOR METAL BLADE
• When using metal blade, make sure to remove the
guard skirt.
BLADE
1. Put the angled bar into the side holes of the inner
holder and the gearcase.
2. Remove the blade bolt (Lefthanded) and the outer
holder from the gearshaft.
3. Put the blade onto the inner holder. Make the marked
side face the holder.
4. Put the outer holder onto the gearshaft making the
recessed side face the blade.
5. Fasten the blade by the blade bolt with the spring
washer and the bolt cover .
BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Slide clamp up or down until unit balances with head
aparting from the ground when using it.
