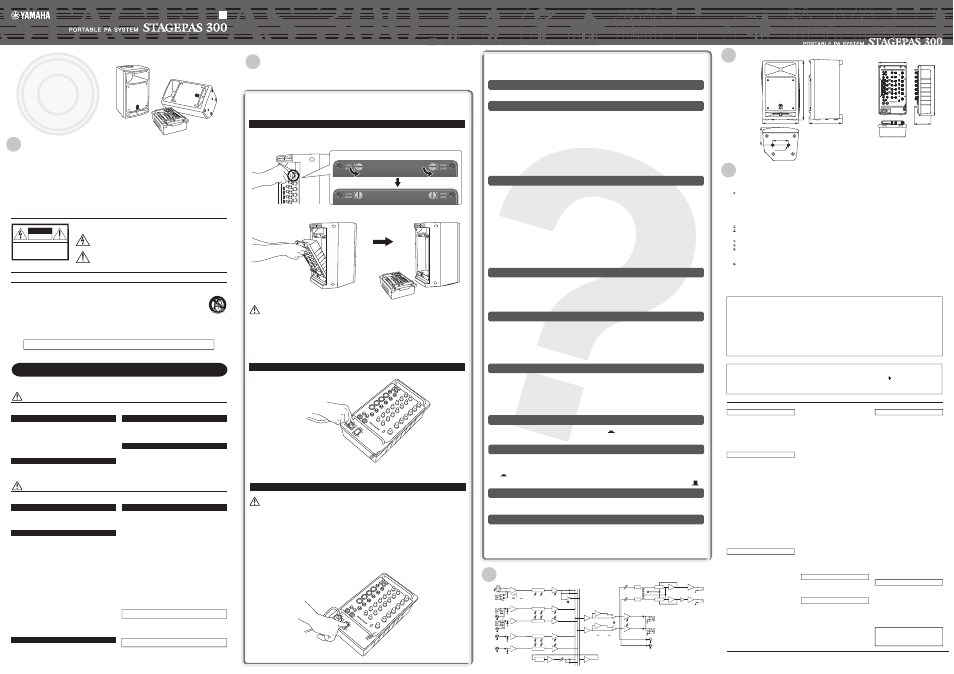

Yamaha STAGEPAS 300 User Manual

Risk of electric shock do not open, Before turning on the mixer, Troubleshooting

Features

■

Two-way, 8-inch (20 cm) speaker system

The built-in speakers deliver high-quality powerful sound from an exceptionally compact cabinet.
The scratch-resistant speakers are rugged enough for outdoor use.

■

Powered mixer

The powered mixer is a convenient, high-performance all-in-one unit that includes EQ and reverb. With four mono
inputs and two stereo inputs, the STAGEPAS 300 can be connected to a wide range of instruments and devices.

■

Convenient storage

The STAGEPAS 300 can be used in even the most cramped quarters, inside or outside, since the mixer is
built into one of the speaker cabinets. The other speaker has a special compartment for storing speaker
cables and microphones, letting you put all you need for your performance in one convenient place.

Package Contents

Two speakers, mixer, panel, power cord, two speaker cables, Owner's Manual (this booklet)

NOTE: The mixer and the panel are installed in the speakers when the STAGEPAS 300 leaves the factory.

Make sure that the mixer's power switch is turned off.

Connect the included power cord to the [AC IN] jack.

Plug the power cord into a power outlet.

•To avoid any loud, unexpected noise from the speakers, first turn on the power to those connected

devices that are closest to the sound source.
Example: Sound source (CD player or instrument)

→ STAGEPAS 300

When turning off the power to the system, reverse the order described above.

• Before turning on the power, set the LEVEL controls and MASTER LEVEL control to their minimum

setting (zero).

• Before connecting any devices including the supplied speakers, make sure to turn off the power for

all devices. To avoid any possible malfunction, use only the speaker cables included with the device.

Press the mixer's power switch to the ON position (the POWER indicator lights).
To turn the power off, press the power switch to the OFF position (the POWER indicator turns off).

Dimensions

96.3

160

290

MSC

Mixer

Unit: mm

Speaker

255

455.5

275

2-M8x25

120

137

Be sure that the mixer's power switch is turned off.

Use a screwdriver or coin to turn each screw on the mixer from LOCK to OPEN until it clicks.

Securely hold the mixer's handles to remove it from the speaker.

Use only the mixer's handles when removing the mixer from the speaker and when carrying the mixer
separate from the speaker.

NOTE:

The mixer can also be used when installed in the speaker.

When you install the mixer into the speaker, make sure to match the indentations on the speaker cabinet to
the corresponding parts on the mixer, and then turn each screw from OPEN to LOCK until it clicks.

Before turning on the mixer

Remove the mixer

Power supply connections

Turning the power on/

Turning the power on/ off

off

Turning the power on/ off

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

C AU T I O N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The above warning is located on the bottom
of the mixer and the rear of the speakers.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to
the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
product.

Explanation of Graphical Symbols

IMPORTANT SAFETY INSTRUCTIONS

1 Read

these

instructions.

2 Keep

these

instructions.

3 Heed

all

warnings.

4 Follow

all

instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8 Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.

13 Unplug this apparatus during lightning storms or when unused for

long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

(98-6500)

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock,
short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

Power supply/Power cord

• Only use the voltage specified as correct for the device. The required voltage is

printed on the name plate of the device.

• Use only the included power cord.

• Do not place the power cord near heat sources such as heaters or radiators, and

do not excessively bend or otherwise damage the cord, place heavy objects on
it, or place it in a position where anyone could walk on, trip over, or roll anything
over it.

Do not open

• Do not open the device or attempt to disassemble the internal parts or modify

them in any way. The device contains no user-serviceable parts. If it should
appear to be malfunctioning, discontinue use immediately and have it inspected
by qualified Yamaha service personnel.

Water warning

• Do not expose the device to rain, use it near water or in damp or wet conditions,

or place containers on it containing liquids which might spill into any openings.

• Never insert or remove an electric plug with wet hands.

If you notice any abnormality

• If the power cord or plug becomes frayed or damaged, or if there is a sudden

loss of sound during use of the device, or if any unusual smells or smoke should
appear to be caused by it, immediately turn off the power switch, disconnect the
electric plug from the outlet, and have the device inspected by qualified Yamaha
service personnel.

• If this device should be dropped or damaged, immediately turn off the power

switch, disconnect the electric plug from the outlet, and have the device
inspected by qualified Yamaha service personnel.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or
other property. These precautions include, but are not limited to, the following:

Power supply/Power cord

• Remove the electric plug from the outlet when the device is not to be used for

extended periods of time, or during electrical storms.

• When removing the electric plug from the device or an outlet, always hold the

plug itself and not the cord. Pulling by the cord can damage it.

Location

• Before moving the device, remove all connected cables.

• Do not use the device in a confined, poorly-ventilated location. Make sure that

there is adequate space between the mixer and surrounding walls or other
devices: at least 30 cm at the sides, 30 cm behind and 30 cm above. If the mixer
is to be used installed into the speaker cabinet, make sure to allow adequate
space between the speaker and the surrounding walls or other devices: at least
30 cm at the sides, 30 cm behind and 30 cm above. Inadequate ventilation can
result in overheating, possibly causing damage to the device(s), or even fire.

• Do not use the speaker's handles for suspended installation. Doing so can result

in damage or injury.

• Avoid setting all equalizer controls and LEVEL controls to their maximum.

Depending on the condition of the connected devices, doing so may cause
feedback and may damage the speakers.

• Do not expose the device to excessive dust or vibrations, or extreme cold or heat

(such as in direct sunlight, near a heater, or in a car during the day) to prevent
the possibility of panel disfiguration or damage to the internal components.

• Do not place the device in an unstable position where it might accidentally fall over.

• Do not block the vents. This mixer has ventilation holes at the top to prevent the

internal temperature from becoming too high. In particular, do not place the
device on its side or upside down. Inadequate ventilation can result in
overheating, possibly causing damage to the device(s), or even fire.

• Do not use the device in the vicinity of a TV, radio, stereo equipment, mobile

phone, or other electric devices. Doing so may result in noise, both in the device
itself and in the TV or radio next to it.

Connections

• Before connecting the device to the included speakers or other devices, turn off

the power for all devices. Before turning the power on or off for all devices, set
all volume levels to minimum.

• For the SPEAKERS jacks, Use only the included speakers and speaker cables. Use of

other types of speakers and cables may result in damage to the device(s), or even fire.

Handling caution

• When turning on the AC power in your audio system, always turn on the device

LAST, to avoid speaker damage. When turning the power off, the device should
be turned off FIRST for the same reason.

• Do not insert your fingers or hands in any gaps or openings on the device

(vents,, ports, etc.).

• Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any

gaps or openings on the device (vents, ports, etc.) If this happens, turn off the
power immediately and unplug the power cord from the AC outlet. Then have
the device inspected by qualified Yamaha service personnel.

• Do not use the device for a long period of time at a high or uncomfortable

volume level, since this can cause permanent hearing loss. If you experience
any hearing loss or ringing in the ears, consult a physician.

• Do not operate the device if the sound is distorting. Prolonged use in this

condition could cause overheating and result in fire.

• Do not rest your weight on the device or place heavy objects on it, and avoid

use excessive force on the buttons, switches or connectors.

XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground,
pin 2: hot (+), and pin 3: cold (-).

Interference From Cell Phones
Using a cell phone near the speaker system can induce noise. If this occurs,
move the cell phone further away from the speaker system.

Yamaha cannot be held responsible for damage caused by improper use or
modifications to the device.

Always turn the power off when the device is not in use.
The performance of components with moving contacts, such as switches, volume
controls, and connectors, deteriorates over time. Consult qualified Yamaha service
personnel about replacing defective components.

Illustrations in this manual are for explanatory purposes only,
and may not match the actual appearance of the product during operation.

Company names and product names used in this Owner's Manual are trademarks
or registered trademarks of their respective owners.

(5)-3

Caution

Power does not turn on

Is the included power cord correctly connected to a power outlet?

Power shuts down suddenly

Is the volume set at high for an extended period of time?

If the mixer is used at a volume beyond the permissible level, the protection circuit automatically turns the power off.
Turn on the power again only after the mixer cools, since it cannot be turned on until the internal temperature goes down.
Reduce the volume with the MASTER LEVEL control so that the LIMITER indicator flashes only briefly in response to the
highest transient peaks.

Is the vent on the top panel of the mixer blocked?

Since inadequate ventilation can result in overheating the mixer, the protection circuit may come on
automatically and the power may be turned off.
Turn on the power again only after the mixer cools, since it cannot be turned on until the internal
temperature goes down.

No sound is heard

Are external instruments (including a microphone) or speakers correctly connected to the mixer?

Are the LEVEL controls of all relevant channels and/or the MASTER LEVEL control set to appropriate levels?

Are the SPEAKER L/R jacks connected to the included speakers?

Are the included speaker cables used?
If the connector of a speaker cable other than the included speaker cable touches any metal parts
such as the mixer's handle, no sound may result because of a short circuit.
Use only the speaker cables included with the device.

Is the POWER indicator flashing?
There may be a short in the speaker cable or the connection may be faulty. Check that the speaker
cable is correctly connected to the mixer and reapply the power.

If sound is not still output, contact your Yamaha dealer.

Sound is interrupted

Is the volume set too high?
If the mixer is used at a volume beyond the permissible level, the sound may be interrupted as the
protection circuit automatically turns the power off and resets repeatedly.
Reduce the volume with the MASTER LEVEL control so that the LIMITER indicator flashes only briefly
on the highest transient peaks.

Sound is distorted or noise is produced

Are the LEVEL controls of all relevant channels and/or the MASTER LEVEL control set to appropriate levels?

Are the MIC/LINE switches of each channels set appropriately?

Are both XLR type and phone type jacks on channels 1–4 being used (connected) at the same time?

Please connect to only one of these jacks on each channel.

Is the input signal from the connected device set to an appropriate level?

Sound is not loud enough

Are the LEVEL controls of all relevant channels and/or the MASTER LEVEL control set to appropriate levels?

Are the MIC/LINE switches of each channels set appropriately?

Are both XLR type and phone type jacks on channels 1–4 being used (connected) at the same time?

Please connect to only one of these jacks on each channel.

Is the input signal from the connected device set to an appropriate level?

Reverb is not applied to the sound

Are the REVERB switches of each channels set to ON ( )?

Is the REVERB control set to an appropriate level?

Changing the sound quality

Are the Equalizer controls (HIGH/LOW) set to appropriate levels?

If you want to get a more powerful sound from the speakers, set the SPEECH/MUSIC switch to MUSIC
( ).

If you want to get a clearer sound for announcements, set the SPEECH/MUSIC switch to SPEECH ( ).

Using a single speaker

You can use a single speaker. If you use a single speaker, the mixer outputs just one channel of the
stereo signal, left or right.

Outputting the signal for monitoring

Connect a powered speaker to the MONITOR OUT jack. The MONITOR OUT jack outputs the signal

prior to routing through the MASTER LEVEL control. Adjust the level of output signal from the
MONITOR OUT jack with the MONITOR OUT control. The MONITOR OUT control does not affect the
MASTER LEVEL control. If the signals are output from the L (left) MONITOR OUT jack, the mixer feeds
the mixed L and R signals to the jack.

■General Specifications
Maximum Output Power

150 W+150 W/6

Ω @10 % THD at 1 kHz (SPEAKER L/R)

100 W+100 W/6

Ω @1 % THD at 1 kHz (SPEAKER L/R)

Frequency Response

-3 dB, 0 dB, +1 dB @20 Hz–20 kHz, 1 W Output/6

Ω (Without

MUSIC/SPEECH, EQ and SP EQ Circuit) (SPEAKER L/R)
-3 dB, 0 dB, +1 dB @20 Hz–20 kHz, +4 dBu 10 k

Ω Load

[MUSIC/SPEECH]switch=MUSIC (MONITOR OUT, REC OUT)

Total Harmonic Distortion

1 % @1 kHz, 50 W Output Power (SPEAKER L/R)
0.5 % @20 Hz–20 kHz, +14 dBu 10 k

Ω (MONITOR OUT, REC OUT)

Hum & Noise (20 Hz–20 kHz, Rs=150

Ω, MIC/LINE switch=MIC)

-65 dBu Residual output noise (SPEAKER L/R)
-90 dBu Residual output noise (MONITOR OUT, REC OUT)
-67 dBu @MONITOR OUT control & one CH LEVEL control at nominal
level (CH1–4)(MONITOR OUT)

Crosstalk (1 kHz)

-70 dB between input channels

Weight

18 kg (mixer and two speakers)

Power Consumption

70 W

Stereo Input Channel Equalization:

Shelving turnover/rolloff frequency: 3 dB before maximum cut or boost.
±15 dB
HIGH 10 kHz shelving
LOW 100 Hz shelving

■Speaker
Enclosure

Bass-reflex type

Speaker Unit

LF: 8" (20 cm) Cone
HF: 1" (2.54 cm) Compression Driver

Cross Over Frequency

4 kHz

Frequency Range

55 Hz–20 kHz

Maximum Output Level

112 dB (1 m)

Introduction

Thank you and congratulations on your

purchase of the Yamaha PORTABLE PA

SYSTEM STAGEPAS 300. The STAGEPAS

300 is a versatile, compact PA system

consisting of two speakers and a mixer. In

order to get the most out of your new
STAGEPAS 300 and its sophisticated

functions, we suggest you read through

this manual thoroughly. Also keep it

in a safe place for future

reference.

Troubleshooting

Specifications

Specifications and descriptions in this owner's manual are for information
purposes only. Yamaha Corp. reserves the right to change or modify
products or specifications at any time without prior notice. Since
specifications, equipment or options may not be the same in every locale,
please check with your Yamaha dealer.
European models
Purchaser/User Information specified in EN55103-1 and EN55103-2.
Inrush Current: 46A
Conforms to Environments: E1, E2, E3 and E4

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets

FCC requirements. Modifications not expressly approved by Yamaha may void your authority,

granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/or another product use only high

quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation

instructions. Failure to follow instructions could void your FCC authorization to use this product

in the USA.

3. NOTE: This product has been tested and found to comply with the requirements listed in FCC

Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides

a reasonable level of assurance that your use of this product in a residential environment will not

result in harmful interference with other electronic devices. This equipment generates/uses

radio frequencies and, if not installed and used according to the instructions found in the users

manual, may cause interference harmful to the operation of other electronic devices.

Compliance with FCC regulations does not guarantee that interference will not occur in all

installations. If this product is found to be the source of interference, which can be determined by

turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following

measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line

filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300

ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer

authorized to distribute this type of product. If you can not locate the appropriate retailer, please

contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave,

Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America

or its subsidiaries.

FCC INFORMATION (U.S.A.)

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.

(class B)

• This applies only to products distributed by Yamaha Music U.K. Ltd. (3 wires)

IMPORTANT NOTICE FOR THE UNITED KINGDOM

Connecting the Plug and Cord

WARNING: THIS APPARATUS MUST BE EARTHED

IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW

: EARTH

BLUE

: NEUTRAL

BROWN

: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured

markings identifying the terminals in your plug proceed as follows:

The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug which is

marked by the letter E or by the safety earth symbol or colored GREEN or GREEN-and-YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or

coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or

coloured RED.

For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.

Block Diagram

U.R.G., Pro Audio Division

008MW-E0 Printed in China

Yamaha Pro Audio global web site: http://www.yamahaproaudio.com/
Yamaha Manual Library:

http://www.yamaha.co.jp/manual/

PA26'

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.
135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: 416-298-1311

U.S.A.

Yamaha Corporation of America
6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: 714-522-9011

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de México S.A. de C.V.
Calz. Javier Rojo Gómez #1149,
Col. Guadalupe del Moral
C.P. 09300, México, D.F., México
Tel: 55-5804-0600

BRAZIL

Yamaha Musical do Brasil Ltda.
Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,
CEP 04534-013 Sao Paulo, SP. BRAZIL
Tel: 011-3704-1377

ARGENTINA

Yamaha Music Latin America, S.A.
Sucursal de Argentina
Olga Cossettini 1553, Piso 4 Norte
Madero Este-C1107CEK
Buenos Aires, Argentina
Tel: 011-4119-7000

PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.
Torre Banco General, Piso 7, Urbanización Marbella,
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: +507-269-5311

EUROPE

THE UNITED KINGDOM

Yamaha Music U.K. Ltd.
Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: 01908-366700

GERMANY

Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: 04101-3030

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Europe GmbH
Branch Switzerland in Zürich
Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: 01-383 3990

AUSTRIA

Yamaha Music Europe GmbH Branch Austria
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-60203900

CZECH REPUBLIC/SLOVAKIA/
HUNGARY/SLOVENIA

Yamaha Music Europe GmbH Branch Austria
Schleiergasse 20, A-1100 Wien, Austria
Tel: 01-602039025

POLAND

Yamaha Music Europe GmbH
Branch Sp.z o.o. Oddzial w Polsce
ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland
Tel: 022-868-07-57

THE NETHERLANDS/
BELGIUM/LUXEMBOURG

Yamaha Music Europe Branch Benelux
Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
Tel: 0347-358 040

FRANCE

Yamaha Musique France
BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: 01-64-61-4000

ITALY

Yamaha Musica Italia S.P.A.
Combo Division
Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: 02-935-771

SPAIN/PORTUGAL

Yamaha Música Ibérica, S.A.
Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid), Spain
Tel: 91-639-8888

SWEDEN

Yamaha Scandinavia AB
J. A. Wettergrens Gata 1, Box 30053
S-400 43 Göteborg, Sweden
Tel: 031 89 34 00

DENMARK

YS Copenhagen Liaison Office
Generatorvej 6A, DK-2730 Herlev, Denmark
Tel: 44 92 49 00

NORWAY

Norsk filial av Yamaha Scandinavia AB
Grini Næringspark 1, N-1345 Østerås, Norway
Tel: 67 16 77 70

RUSSIA

Yamaha Music (Russia)
Room 37, bld. 7, Kievskaya street, Moscow, 121059,
Russia
Tel: 495 626 5005

OTHER EUROPEAN COUNTRIES

Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: +49-4101-3030

AFRICA

Yamaha Corporation,
Asia-Pacific Sales & Marketing Group
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2303

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: 04101-3030

OTHER COUNTRIES

Yamaha Music Gulf FZE
LOB 16-513, P.O.Box 17328, Jubel Ali,
Dubai, United Arab Emirates
Tel: +971-4-881-5868

ASIA

THE PEOPLE'S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co.,Ltd.
2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,
Shanghai, China
Tel: 021-6247-2211

INDIA

Yamaha Music India Pvt. Ltd.
5F Ambience Corporate Tower Ambience Mall Complex
Ambience Island, NH-8, Gurgaon-122001, Haryana, India
Tel: 0124-466-5551

INDONESIA

PT. Yamaha Music Indonesia (Distributor)
PT. Nusantik
Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: 21-520-2577

KOREA

Yamaha Music Korea Ltd.
8F, 9F, Dongsung Bldg. 158-9 Samsung-Dong,
Kangnam-Gu, Seoul, Korea
Tel: 080-004-0022

MALAYSIA

Yamaha Music Malaysia, Sdn., Bhd.
Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: 3-78030900

SINGAPORE

Yamaha Music Asia Pte., Ltd.
#03-11 A-Z Building
140 Paya Lebor Road, Singapore 409015
Tel: 747-4374

TAIWAN

Yamaha KHS Music Co., Ltd.
3F, #6, Sec.2, Nan Jing E. Rd. Taipei.
Taiwan 104, R.O.C.
Tel: 02-2511-8688

THAILAND

Siam Music Yamaha Co., Ltd.
4, 6, 15 and 16th floor, Siam Motors Building,
891/1 Rama 1 Road, Wangmai,
Pathumwan, Bangkok 10330, Thailand
Tel: 02-215-2626

OTHER ASIAN COUNTRIES

Yamaha Corporation,
Asia-Pacific Sales & Marketing Group
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2303

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.
Level 1, 99 Queensbridge Street, Southbank,
Victoria 3006, Australia
Tel: 3-9693-5111

COUNTRIES AND TRUST
TERRITORIES IN PACIFIC OCEAN

Yamaha Corporation,
Asia-Pacific Sales & Marketing Group
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2303

HEAD OFFICE

Yamaha Corporation, Pro Audio Division
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2441

Owner’s Manual

LOCK

OPEN

INPUT

(CH1–4)

INPUT

(CH5/6)

LOW

HIGH

LOW

HIGH

LEVEL

REVERB

SUM

L/L+R

LIMITER

[-8dBu]

MONITOR
OUT

LIMITER

SP EQ

REVERB

MONITOR OUT

[-8dBu]

INPUT

(CH7/8)

LOW

HIGH

LEVEL

HPF

DIGITAL
EFFECT

MUSIC

LIMITER

MASTER LEVEL

SPEECH

MUSIC

REC OUT

SPEAKER OUT

MIC/ LINE

SPEECH

MUSIC

SPEECH/ MUSIC

-1

SP EQ

[+4dBu]

[-8dBu]

[+23dBu]

[+10dBu]

[-10dBu]

PAD:30dB

[-60–+20dBu]

[-50–+30dBu]

[-20–+20dBu]

EFFECT
