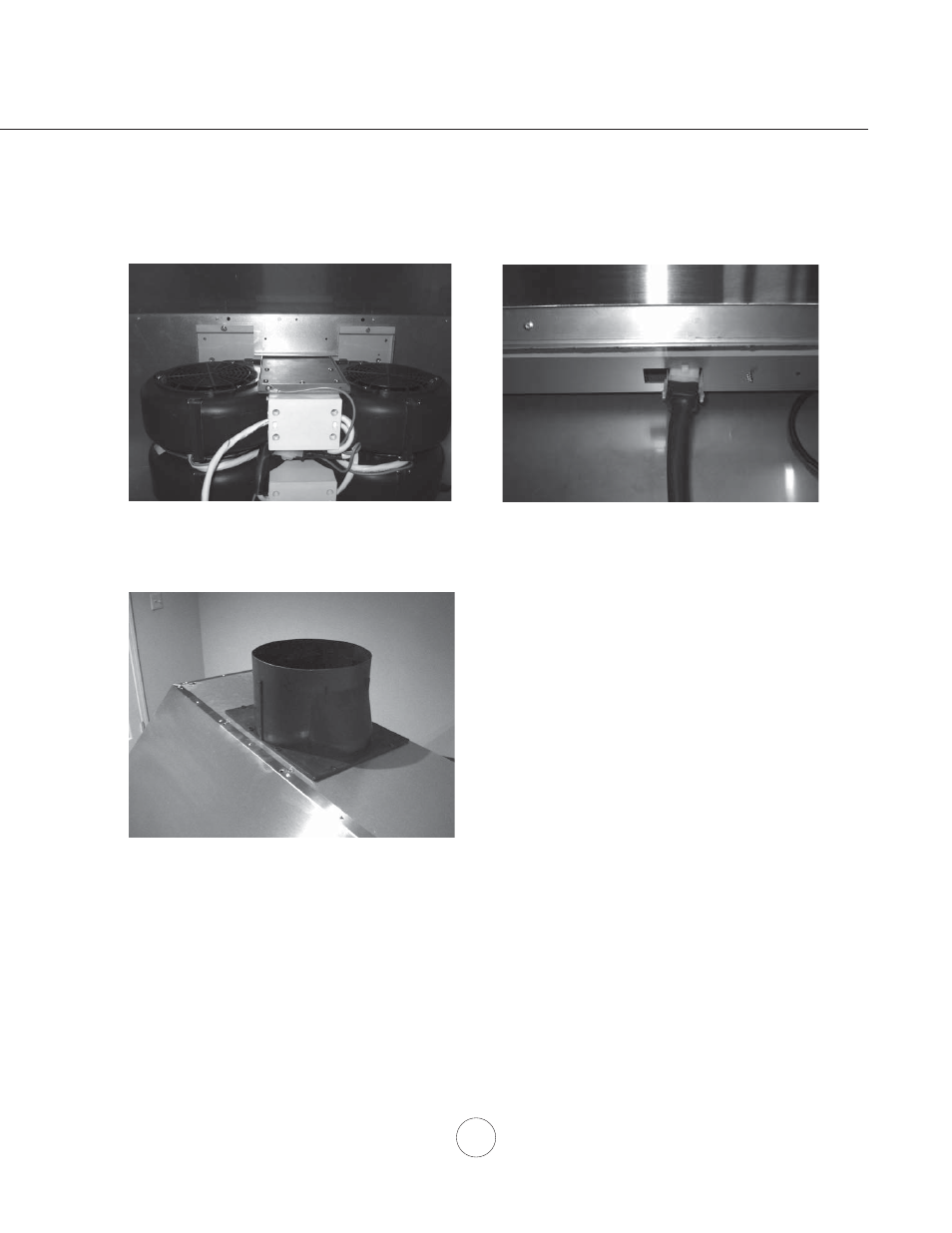

CBI-600B AND PBI-1100A BLOWER INSTALLATION

1. Position blower plate over bracket on inside

back of hood and pivot up. Secure plate to hood
with (2) 10x3/16” screws. (blower pictured is a
PBI-1100A)

2. Connect male end of blower wire to female plug

in the hood. (plug is located inside the hood
behind the control panel)

3. Single Blower – Connect 6” round duct work to

blower collar.
Dual Blower – Place 10” round adapter on top of
hood and secure with (4) M4x8 screws.
Connect 10” round duct work to 10” round
adapter.

Installation –

Single and Dual Internal Blowers
