5. Lift assembled unit and attach all (4) angle brackets to ceiling bracket. Make sure the tabs on each angle
brackets are facing the outside. The angle brackets will fit between the slots on the ceiling bracket. One half of
the angle bracket will be on the outside of the ceiling bracket and the other half will be on the inside of the ceiling

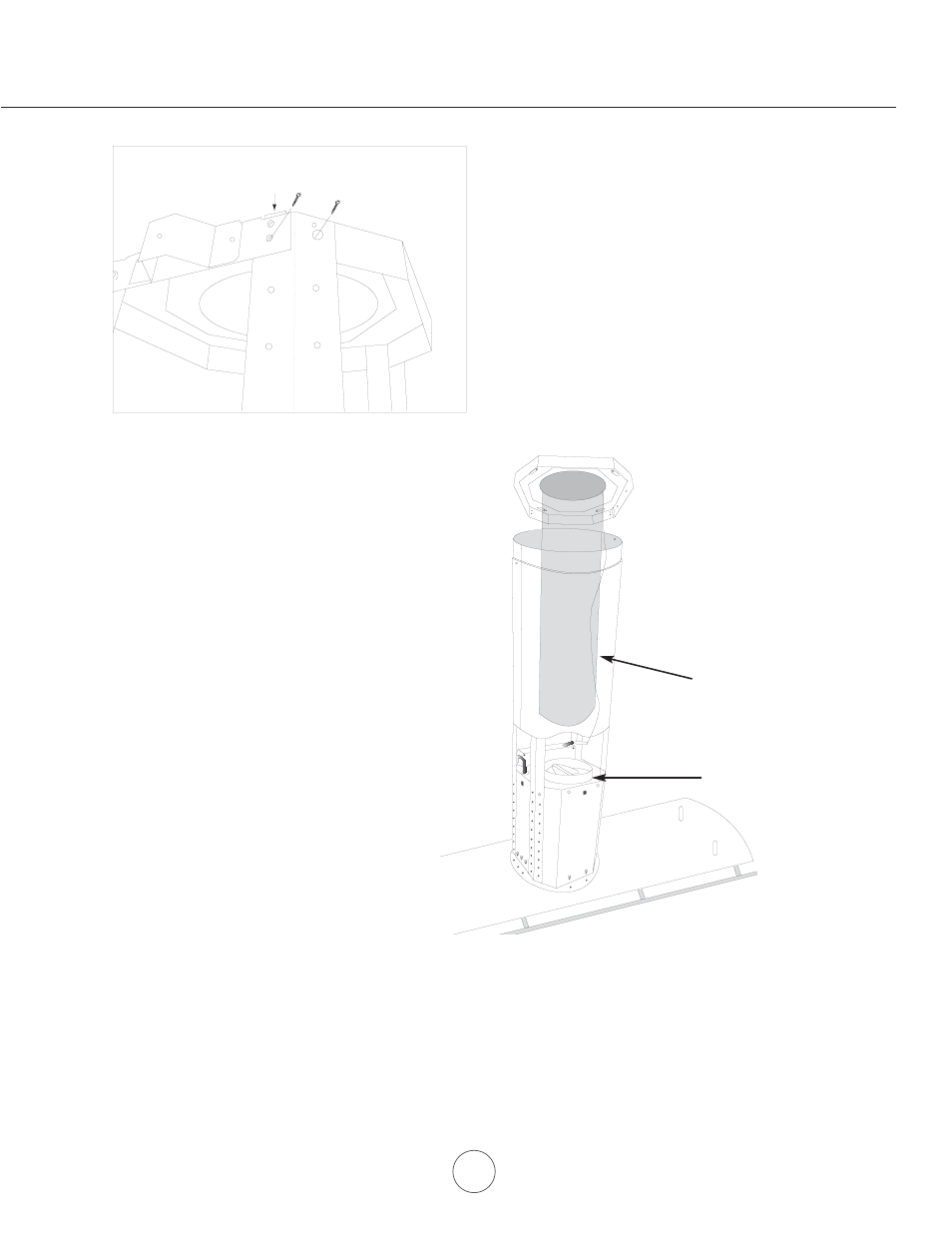

bracket. Attach using provided1/2” self tapping screws. Re fer to diagram [a].
6. Slide duct covers up and attach duct work and electrical wiring to top of motor housing. Refer to diagram [b].
Ductwork
Electrical wiring
Tab
[a]
[b]
