Yard Machines 410 User Manual
Page 16
16

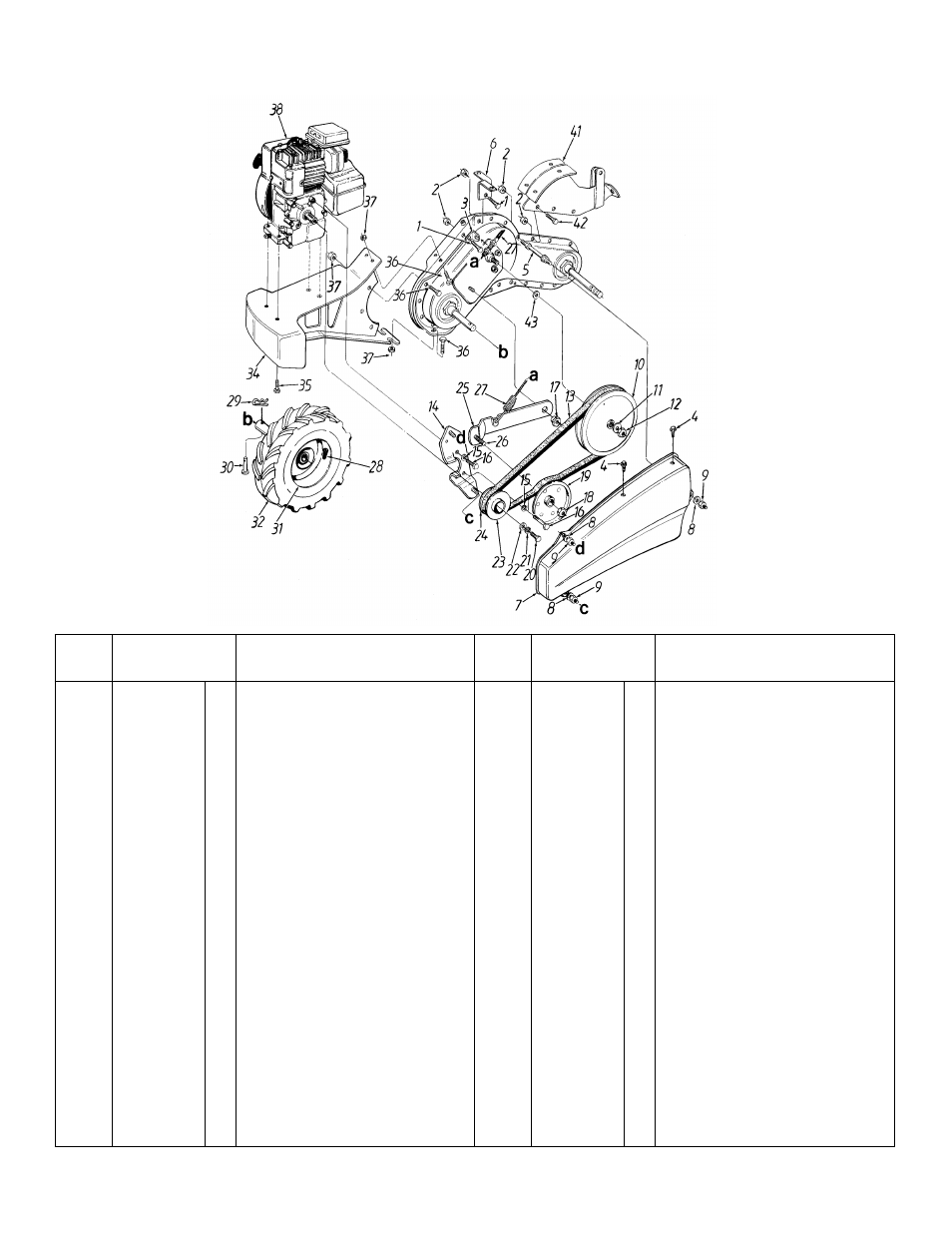

Models 410, 415, 420
REF.
NO.
PART NO.
DESCRIPTION
1
710-0118
Hex Bolt 5/16-18 x .75" Lg.
2
712-3004A
Hex Top L-Nut 5/16-18 Thd.
3
786-0107
Cable Mtg. Bracket
4
710-1017
Torx Mach. AB-Tap Scr. 1/4 x .6" Lg
5
738-0899
Belt Cover Bolt
6
786-0117
Shift Cover Bracket
7
786-0100
Belt Cover
8
736-0142
Fl-Wash. .281" I.D. x .5" O.D.
9
712-0392
Hex Cap Nut 1/4-28 Thd.
10
756-0634
Flat Pulley 8" O.D.
11
736-0105
Bell-Wash. .38" I.D. x .88" O.D.
12
712-0379
Hex Flange Nut.
13
754-0438
“V”-Belt
14
686-0031
Belt Keeper Brkt.
15
736-0119
L-Wash. 5/16" I.D.
16
710-0237
Hex Bolt 5/16-24 x .62" Lg.
17
738-0876
Shld. Nut
18
712-0266
Hex Jam L-Nut 3/8-16 Thd.
19
756-0405
Fl-Idler w/Flanges
20
710-0152
Hex Bolt 3/8-24 x 1" Lg.
21
736-0217
L-Wash. 3/8" I.D.
22
736-0258
Fl-Wash. 3/8" I.D. x 1" O.D.
23
756-0972
Outer Engine Pulley Half
24
756-0971
Inner Engine Pulley Half
25
786-0080
Idler Bracket
26
710-0723
Hex Bolt 3/8-16 x 1.25" Lg.
27
746-0916
Clutch Cable
28
734-0255
Air Valve
29
714-0104
Hairpin Clip
30
711-1017
Clevis Pin
31
634-0112
Rim Only (410)
634-0108
Rim Only (420)
32
634-0110
Wheel Ass’y. Comp.—R.H. (410)
634-0111
Wheel Ass’y. Comp.—L.H. (410)
634-0106
Wheel Ass’y. Comp.—R.H. (420)
634-0107
Wheel Ass’y. Comp.—L.H. (420)
734-1796
Tire Only (410)
734-0808
Tire Only (420)
34
619-0009
Frame Counterweight
35
710-1007
Hex TT-Tap Scr. 3/8-16 Thd.
36
710-3002
Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)
37
712-3004A
Hex Flange L-Nut 5/16-18 Thd.
38
—
Engine
41
686-0043A
Tine Shield Brkt. Ass’y.
42
710-3038
Hex Bolt 5/16-18 x 7/8" Lg.
43
736-0256
Wash. Fl..635 I.D. x .930 O.D. x .03
REF.
NO.
PART NO.
DESCRIPTION
