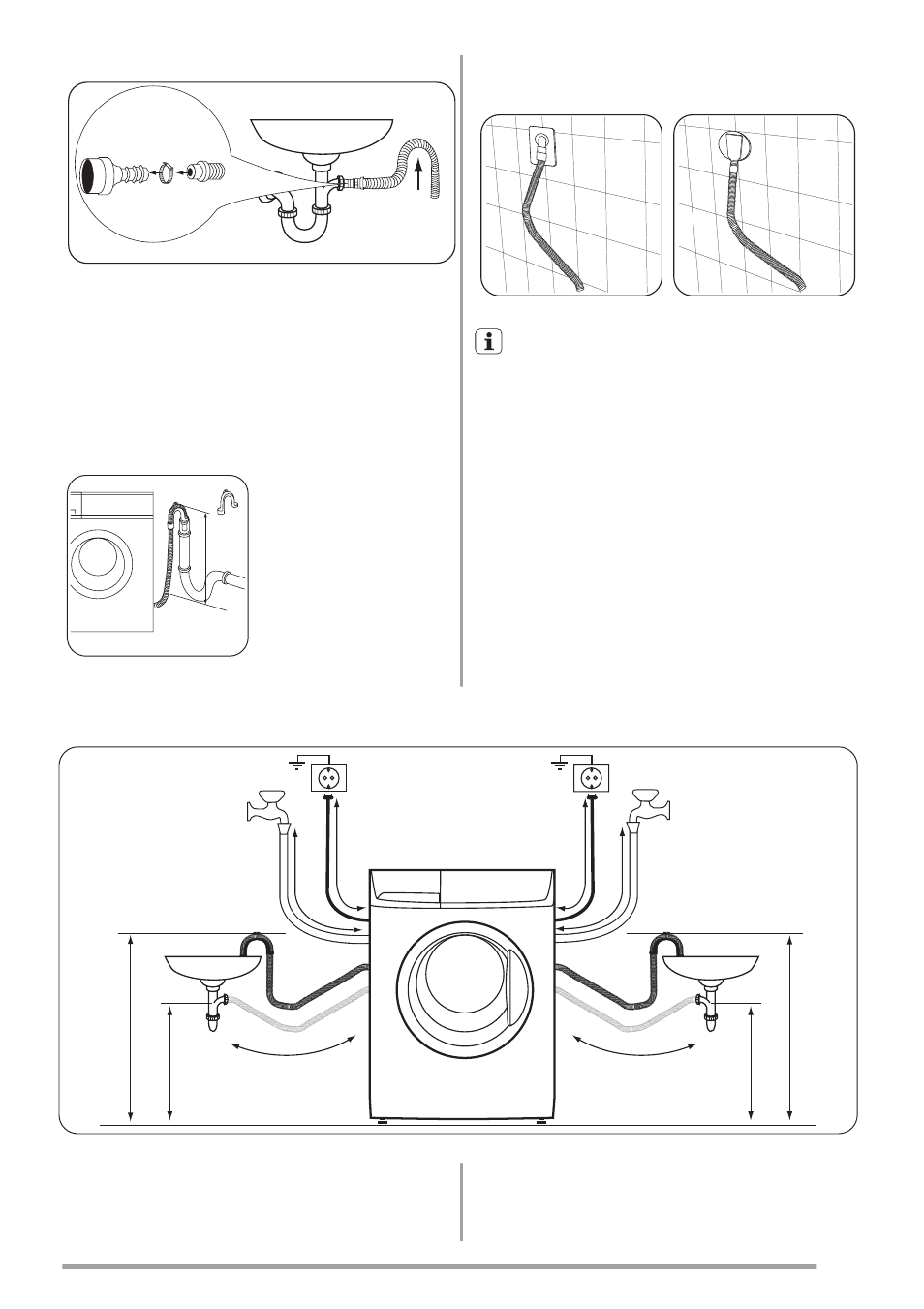

Push the drain hose onto the spigot and secure with a
clip, ensure a loop is formed in the drain hose to pre-
vent waste from the sink entering the appliance.
If the outlet spigot has not been used before, remove
any blanking plug that may be in place.
• Directly into a drain pipe at a height of not less than
60 cm and not more than 100 cm.
MAX 100cm
The end of the drain hose
must always be ventilated,
i.e. the inside diameter of
the drain pipe must be
larger than the outside di-
ameter of the drain hose.
The drain hose must not
be kinked.
• Directly to a built-in drain pipe in the room wall.
The drain hose may be extended to a maximum of 4
metres. An additional drain hose and joining piece
is available from your Local Centre.
Connections overview
115 cm 140 cm
m c 150 m c 100
max 100 cm min. 60 cm max 100 cm min. 60 cm
m c 9 0 m c 115
Electrical connection
• The appliance must be earthed.
• Make sure that the electrical information on the rating
plate agree with your domestic power supply.
