14

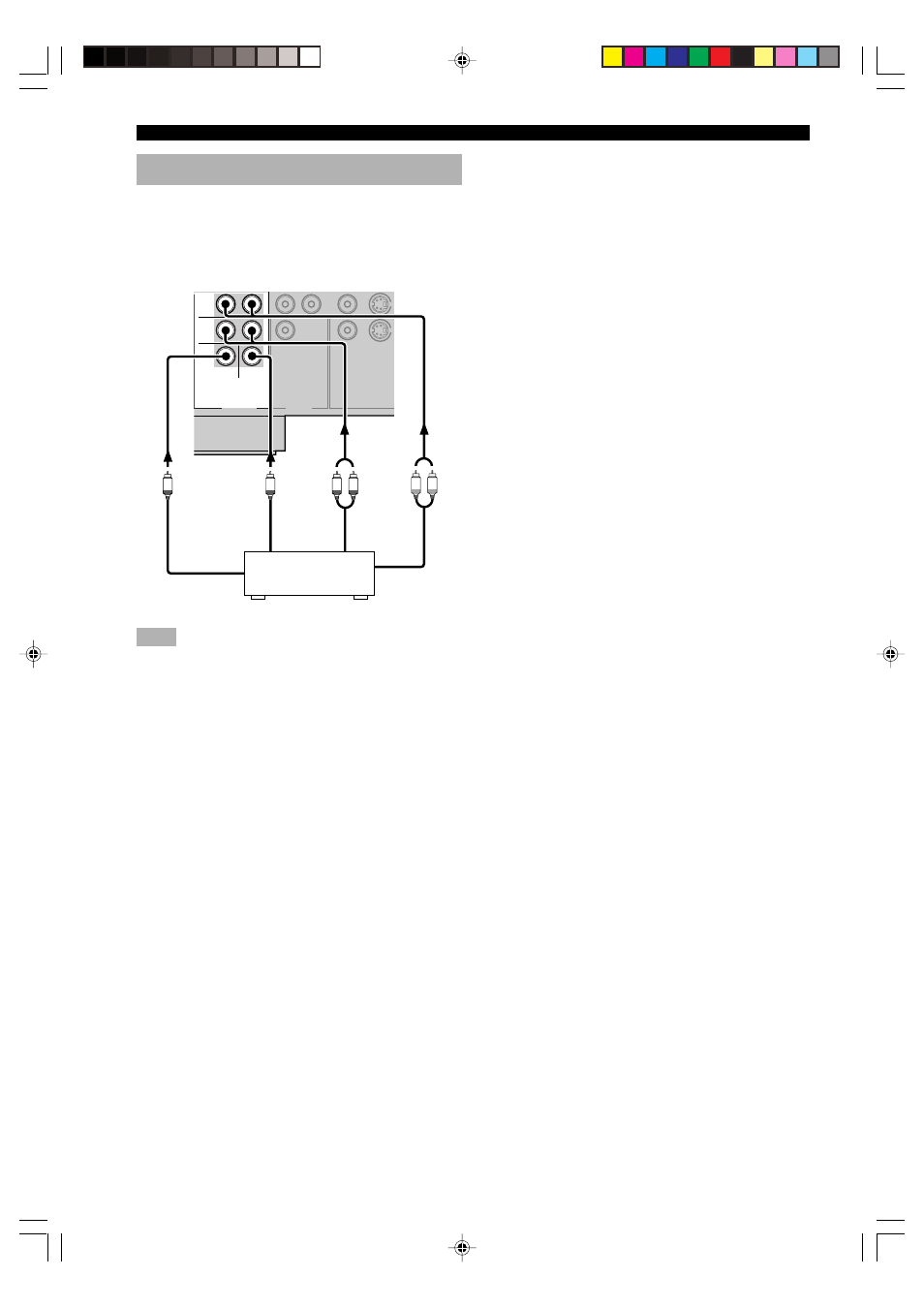

Connecting an external decoder
This unit is equipped with 6 additional input jacks (MAIN
left and right, CENTER, SURROUND left and right and
SUBWOOFER) for discrete multi-channel input from a
component equipped with a multi-channel decoder and 6
channel output jacks such as a DVD/SACD player.
Note
• When you select 6CH INPUT as the input source, the unit
automatically turns off the digital sound field processor, and
you cannot use DSP programs.
CONNECTIONS
DVD/SACD player
OUTPUT
SUB
WOOFER
VCR
OUT
MONITOR OUT
S VIDEO VIDEO
6CH INPUT
CENTER
SUB
WOOFER
SURROUND
MAIN
L R L R
SUBWOOFER MAIN
CENTER SURROUND
