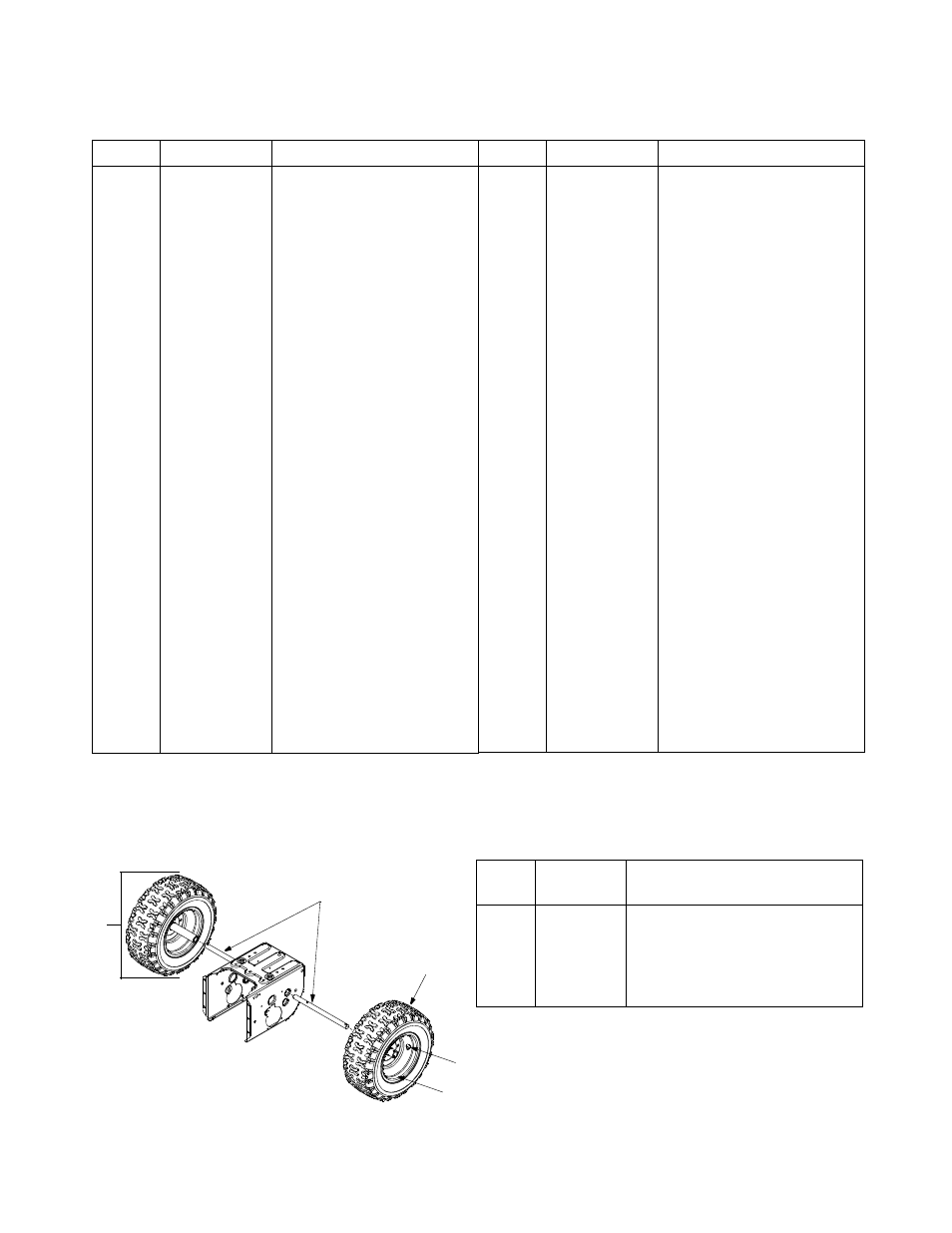

MODEL 31AH553G401
Ref. No.
Part No.
Part Description
1.
618-0043
Dogg Assembly: RH
2.
618-0044
Dogg Assembly: LH
3.
618-0303B
Drive Shaft Assembly
4.
656-0012A
Friction Wheel: Disc Assembly
5.
684-0014B
Shift Rod Assembly
6.
684-0042C
Bearing: Friction Wheel
7.
684-0131A
Support Bracket: Friction Wheel
8.
710-0599
TT Screw: 1/4-20 x 0.5”
9.
710--0809
TT Screw: 1/4-20 x 1.25”
10.
710-1652
TT Screw: 1/4-20 x 0.625”
11.
711-1267
Hex Shaft
12.
711-1268
Drive Shaft: Actr.
13.
711-1364
Clevis Pin
14.
712-0703
Nut Insert
15.
712-0711
Jam Nut
16.
712-3017
Jam Nut
17.
713-0233
Chain
18.
713-0374
Chain
19.
713-0413
Sprocket: 10T
20.
713-0472
Sprocket: 23T
21.
714-0104
Hairpin Clip
22.
714-0474
Cotter Pin
23.
716-0102
Snap Ring
24.
721-0263
Loctite™ Adhesive
25.
732-0209
Extension Spring
26.
732-0264
Extension Spring
27.
736-0105
Spring Washer
28.
736-0142
Flat Washer
29.
736-0160
Flat Washer
30.
736-0169
Lock Washer
31.
736-0351
Flat Washer
32.
736-0626
Flat Washer
33.
737-0170
6-in-1 Lubricant
34.
737-0318
Grease
35.
738-0924
Carriage Screw
36.
741-0598
Hex Flange Bearing
37.
741-0600
Ball Bearing
38.
741-1111
Hex Flange Bearing
39.
746-0897
Auger Clutch Cable
40.
746-0898
Drive Clutch Cable
41.
746-0956
Steering Cable
42.
748-0190
Spacer
43.
750-1161A
Support Tube: Axle
44.
750-1162
Spacer
45.
756-0625
Roller: Cable
46.
784-5590
Shift Bracket: Frame
47.
784-5687A
Cable Guide Bracket: Auger
48.
784-5689A
Front Support Bracket: Auger
Clutch Cable Guide
49.
784-5730A
Drive Shaft Retainer RH
50.
784-5731A
Frame Housing
51.
784-5732
Frame Cover
52.
784-5733
Bracket: Drive Cable Roller
53.
784-5740
Drive Shaft Retainer LH
54.
710-1233
Oval C-Sunk Screw
55.
712-0127
Weld Nut
56.
725-0157
Cable Tie
57.
746-0950
Steering Control
Ref. No.
Part No.
Part Description
1
2
3
5
4
Ref.
No.
Part No.
Part Description
1.
734-1709
Wheel Assy Comp: 16.5” x 4.8”
2.
738-0994A
Axle: .75” dia. x 12.201” Lg.
3.
734-1530
Tire, Snow Hog, 16.5 x 4.8 - 4
4.
734-1708
Rim Assembly
5.
734-0255
Tubeless Air Valve
