Installa
tion - In
ternal Blo
w
e
r

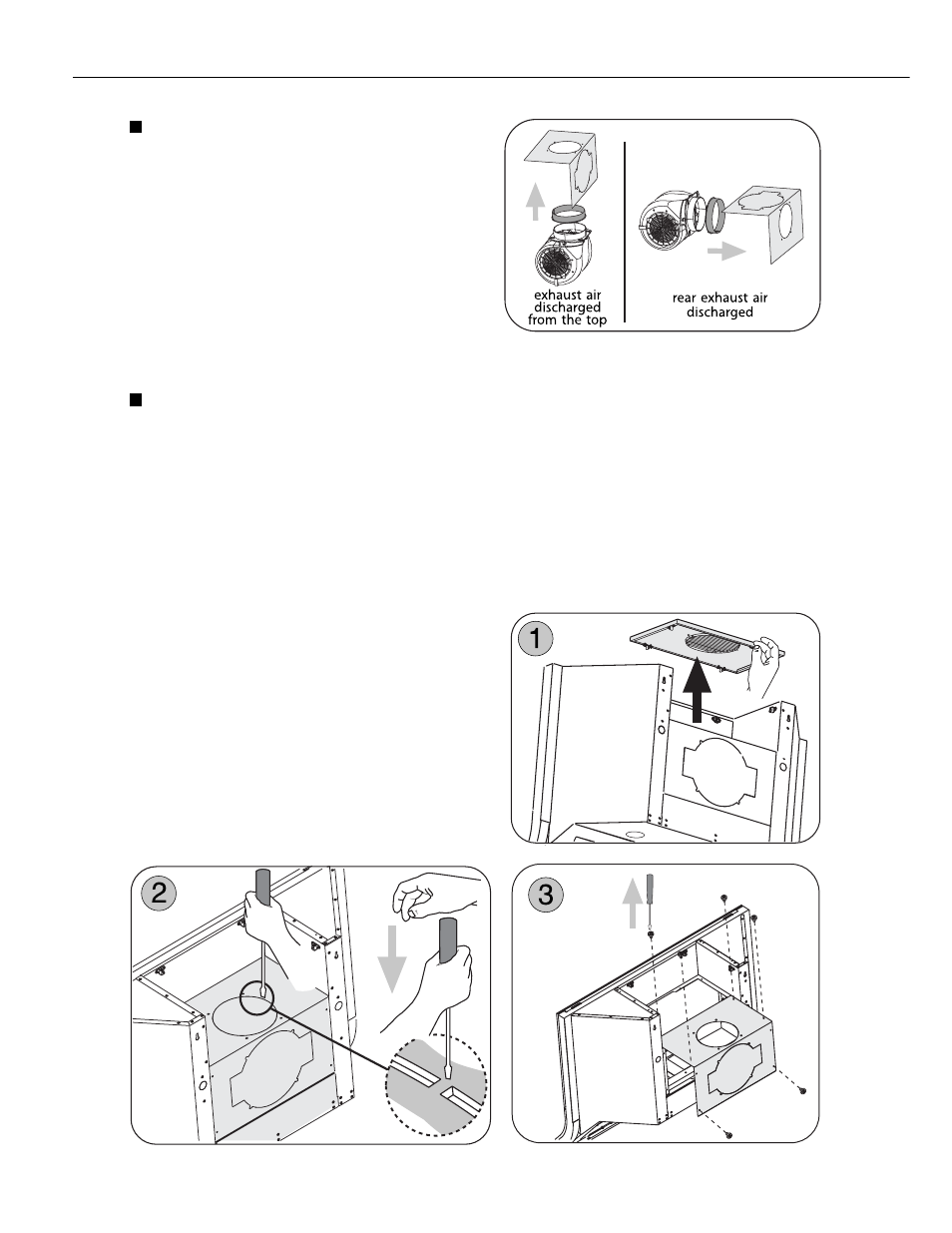

NOTE! The device in this version (with
internal suction blower) is equipped for
rear discharge of exhaust air. However,
if required, it is possible to have the
exhaust air discharged from the top.
This can be accomplished by carrying
out the steps indicated in the following
paragraphs; upon reaching step 4, the
motor plate must not be rotated.
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of fi re and electric shock, install this range-
hood only with internal blower models MT-020 provided with the kit code
CBI-600A.
For external and in-line blower preparation please turn to page 13.
1. Unclip the top cover. Fig.1
2. Remove the 6” round metal knockout
plate from the blower plate by using a
fl at head screwdriver. See.Fig.2
3. Remove the (6) screws securing the blo-
wer plate to the blower housing and re-
move blower plate. See. Fig.3
- 10 -
